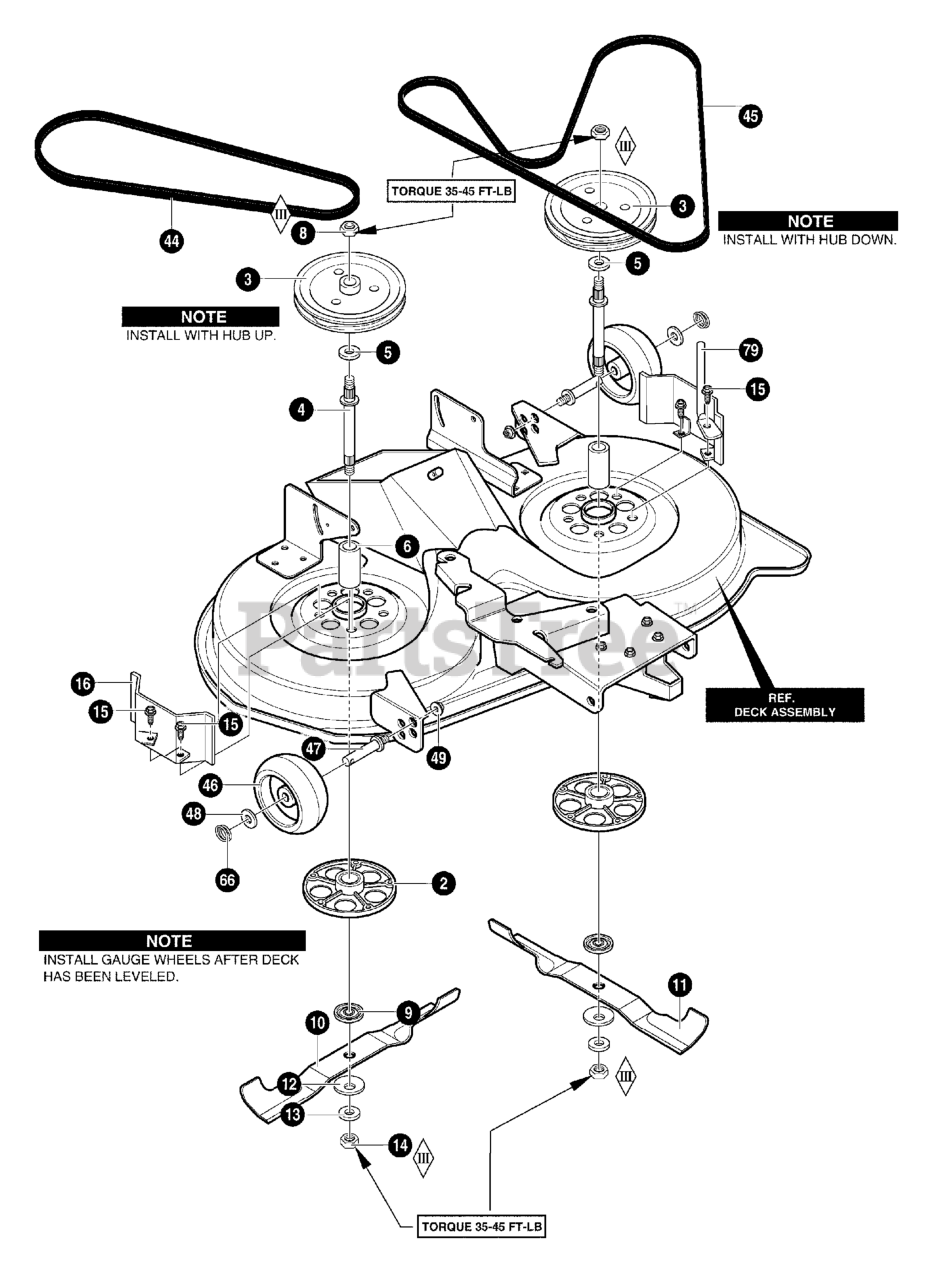

40379x88 - Murray 40" Lawn Tractor (2000) Blades & Belts Parts Diagram

40" Lawn Tractor

Blades & Belts Parts Diagram

  • Title
2

Murray 094305

ASM. JACKSHAFT HOUSING W/VENTS

$112.99

$

Usually ships in 2-12 days

0

3

Murray 690020MA

PULLEY, DECK

$67.99

$

In Stock, only 2 left!

0

4

Murray 091922MA

JACKSHAFT 7.76LG-9/16-18TH
(Superseded to 491922MA)

$22.99

$

In Stock, only 1 left!

0

5

Murray 710117

WASHER, FLAT .625X1.00X.188

$3.99

$

Usually ships in 2-12 days

0

6

Murray 091903MA

SPACER, .625X.875Z1.91

$5.49

$

Usually ships in 2-12 days

0

8

Murray 711910

NUT, 9/16-18 CTRLK

$

$

Currently unavailable

9

Murray 94207MA

ADAPTER, DECK/BLADE

$23.99

$

Usually ships in 2-12 days

0

10

Murray 690499

BLADE LH
(Superseded to 698454)

$47.99

$

Usually ships in 2-12 days

0

11

Murray 690500

BLADE RH

$4.49

$

Usually ships in 2-12 days

0

12

Murray 710118

WASHER, BELLVIL .625X1.75

$

$

Currently unavailable

13

Murray 710117

WASHER, FLAT .625X1.00X.188

$3.99

$

Usually ships in 2-12 days

0

14

Murray 711910

NUT, 9/16-18 CTRLK

$

$

Currently unavailable

15

Murray 711911

SCREW, 3/8-16 x 1.00

$

$

Currently unavailable

16

Murray 94288-853

PULLEY COVER

$

$

Currently unavailable

44

Murray 710231

BELT V46.5LG

$155.99

$

Usually ships in 2-12 days

0

45

Murray 690071

BELT, V

$

$

Currently unavailable

46

Murray 092683MA

WHEEL, GAUGE

$15.99

$

In Stock, only 3 left!

0

47

Murray 711746

BOLT,HHSH 3/8-16X.63

$7.99

$

Usually ships in 2-12 days

0

48

Murray 711615MA

FLATWASHER, .518X.87X.16

$1.99

$

Usually ships in 2-12 days

0

49

Murray 711622

NUT, 3/8-16 HWDFLLK WHIZ

$

$

Currently unavailable

66

Murray 711764MA

CIRCLE PIN
(Superseded to 031X11MA)

$4.49

$

In Stock, only 2 left!

0

79

Murray 95280

ZINC ROD BELT GUIDE

$

$

Currently unavailable
