40379x88 - Murray 40" Lawn Tractor (2000) Blade Housing Assembly Parts Diagram

40" Lawn Tractor

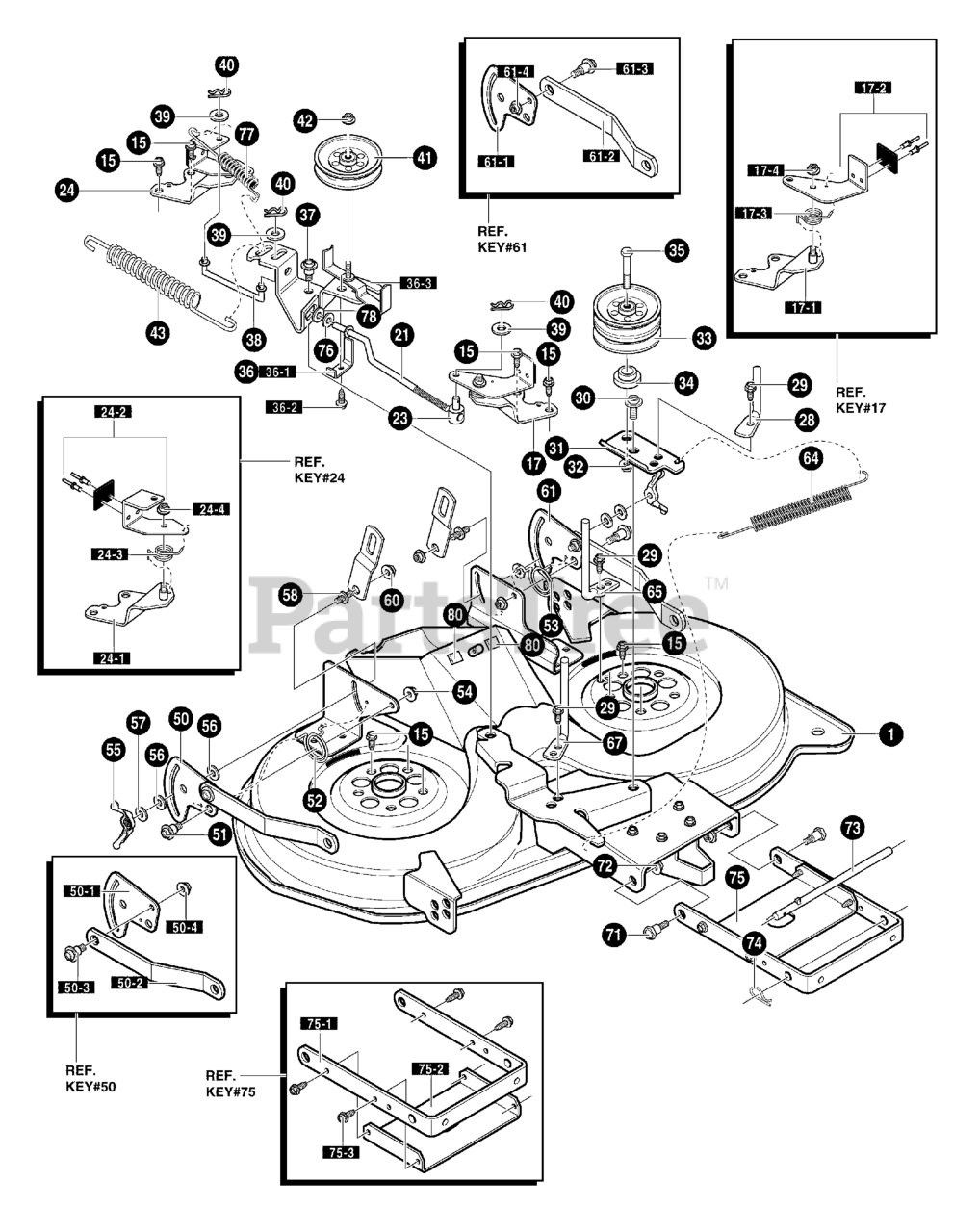

Blade Housing Assembly Parts Diagram

  • Title

1

Murray 690109-853

MOWER DECK REBA

$

$

Currently unavailable

15

Murray 711911

SCREW, 3/8-16 x 1.00 WAHHSPTAP

$

$

Currently unavailable

17

Murray 94665-853

BRAKE ARM ASSEMBLY LH

$

$

Currently unavailable

17-1

Murray 94293

BRAKE SUPPORT ASSEMBLY LH
(Superseded to 94293GS)

$67.99

$

Usually ships in 2-12 days

0

17-2

Murray 94291

BRAKE ARM ASSEMBLY LH

$24.99

$

Usually ships in 2-12 days

0

17-3

Murray 710110

SPRING, TORSION

$

$

Not available

17-4

Murray 710205

NUT, 5/16-18 WDFLLK

$14.99

$

In Stock, only 1 left!

0

21

Murray 690021

LINK, BRAKE LH
(Superseded to 799063)

$91.99

$

In Stock, only 4 left!

0

23

Murray 711591

NUT, ADJUSTING

$335.99

$

Usually ships in 2-12 days

0

24

Murray 94664-853

BRAKE ARM ASSEMBLY RH

$

$

Currently unavailable

24-1

Murray 94294

BRAKE SUPPORT ASSEMBLY RH
(Superseded to 94294GS)

$15.99

$

Usually ships in 2-12 days

0

24-2

Murray 94292

BRAKE ARM ASSEMBLY RH
(Superseded to 690327)

$4.99

$

Usually ships in 2-12 days

0

24-3

Murray 710077

SPRING, TORSION .75IX.50X.166

$

$

Currently unavailable

24-4

Murray 710205

NUT, 5/16-18 WDFLLK

$14.99

$

In Stock, only 1 left!

0

28

Murray 711912MA

BELT GUIDE

$34.99

$

Usually ships in 2-12 days

0

29

Murray 780055MA

SCREW, 5/16-18 x 0.50
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

30

Murray 711613MA

BOLT, .50X.75 HHSH 3/8-16

$1.99

$

Usually ships in 2-12 days

0

31

Murray 94261-853

ARM, DOUBLE IDLER

$

$

Currently unavailable

32

Murray 711622

NUT, 3/8-16 HWDFLLK MACK

$

$

Currently unavailable

33

Murray 94279MA

PULLEY, IDLER DOUBLE VEE

$

$

Not available

34

Murray 94269MA

SPACER, DECK

$6.99

$

Usually ships in 2-12 days

0

35

Murray 711915

SCREW, 3/8-16 x 3.00

$

$

Currently unavailable

36

Murray 94973-853

IDLER ARM ASSY

$

$

Currently unavailable

36-1

Murray 94312

SPRING - BELT GUIDE
(Superseded to 94312GS)

$280.99

$

Usually ships in 2-12 days

0

36-2

Murray 710264

SCREW 1/4-20X.50 WAHHTAP

$

$

Not available

36-3

Murray 94298

IDLER ARM ASSEMBLY
(Superseded to 690330)

$3.49

$

In Stock, only 2 left!

0

37

Murray 711613MA

BOLT, .50X.75 HHSH 3/8-16

$1.99

$

Usually ships in 2-12 days

0

38

Murray 690023

LINK, BRAKE RH

$28.99

$

In Stock, Qty 9

0

39

Murray 712480MA

WASHER, FLAT

$18.99

$

Usually ships in 2-12 days

0

40

Murray 711682MA

PIN, HAIR .38 DIA.X1.64LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

41

Murray 690024

PULLEY, V IDLER 4"

$27.99

$

Usually ships in 2-12 days

0

42

Murray 711622

NUT, 3/8-16HWDFLLK MACK

$

$

Currently unavailable

43

Murray 710234

SPRING, EXTN 5.40X.714OD

$4.99

$

Usually ships in 2-12 days

0

50

Murray 690158-853

ASM. PLATE, REAR SUS. BRKT, RH

$

$

Currently unavailable

50-1

Murray 94128

PLATE-SUSPENSION
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

50-2

Murray 94055

SUSPENSION BRKT REAR

$

$

Currently unavailable

50-3

Murray 710095

BOLT, SHOULDER 3/8-16

$4.99

$

Usually ships in 2-12 days

0

50-4

Murray 710140

NUT, 3/8-16 HWDFLLK MACK

$10.99

$

Usually ships in 2-12 days

0

51

Murray 711611

BOLT, SHOULDER .375

$1.49

$

Usually ships in 2-12 days

0

52

Murray 710112

SPRING, TORSION .68LG RH

$11.99

$

In Stock, only 2 left!

0

53

Murray 710113

SPRING, TORSION .68LG LH

$

$

Not available

54

Murray 711622

NUT, 3/8-16 HWDFLLK MACK

$

$

Currently unavailable

55

Murray 711600

WINGNUT, 5/16-18 YZ

$

$

Currently unavailable

56

Murray 094137MA

PAD, FRICTION

$6.99

$

In Stock, Qty 8

0

57

Murray 711628MA

WASHER
(Superseded to 017X45MA)

$

$

Not available

58

Murray 711595

PIN, HANGER

$

$

Not available

60

Murray 711622

NUT, 3/8-16 HWDFLLK MACK

$

$

Currently unavailable

61

Murray 690159-853

ASM. PLATE, REAR SUS. BRKT LH

$

$

Currently unavailable

61-1

Murray 94128

PLATE - SUSPENSION
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

61-2

Murray 94055

SUSPENSION BRKT REAR

$

$

Currently unavailable

61-3

Murray 710095

BOLT, SHOULDER 3/8-16

$4.99

$

Usually ships in 2-12 days

0

61-4

Murray 710140

NUT, 3/8-16 HWDFLLK MACK

$10.99

$

Usually ships in 2-12 days

0

64

Murray 710233

SPRING, EXTN 4.20X.750D

$7.99

$

In Stock, only 1 left!

0

65

Murray 711913MA

GUIDE, BELT

$36.99

$

Usually ships in 2-12 days

0

67

Murray 690030

GUIDE, BELT

$

$

Currently unavailable

71

Murray 711611

BOLT, SHOULDER .375

$1.49

$

Usually ships in 2-12 days

0

72

Murray 711622

NUT, 3/8-16 HWDFLLK MACK

$

$

Currently unavailable

73

Murray 95295

ZINC ROD, HANGER

$

$

Currently unavailable

74

Murray 711676

PIN, HAIR

$

$

Currently unavailable

75

Murray 690058-853

SUB. ASM. BRKT & STIFFNER

$

$

Currently unavailable

75-1

Murray 94058

BRACKET, FRONT SUSPENSION

$3.99

$

Usually ships in 2-12 days

0

75-2

Murray 95057

STIFFENER, DECK

$

$

Currently unavailable

75-3

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

76

Murray 583409MA

WASHER, FLAT

$4.49

$

Usually ships in 2-12 days

0

77

Murray 710658

SPRING, EXTENSION 1.94LG

$42.99

$

Usually ships in 2-12 days

0

78

Murray 712480MA

WASHER, FLAT INSULATE

$18.99

$

Usually ships in 2-12 days

0

80

Murray 318197

PAD, ADHESIVE 1.00X1.50X.12

$1.99

$

Usually ships in 2-12 days

0
