40379x68A - Murray 40" Lawn Tractor (2001) Axle Assembly Parts Diagram

40" Lawn Tractor

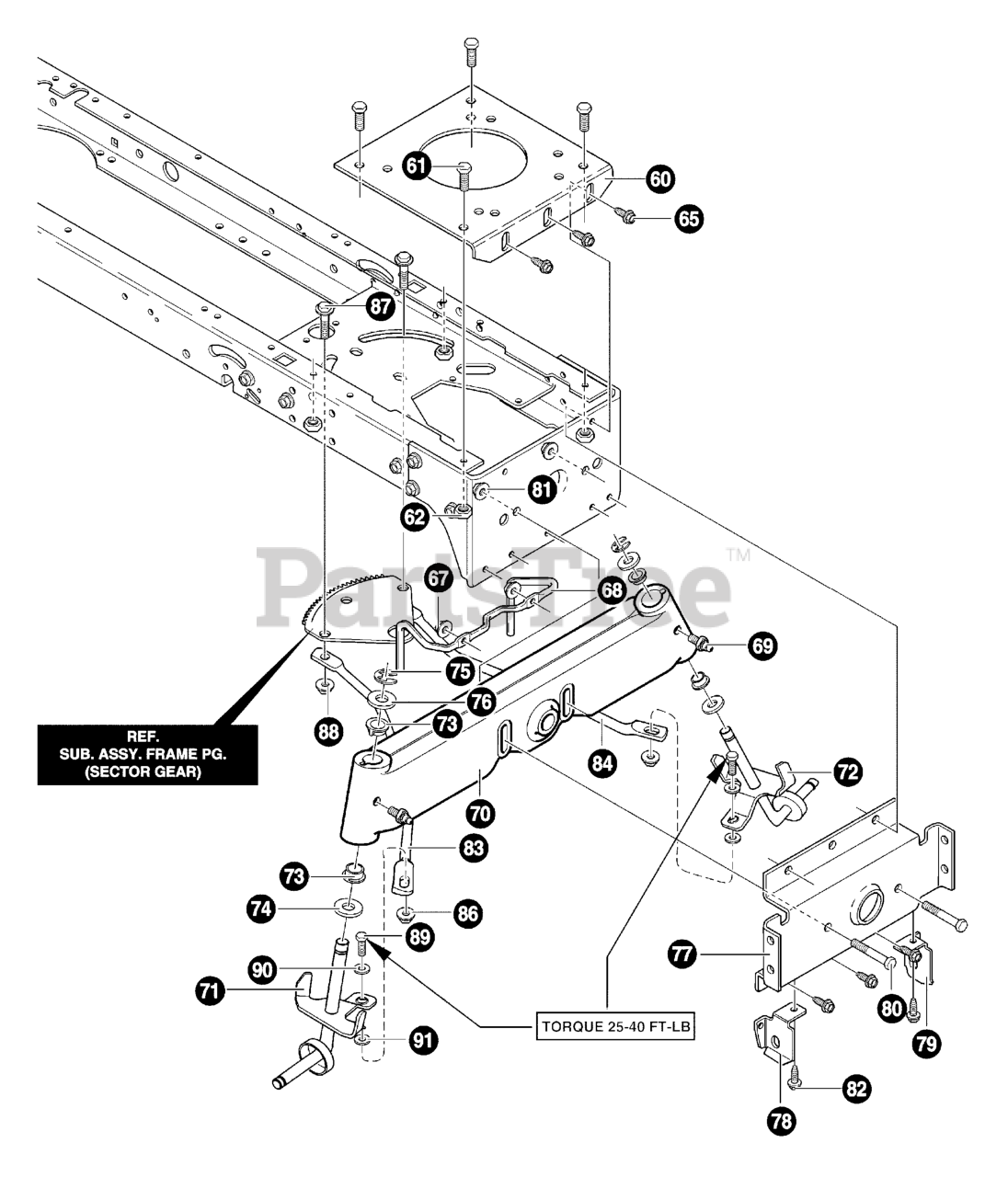

Axle Assembly Parts Diagram

  • Title
60

Murray 94006

PLATE, ENGINE

$

$

Currently unavailable

61

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

62

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

65

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

67

Murray 015X79MA

NUT, 5/16-18 HEX
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

68

Murray 94310

GUIDE-STACK PULLEY BELT

$7.99

$

Usually ships in 2-12 days

0

69

Murray 706

ZERK, GREASE FITTING

$2.49

$

Usually ships in 2-12 days

0

70

Murray 95405

AXLE, CAST MACHINED

$

$

Currently unavailable

71

Murray 95182

SPINDLE, LONG RH

$

$

Currently unavailable

72

Murray 95183

SPINDLE, LONG LH

$

$

Currently unavailable

73

Murray 092527MA

BEARING, SPINDLE

$6.49

$

In Stock, only 4 left!

0

74

$3.99

$

In Stock, only 2 left!

0

75

$5.49

$

In Stock, Qty 20+

0

76

Murray 17X195MA

WASHER, FLAT

$4.99

$

In Stock, only 4 left!

0

77

Murray 94007

HANGER, AXLE

$

$

Currently unavailable

78

Murray 690199

HANGER, DECK RH

$

$

Currently unavailable

79

Murray 690198

HANGER, DECK LH

$

$

Currently unavailable

80

Murray 180113MA

SCREW 5/16-18X3.00

$3.99

$

Usually ships in 2-12 days

0

81

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

82

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

83

Murray 95329

DRAG LINK LH

$

$

Currently unavailable

84

Murray 95328

DRAG LINK RH

$

$

Currently unavailable

86

Murray 015X84MA

NUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

87

Murray 009X57MA

BOLT, HHSH

$9.99

$

In Stock, Qty 11

0

88

Murray 015X84MA

NUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

89

Murray 01X111MA

SCREW, 3/8-16 x 1.50

$4.49

$

In Stock, only 1 left!

0

90

Murray 17X104MA

WASHER, FLAT
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

91

Murray 017X53MA

WASHER, FLAT
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0
