40378x11B - Murray 40" Lawn Tractor (2000) Rear Chassis Assembly (part 1) Parts Diagram

40" Lawn Tractor

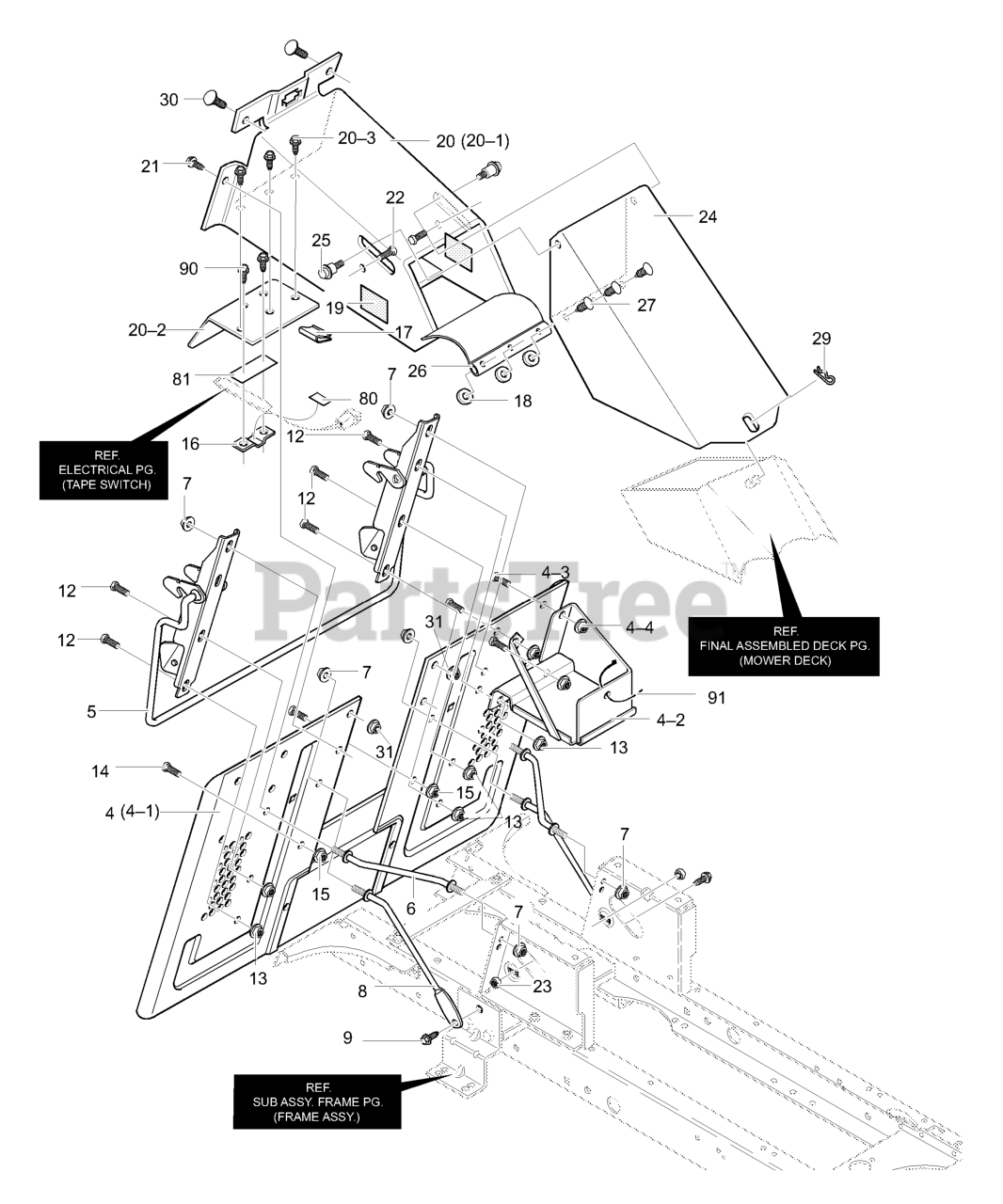

Rear Chassis Assembly (part 1) Parts Diagram

  • Title
4

Murray MU343678-853

ASSEMBLY, Back Plate/Battery

$

$

Currently unavailable

4-1

Murray MU95162

ASSEMBLY Back Plate Flat

$

$

Currently unavailable

4-2

Murray MU94563

Battery Tray Assembly

$

$

Currently unavailable

4-3

Murray MU180073

SCREW, 5/16-18 x 0.50

$

$

Currently unavailable

4-4

Murray MU45174

NUT, 5/16-18 Hexwdfllk

$

$

Currently unavailable

5

Murray MU95359-853

Weldment - Latch Lever

$

$

Currently unavailable

6

Murray MU690097

ROD, Brace

$

$

Currently unavailable

7

Murray MU711906

NUT, 3/8-16 Hwdfl Whiz-lock

$

$

Currently unavailable

8

Murray MU94231

ROD, Brace

$

$

Currently unavailable

9

Murray MU711606

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

12

Murray MU9357

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

13

Murray MU710026

NUT, 5/16-18 Hexwdfllk

$

$

Currently unavailable

14

Murray MU711606

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

15

Murray MU710026

NUT, 5/16-18 Hexwdfllk

$

$

Currently unavailable

16

Murray MU690245

BRACKET, Flex Switch Mting

$

$

Currently unavailable

17

Murray MU55939

Wire Clip, Adhesive

$

$

Currently unavailable

18

Murray MU711666

FLATWASHER

$

$

Currently unavailable

19

Murray MU318197

Pad, Adhesive

$

$

Currently unavailable

20

Murray MU690102-853

Asm., T/A Shield & Chute

$

$

Currently unavailable

20-1

Murray MU94350

CHUTE Weld Asm. Upper

$

$

Currently unavailable

20-2

Murray MU95367

SHIELD, Transaxle

$

$

Currently unavailable

20-3

Murray MU711642

SCREW, 1/4-20x.63

$

$

Currently unavailable

21

Murray MU711606

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

22

Murray MU340720

BOLT, Carriage 5/16-18x.75

$

$

Currently unavailable

23

Murray MU710026

NUT, 5/16-18

$

$

Currently unavailable

24

Murray MU94296-853

MIDDLE CHUTE ASSEMBLY

$

$

Currently unavailable

25

Murray MU009X57

BOLT, Shoulder

$

$

Currently unavailable

26

Murray MU94264

Flap, Chute

$

$

Currently unavailable

27

Murray MU309235

FASTENER, Ratchet

$

$

Currently unavailable

29

Murray MU711682

PIN, Hair

$

$

Currently unavailable

30

Murray MU340720

BOLT, Carriage 5/16-18x.75

$

$

Currently unavailable

31

Murray MU710026

NUT, 5/16-18

$

$

Currently unavailable

80

Murray MU712009

Tape, Dble Sided Foam 3/4"

$

$

Currently unavailable

81

Murray MU712009

Tape, Dble Sided Foam 3/4"

$

$

Currently unavailable

90

Murray MU711642

SCREW, 1/4-20x.63

$

$

Currently unavailable

91

Murray MU57444

Cable Tie

$

$

Currently unavailable
