40378x11B - Murray 40" Lawn Tractor (2000) Engine And Control Assembly Parts Diagram

40" Lawn Tractor

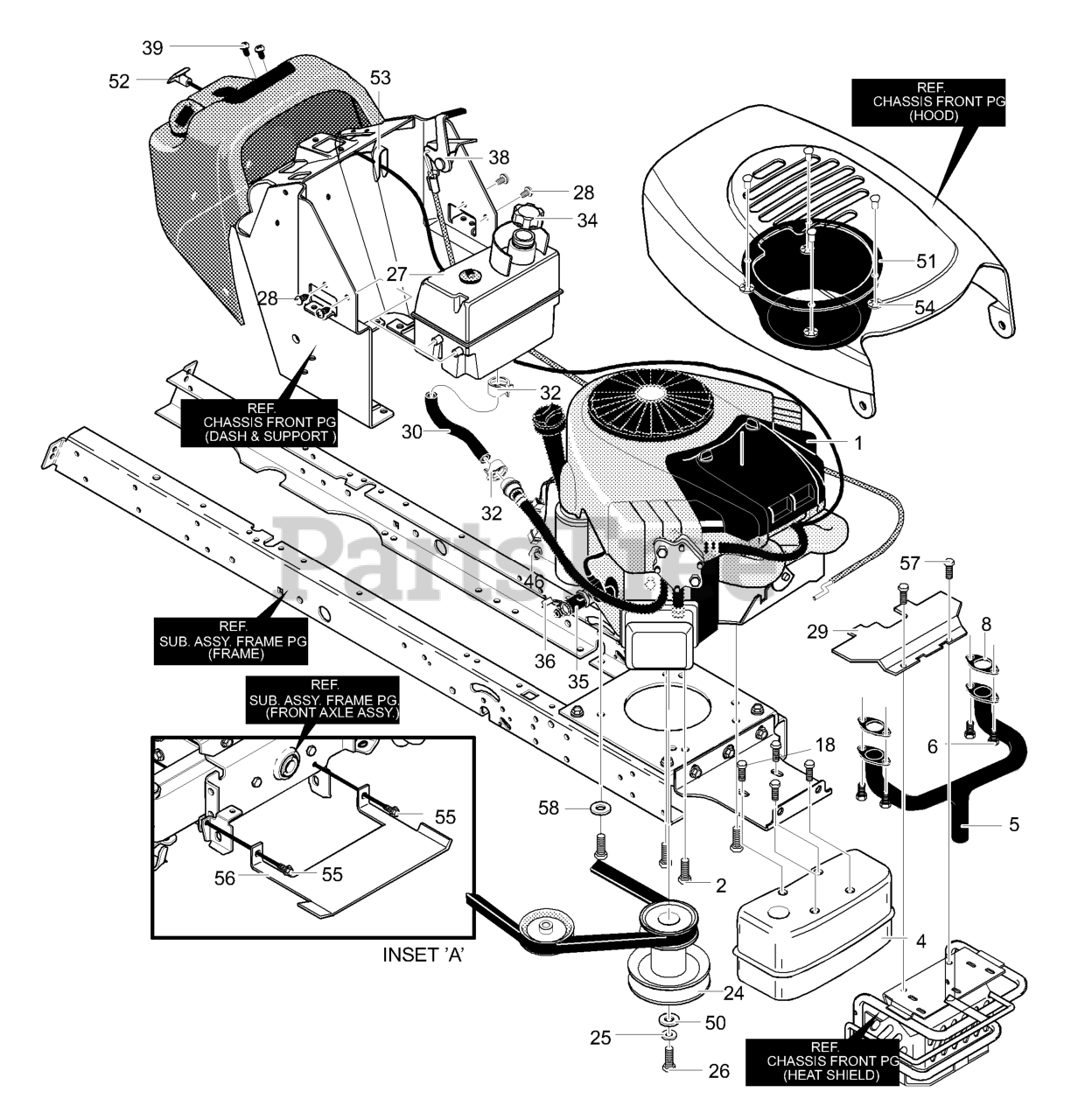

Engine And Control Assembly Parts Diagram

  • Title
1

Engine 19HP

Note: (See Engine Manual)

$

$

Not available

2

Murray MU0025X7

Engine Bolt 3/8x1.25

$

$

Currently unavailable

4

Murray MU94655

Muffler

$

$

Currently unavailable

5

Murray MU95204

Exhaust Tube

$

$

Currently unavailable

6

$

$

Currently unavailable

8

Murray MU711851

Exhaust Gasket

$

$

Currently unavailable

18

Murray MU711642

SCREW, 1/4-20x.63

$

$

Currently unavailable

19

Murray MU93077

SPACER, Sleeve

$

$

Currently unavailable

24

Murray MU690456

Stack Pulley Assembly

$

$

Currently unavailable

25

Murray MU120383

WASHER, Regsptlk

$

$

Currently unavailable

26

Murray MU1X169

BOLT, 7/16-20x1.75

$

$

Currently unavailable

27

Murray MU94484

Fuel Tank w/Sensor

$

$

Currently unavailable

28

Murray MU711681

SCREW, 15TPIX

$

$

Currently unavailable

29

Murray MU95250-853

Heat Shield

$

$

Currently unavailable

30

Murray MU41007

GAS LINE TUBING 14 In.

$

$

Currently unavailable

32

Murray MU336890

CLAMP, Fuel Line Yellow

$

$

Currently unavailable

34

Murray MU92317

Fuel Cap

$

$

Currently unavailable

35

Murray MU325547

Oil Drain Valve Assy.

$

$

Currently unavailable

36

Murray MU327422

Cap, Oil Drain Valve

$

$

Currently unavailable

38

Murray MU95261

Throttle Control

$

$

Currently unavailable

39

Murray MU711686

SCREW, #8-16x.50

$

$

Currently unavailable

46

Murray MU711601

NUT, 1/4-20 Reghexjam

$

$

Currently unavailable

50

Murray MU17X170

Flat washer

$

$

Currently unavailable

51

Murray MU95325

Plenum, Hood

$

$

Currently unavailable

52

Murray MU690043

Choke Control

$

$

Currently unavailable

53

Murray MU314522

Clip, Choke Control

$

$

Currently unavailable

54

Murray MU711677

Pushnut

$

$

Currently unavailable

55

Murray MU711606

SCREW,5/16-18x.75

$

$

Currently unavailable

56

Murray MU95192-853

Anti-Dehydration Shield

$

$

Currently unavailable

57

Murray MU711592

SCREW, 1/4-20x.50

$

$

Currently unavailable

58

Murray MU711668

WASHER, Exlk

$

$

Currently unavailable
