40377x11B - Murray 40" Lawn Tractor (2000) Engine And Control Assembly Parts Diagram

40" Lawn Tractor

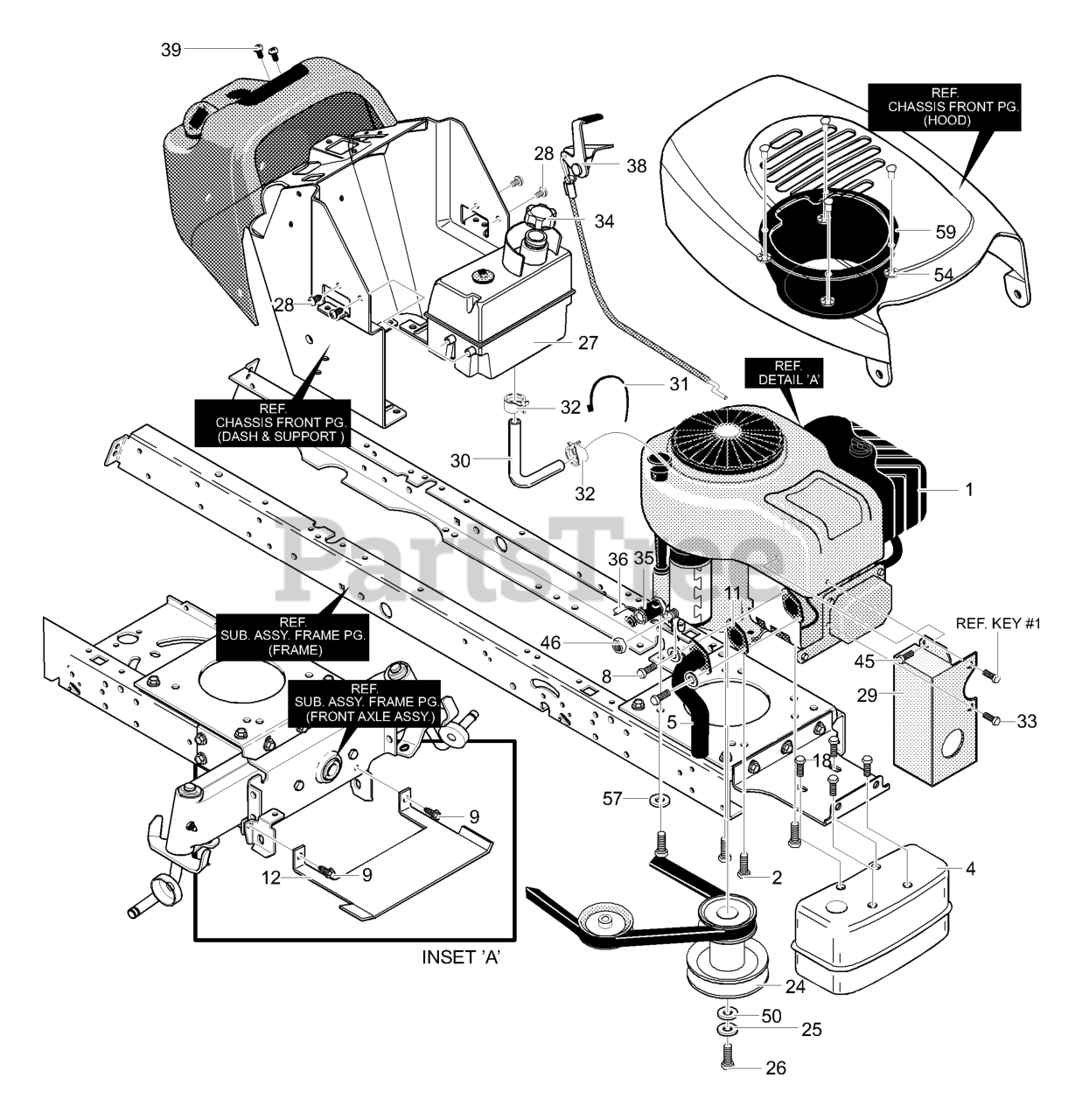

Engine And Control Assembly Parts Diagram

  • Title
1

Engine 15.5HP

Note: (See Engine Manual)

$

$

Not available

--

Murray MU94951

Clip, Speed

$

$

Currently unavailable

2

Murray MU0025X7

Engine Bolt 3/8x1.25

$

$

Currently unavailable

4

Murray MU94654

Muffler

$

$

Currently unavailable

5

Murray MU94657

Exhaust Tube

$

$

Currently unavailable

8

Murray MU313676

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

9

Murray MU711606

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

10

Murray MU313679

WASHER, Regsptlk

$

$

Currently unavailable

11

Murray MU91309

Gasket, Muffler

$

$

Currently unavailable

12

Murray MU95192-853

SHIELD, Anti-Dehydration

$

$

Currently unavailable

18

Murray MU711642

SCREW, 1/4-20x.63

$

$

Currently unavailable

24

Murray MU690456

Stack Pulley Assembly

$

$

Currently unavailable

25

Murray MU120383

WASHER, Regsptlk

$

$

Currently unavailable

26

Murray MU1X169

BOLT, 7/16-20x1.75

$

$

Currently unavailable

27

Murray MU94484

Fuel Tank w/Sensor

$

$

Currently unavailable

28

Murray MU711681

SCREW, 15TPIX

$

$

Currently unavailable

29

Murray MU333772-853

Heat Shield, Side

$

$

Currently unavailable

30

Murray MU41007

GAS LINE TUBING 16 In.

$

$

Currently unavailable

31

Murray MU57444

Cable Tie

$

$

Currently unavailable

32

Murray MU336890

CLAMP, Fuel Line Yellow

$

$

Currently unavailable

33

Murray MU711592

SCREW, 1/4-20x.50

$

$

Currently unavailable

34

Murray MU92317

Fuel Cap

$

$

Currently unavailable

35

Murray MU325547

Oil Drain Valve Assy.

$

$

Currently unavailable

36

Murray MU327422

Cap, Oil Drain Valve

$

$

Currently unavailable

38

Murray MU95263

Throttle Control

$

$

Currently unavailable

39

Murray MU711686

SCREW, #8-16x.50

$

$

Currently unavailable

45

Murray MU711593

SCREW, 10-16x.50

$

$

Currently unavailable

46

Murray MU711601

NUT, 1/4-20 Reghexjam

$

$

Currently unavailable

50

Murray MU17X170

Flat washer

$

$

Currently unavailable

54

Murray MU711677

Pushnut

$

$

Currently unavailable

56

Murray MU17X170

WASHER, Flat

$

$

Currently unavailable

57

Murray MU711668

WASHER, Exlk

$

$

Currently unavailable

59

$

$

Currently unavailable
