40373x68A - Murray 40" Lawn Tractor (2001) Rear Bagger Assembly Parts Diagram

40" Lawn Tractor

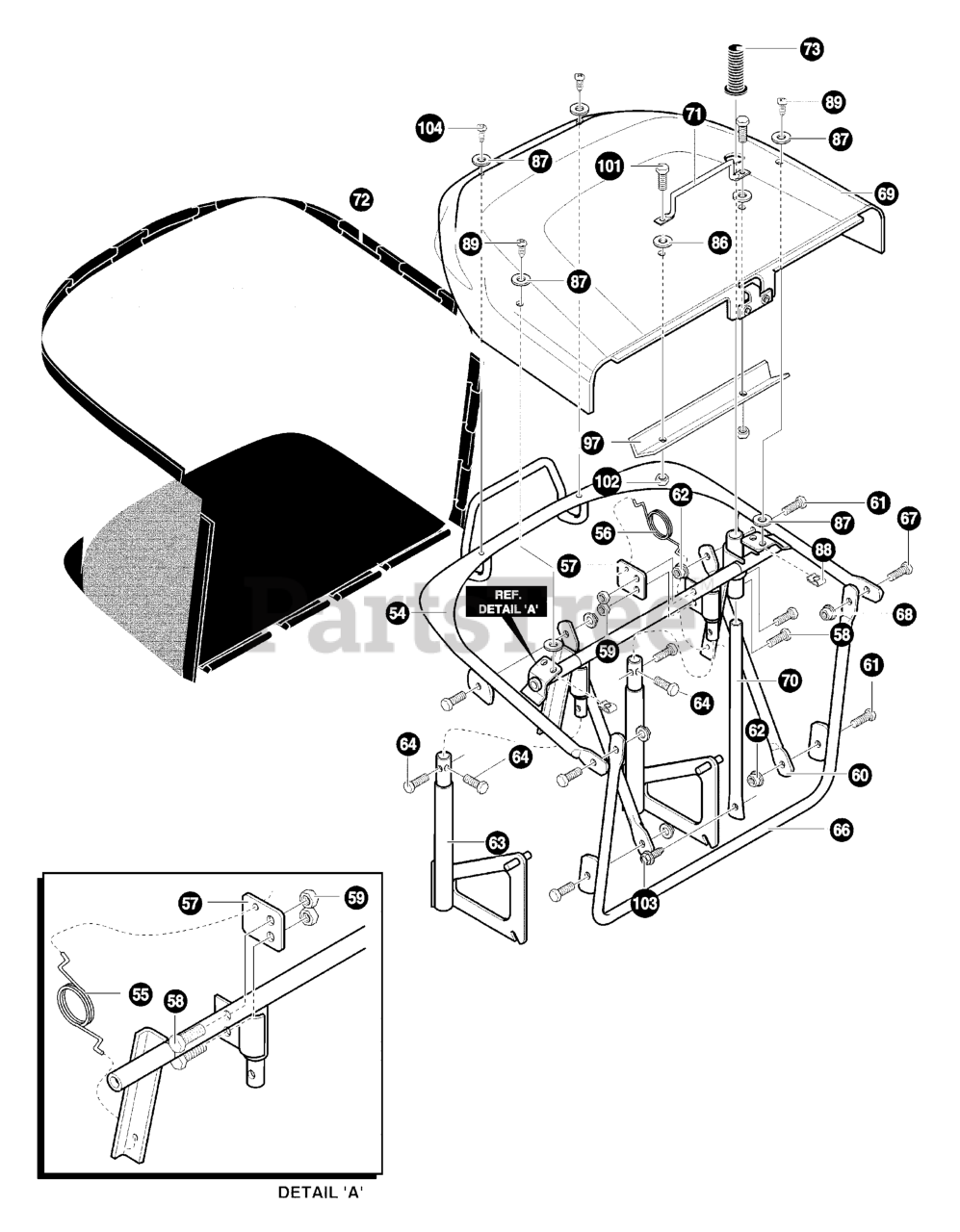

Rear Bagger Assembly Parts Diagram

  • Title
54

Murray 690044-853

ASM. WLD- UPPER FRAME

$

$

Currently unavailable

55

Murray 690003

SPRING, TORSION RH BAG CLOSE

$18.99

$

Usually ships in 2-12 days

0

56

Murray 690004

SPRING, TORSION LH BAG CLOSE

$

$

Currently unavailable

57

Murray 95339-853

BRACKET, SPRING COLLECTOR

$

$

Currently unavailable

58

Murray 711909

SCREW, 1/4-20X.62

$

$

Currently unavailable

59

Murray 303008MA

NUT, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 16

0

60

Murray 94850-853

BRACE, FRAME COLLECTOR

$4.49

$

Usually ships in 2-12 days

0

61

Murray 711909

SCREW, 1/4-20X.62

$

$

Currently unavailable

62

Murray 303008MA

NUT, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 16

0

63

Murray 95343-853

ASM. SUPPORT COLLECTOR

$

$

Currently unavailable

64

Murray 711653

SCREW, 5/16-18 x 1.50

$1.99

$

Usually ships in 2-12 days

0

66

Murray 95349-853

ASM., FRONT FRAME COLLECT

$

$

Currently unavailable

67

Murray 711909

SCREW, 1/4-20X.62

$

$

Currently unavailable

68

Murray 711632

NUT, 1/4-20

$

$

Currently unavailable

69

Murray 94908-884

TOP COLLECTOR ASM.

$

$

Currently unavailable

70

Murray 690019

HANDLE, DUMP REBA COLLECTOR

$59.99

$

In Stock, only 1 left!

0

71

Murray 690506-853

HANDLE, REBA COLLECTOR

$

$

Currently unavailable

72

Murray 95389MA

REBA COLLECTOR BAG

$110.99

$

Usually ships in 2-12 days

0

73

Murray 94854MA

RUBBER GRIP

$5.49

$

Usually ships in 2-12 days

0

85

Murray 711634MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

86

Murray 712129

WASHER, .281X1.25X.06

$

$

Currently unavailable

87

Murray 711921

WASHER, FLAT

$

$

Currently unavailable

88

Murray 578107

NUT, 1/4-20 TINN U

$

$

Not available

89

Murray 711674MA

SCREW, 1/4-20X.63

$3.49

$

Usually ships in 2-12 days

0

97

Murray 690010-853

BRACE, BAGGER

$

$

Currently unavailable

101

Murray 712068

SCREW, 1/4-20X1.50

$10.99

$

Usually ships in 2-12 days

0

102

Murray 711632

NUT, 1/4-20

$

$

Currently unavailable

103

Murray 711741

SCREW, #12X.50

$1.99

$

Usually ships in 2-12 days

0

104

Murray 711741

SCREW, #12X.50

$1.99

$

Usually ships in 2-12 days

0
