40372x50B - Murray 40" Lawn Tractor (2000) Engine And Control Assembly Parts Diagram

40" Lawn Tractor

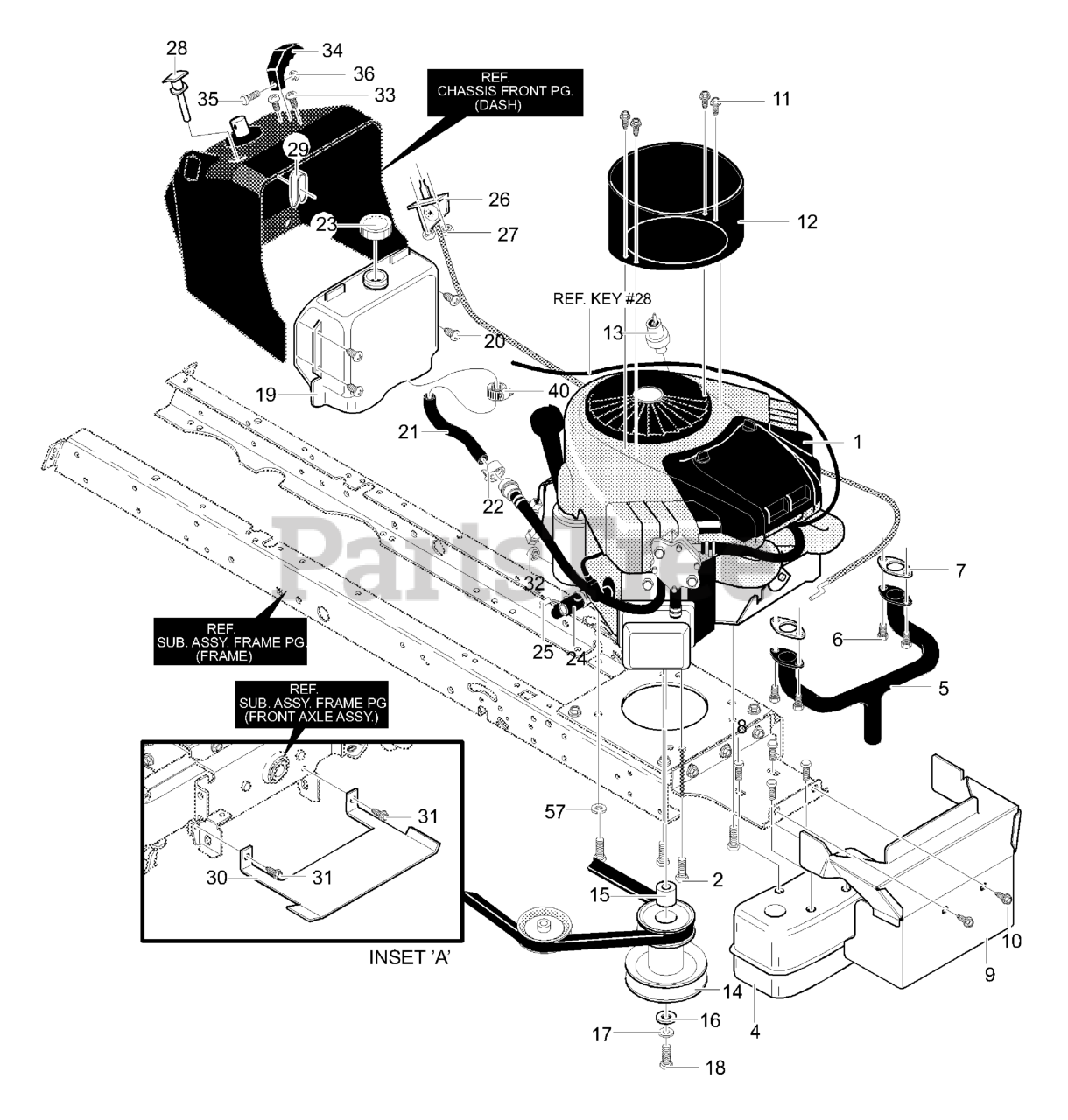

Engine And Control Assembly Parts Diagram

  • Title

1

18HP Engine

Note: (See Engine Manual)

$

$

Not available

--

Murray 094951

Clip, Speed

$

$

Currently unavailable

2

Murray 710199

Screw, 3/8-16 x 1.25

$66.99

$

Usually ships in 2-12 days

0

4

Murray 094655MA

Muffler, Twin Cyclinder

$86.99

$

Usually ships in 2-12 days

0

5

Murray 95204

Exhaust Tube

$110.99

$

Usually ships in 2-12 days

0

6

Murray 711852

Screw (B/S #94755)

$5.99

$

Usually ships in 2-12 days

0

7

Murray 711851MA

B/S Exhaust Gasket

$4.49

$

Usually ships in 2-12 days

0

8

Murray 711642MA

Screw, 1/4-20x.63
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

9

Murray 94335-821

Weld, Assy. Shield

$

$

Currently unavailable

10

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

11

Murray 711637

Screw, #8-16x.38

$

$

Currently unavailable

12

Murray 95012

Plenum
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

13

Murray 314797

Oil Sensor

$

$

Currently unavailable

14

Murray 690456MA

Stack Pulley Assy.

$193.99

$

Usually ships in 2-12 days

0

15

Murray 093077MA

Spacer, Sleeve

$15.99

$

In Stock, only 1 left!

0

16

Murray 710247

Flatwasher

$8.49

$

Usually ships in 2-12 days

0

17

Murray 120383

Washer, Regsptlk

$

$

Not available

18

Murray 01X169

Bolt, 7/16-20x1.75

$3.49

$

Usually ships in 2-12 days

0

19

Murray 314991MA

Fuel Tank 2 Gal.

$48.99

$

Usually ships in 2-12 days

0

20

Murray 711741

Screw, #12x.50

$1.99

$

Usually ships in 2-12 days

0

21

Murray 50118

Tubing, Gas Line 14 Inches

$

$

Currently unavailable

22

Murray 336890

Clamp, Fuel Line Yellow

$

$

Currently unavailable

23

Murray 690615

Gas Cap 2.0 Throat

$133.99

$

Usually ships in 2-12 days

0

24

Murray 325547MA

Oil Drain Valve Assembly

$

$

Not available

25

Murray 327422

Cap, Oil Drain Valve Assy.

$

$

Not available

26

Murray 309407MA

Throttle Control

$25.99

$

Usually ships in 2-12 days

0

27

Murray 711754

Nut, #10-24 Hxhdnylk

$17.99

$

Usually ships in 2-12 days

0

28

Murray 94891

Choke

$13.99

$

Usually ships in 2-12 days

0

29

Murray 314522

Clip, Choke Control

$1.99

$

Usually ships in 2-12 days

0

30

Murray 95192-821

Shield, Anti-Dehydration

$

$

Currently unavailable

31

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

32

Murray 711601

Nut, 1/4-20 Reghexjam

$1.99

$

Usually ships in 2-12 days

0

33

Murray 711755MA

Screw, 10-24x.63

$3.49

$

Usually ships in 2-12 days

0

34

Murray 94931

Knob, Throttle Control
(Superseded to 691695)

$6.99

$

Usually ships in 2-12 days

0

35

Murray 711750

Screw, #8-32x.38

$

$

Currently unavailable

36

Murray 711748

Nut, #8-32 Reghex

$5.49

$

Usually ships in 2-12 days

0

40

Murray 47345

Clamp, Hose Screw Type
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

57

Murray 711668

Washer, Exlk

$

$

Not available
