40371x50B - Murray 40" Lawn Tractor (2000) Engine And Control Assembly Parts Diagram

40" Lawn Tractor

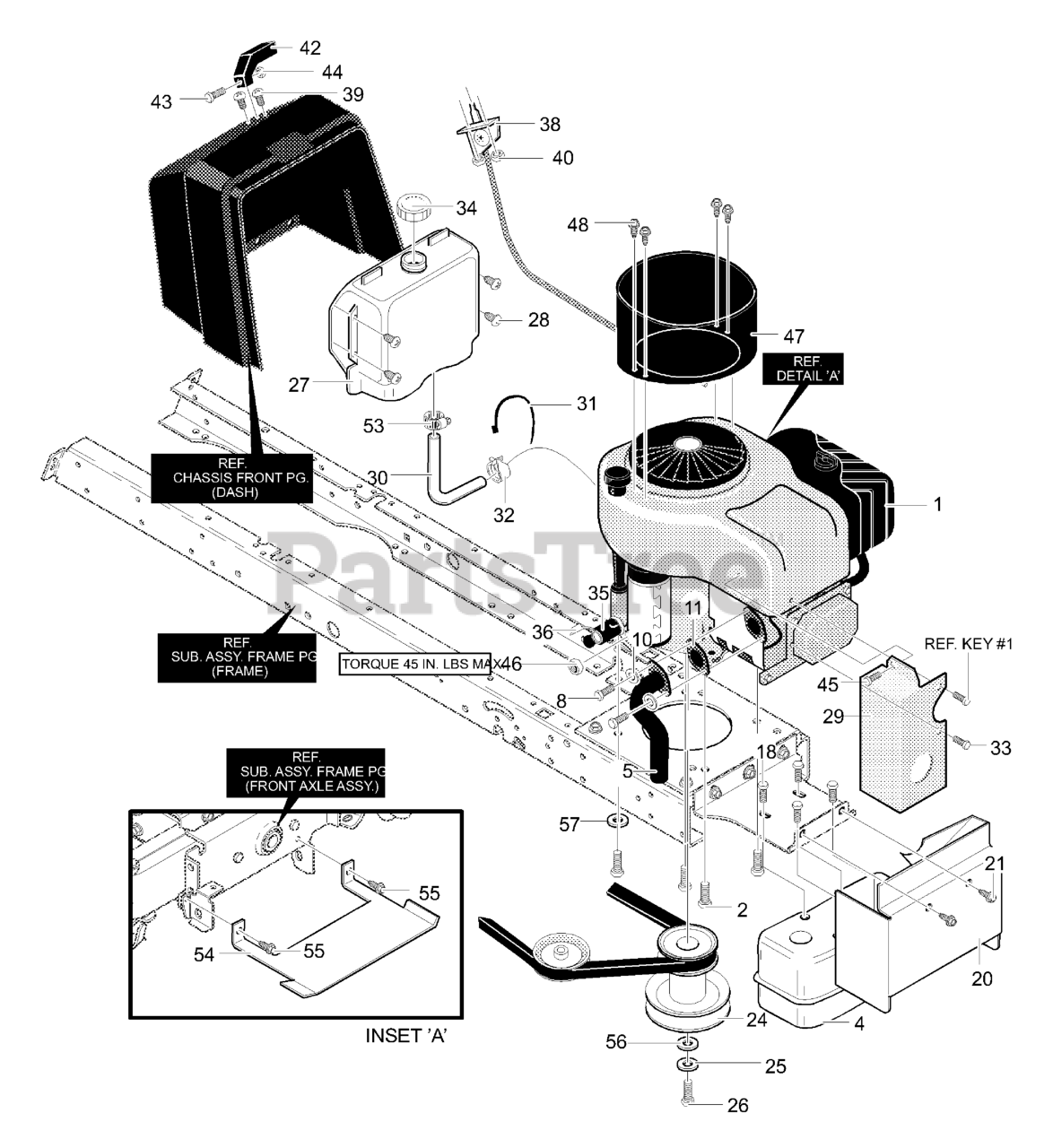

Engine And Control Assembly Parts Diagram

  • Title

1

15.5HP Engine

Note: (See Engine Manual)

$

$

Not available

--

Murray 094951

Clip, Speed

$

$

Currently unavailable

2

Murray 710199

Screw, 3/8-16 x 1.25

$66.99

$

Usually ships in 2-12 days

0

4

Murray 094654MA

Muffler, Single Cyclinder

$

$

Not available

5

Murray 094657

Exhaust Tube

$

$

Currently unavailable

8

Murray 313676

Screw, 5/16-18 x 0.75

$1.49

$

Usually ships in 2-12 days

0

10

Murray 313679

Washer, Hvsptlk

$

$

Currently unavailable

11

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

18

Murray 711642MA

Screw, 1/4-20x.63
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

20

Murray 95439-821

Heat Shield Lower Front

$

$

Currently unavailable

21

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

24

Murray 690456MA

Stack Pulley

$193.99

$

Usually ships in 2-12 days

0

25

Murray 120383

Washer, Regsptlk

$

$

Not available

26

Murray 01X169

Screw, 7/16-20

$3.49

$

Usually ships in 2-12 days

0

27

Murray 314991MA

Tank, Fuel 2 Gal.

$48.99

$

Usually ships in 2-12 days

0

28

Murray 711741

Screw, #12x.50

$1.99

$

Usually ships in 2-12 days

0

29

Murray 333772-821

Heat Shield, Side

$

$

Currently unavailable

30

Murray 42258

Gas line 12 Inches

$

$

Currently unavailable

31

Murray 57444

Cable Tie

$

$

Not available

32

Murray 336890

Clamp, Fuel Clamp

$

$

Currently unavailable

33

Murray 711592

Screw, 1/4-20x.50

$335.99

$

Usually ships in 2-12 days

0

34

Murray 690615

Gas Cap

$133.99

$

Usually ships in 2-12 days

0

35

Murray 325547MA

Oil Drain Valve Assembly

$

$

Not available

36

Murray 327422

Cap, Oil Drain Valve

$

$

Not available

38

Murray 95370MA

Throttle Control

$33.99

$

Usually ships in 2-12 days

0

39

Murray 711755MA

Screw, 10-24x.63

$3.49

$

Usually ships in 2-12 days

0

40

Murray 711754

Nut, #10-24

$17.99

$

Usually ships in 2-12 days

0

42

Murray 94931

Knob, Throttle Control
(Superseded to 691695)

$6.99

$

Usually ships in 2-12 days

0

43

Murray 711750

Screw, #8-32

$

$

Currently unavailable

44

Murray 711748

Nut, #8-32

$5.49

$

Usually ships in 2-12 days

0

45

Murray 711593

Screw, 10-16x.50 Drill

$1.99

$

Usually ships in 2-12 days

0

46

Murray 711601

Nut, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

47

Murray 690059

Plenum

$

$

Not available

48

Murray 710245

Screw, #8-16x.38
(Superseded to 710795)

$22.99

$

In Stock, only 2 left!

0

52

Murray 95192-821

Shield, Anti-Dehydration

$

$

Currently unavailable

53

Murray 47345

Clamp, Hose Screw Type
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

54

Murray 95192-821

Shield, Anti-Dehydration

$

$

Currently unavailable

55

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

56

Murray 710247

Flatwasher, ,480x1.00

$8.49

$

Usually ships in 2-12 days

0

57

Murray 711668

Washer, Exlk

$

$

Not available
