40370x50C - Murray 40" Lawn Tractor (2001) Rear Chassis Assembly (part 1) Parts Diagram

40" Lawn Tractor

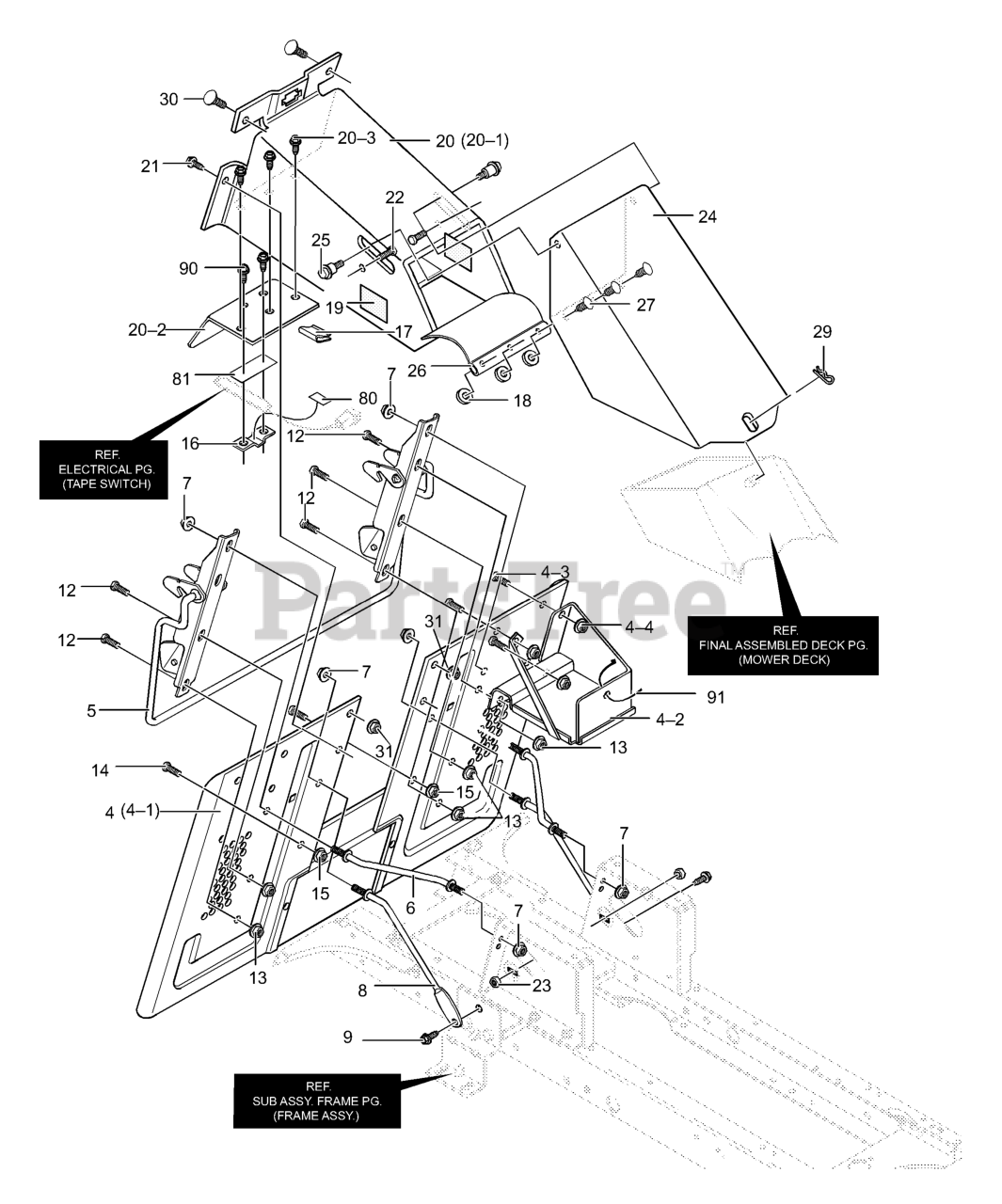

Rear Chassis Assembly (part 1) Parts Diagram

  • Title

4

Murray 1001068-821

Assy., Back Plate/Battery

$

$

Currently unavailable

4-1

Murray 95162

Assy. Back Plate Flat
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

4-2

Murray 94563

Battery Tray Assembly

$5.49

$

Usually ships in 2-12 days

0

4-3

Murray 180073MA

Screw, 5/16-18 x 0.50

$3.49

$

Usually ships in 2-12 days

0

4-4

Murray 45174

Nut, 5/16-18 Hexwdfllk Whiz

$

$

Currently unavailable

5

Murray 95359-821

Weldment - Latch Lever

$

$

Currently unavailable

6

Murray 690097

Rod, Brace

$

$

Not available

7

Murray 711906

Nut, 3/8-16 Hwdfl Whiz-lock

$

$

Not available

8

Murray 94231

Rod, Brace
(Superseded to 691340)

$4.99

$

In Stock, Qty 7

0

9

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

12

Murray 9357MA

Screw, 5/16-18 x 0.75
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

13

Murray 710026

Nut, 5/16-18 Hexwdfllk Whiz

$

$

Not available

14

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

15

Murray 710026

Nut, 5/16-18 Hexwdfllk Whiz

$

$

Not available

16

Murray 690245

Bracket, Flex Switch Mounting

$

$

Currently unavailable

17

Murray 055939MA

Wire Clip, Adhesive

$4.99

$

Usually ships in 2-12 days

0

18

Murray 711666

Flatwasher

$

$

Not available

19

Murray 318197

Pad, Adhesive

$1.99

$

Usually ships in 2-12 days

0

20

Murray 690102-821

Asm., T/A Shield & Upper Chute

$

$

Currently unavailable

20-1

Murray 94350

Chute Weld Asm. Upper

$

$

Currently unavailable

20-2

Murray 95367

Shield,Transaxle
(Superseded to 95367GS)

$30.99

$

Usually ships in 2-12 days

0

20-3

Murray 711642MA

Screw, 1/4-20x.63
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

21

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

22

Murray 340720MA

Bolt, Carriage 5/16-18x.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

23

Murray 710026

Nut, 5/16-18

$

$

Not available

24

Murray 94296-821

Middle Chute Assembly

$

$

Currently unavailable

25

Murray 710440

Shoulder Bolt

$

$

Currently unavailable

26

Murray 94264MA

Flap, Chute

$7.49

$

Usually ships in 2-12 days

0

27

Murray 309235MA

Fastener, Ratchet

$3.99

$

Usually ships in 2-12 days

0

28

Murray 711617

Flatwasher

$5.49

$

In Stock, Qty 11

0

29

Murray 711682MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

30

Murray 340720MA

Bolt, Carriage 5/16-18x.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

31

Murray 710026

Nut, 5/16-18

$

$

Not available

80

Murray 712009

Tape, Double Sided Foam 3/4"

$32.99

$

Usually ships in 2-12 days

0

81

Murray 712009

Tape, Double Sided Foam 3/4"

$32.99

$

Usually ships in 2-12 days

0

90

Murray 711642MA

Screw, 1/4-20x.63
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

91

Murray 57444

Cable Tie

$

$

Not available
