40357 - Gravely 32" Grass Bagger for 1100 & 1200 Series Tractor GRASS CATCHER 32" Parts Diagram

32" Grass Bagger for 1100 & 1200 Series Tractor

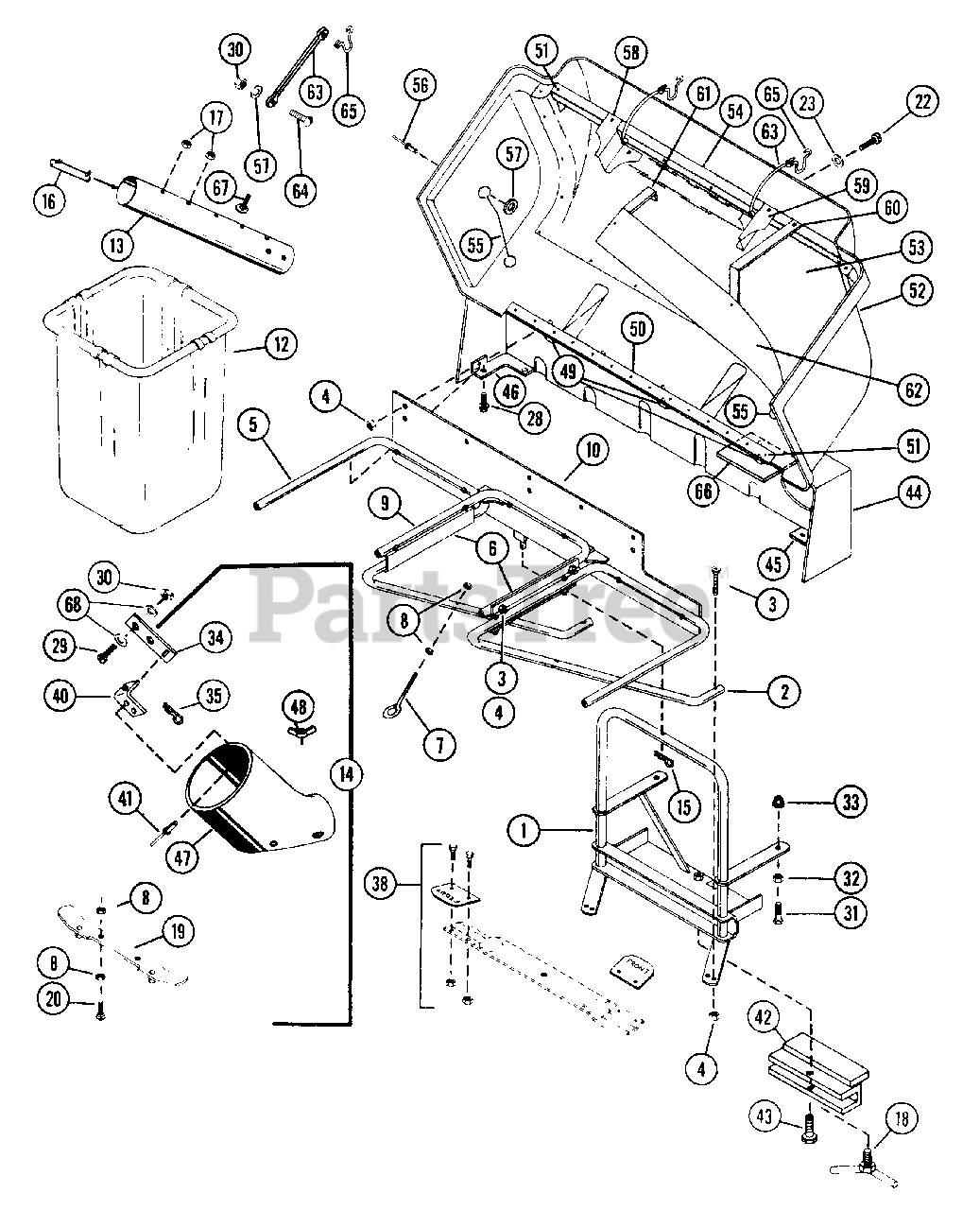

GRASS CATCHER 32" Parts Diagram

  • Title

1

Gravely 038320

FRAME, ATTACHMENT

$

$

Not available

2

Gravely 038321

TUBE, RIGHT
(Superseded to 03324800)

$

$

Not available

3

Gravely 035809

SCREW, MACHINE 5/16-18X1.50
(Superseded to 06119100)

$

$

Not available

4

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 038322

TUBE, LEFT
(Superseded to 03324900)

$

$

Not available

6

Gravely 038323

BRACKET, TUBE
(Superseded to 02724700)

$

$

Not available

7

Gravely 038324

EYEBOLT
(Superseded to 02440100)

$10.99

$

Usually ships in 4-12 days

0

8

Gravely 424215

NUT, LOCK 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 038325

TUBE, CENTER
(Superseded to 02724651)

$44.99

$

Usually ships in 4-12 days

0

10

Gravely 038326

BRACKET, MOUNTING
(Superseded to 03551400)

$

$

Not available

12

Gravely 038328

BASKET, GRASS BAGGER
(Superseded to 02724400)

$79.99

$

Usually ships in 4-12 days

0

13

Gravely 041082

BLANK, TUBE
(Superseded to 03558600)

$185.99

$

Usually ships in 4-12 days

0

14

Gravely 041083

ASSEMBLY, BOOT
(Superseded to 53505500)

$

$

Not available

15

Gravely 036075

HAIR PIN, INTERNAL
(Superseded to 06701000)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 035825

CLIP
(Superseded to 02533300)

$

$

Not available

17

Gravely 038345

NUT, LOCK 1/4-20 FLANGE
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 035835

BOLT, T-HANDLE
(Superseded to 03525900)

$

$

Not available

19

Gravely 041084

SPRING, LATCH
(Superseded to 02730800)

$

$

Not available

20

Gravely 126325

BOLT, CARRIAGE 1/4-20X1.25
(Superseded to 06219700)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 159920

SCREW, MACHINE 10-24X.50 PHD
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

23

Gravely 038335

WASHER, .339/.359X1.125X.063 PL
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

28

Gravely 180073

BOLT, HEX 5/16-18X.50
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

29

Gravely 133556

SCREW, MACHINE 10-24X.375 F/HD
(Superseded to 21053900)

$

$

Not available

30

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

34

Gravely 041085

STRAP
(Superseded to 03558400)

$

$

Not available

35

Gravely 036566

PIN, HAIR INTERNAL .094X1.875
(Superseded to 06702900)

$2.49

$

Usually ships in 4-12 days

0

38

Gravely 041086

ASSEMBLY, VANE
(Superseded to 52701100)

$45.99

$

Usually ships in 4-12 days

0

Gravely 041087

VANE
(Superseded to 52701100)

$45.99

$

Usually ships in 4-12 days

0

Gravely 181595

BOLT, HEX 5/16-24X.75
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

Gravely 035834

NUT, LOCK 5/16-24 GR. C
(Superseded to 06514500)

$

$

Not available

40

Gravely 036783

RETAINER
(Superseded to 02539600)

$

$

Not available

41

Gravely 036782

RIVET, OVAL .187X.375
(Superseded to 06806200)

$1.49

$

Usually ships in 4-12 days

0

42

Gravely 038338

ADAPTER
(Superseded to 03532900)

$

$

Not available

43

Gravely 180183

BOLT, HEX 1/2-13X2.25
(Superseded to 05901835)

$3.49

$

In Stock, Qty 6

0

44

Gravely 041088

COVER, STATIONARY
(Superseded to 53506700)

$

$

Not available

45

Gravely 041089

BRACKET, R.H. CORNER
(Superseded to 02725000)

$

$

Not available

46

Gravely 041090

BRACKET, L.H. CORNER
(Superseded to 02725100)

$

$

Not available

47

Gravely 041091

BOOT, 32"
(Superseded to 63515600)

$

$

Not available

48

Gravely 148313

NUT, WING 5/16-18
(Superseded to 06503800)

$2.49

$

Usually ships in 4-12 days

0

49

Gravely 041092

BRACE
(Superseded to 02725200)

$

$

Not available

50

Gravely 041093

HINGE

$

$

Not available

51

Gravely 026537

RIVET
(Superseded to 20453800)

$

$

Not available

52

Gravely 041094

COVER, HINGED

$

$

Not available

53

Gravely 041095

SCREEN
(Superseded to 03325500)

$

$

Not available

54

Gravely 041096

BRACKET, SCREEN MOUNTING

$

$

Not available

55

Gravely 041097

BRACE
(Superseded to 03552900)

$

$

Not available

56

Gravely 041098

RIVET, POP DOMED 3/16X.527 OES
(Superseded to 06803800)

$1.49

$

In Stock, Qty 20+

0

57

Gravely 120385

WASHER, FLAT .188X.562X.049
(Superseded to 06409200)

$

$

Not available

58

Gravely 041099

BAFFLE, L.H.
(Superseded to 03326900)

$5.99

$

Usually ships in 4-12 days

0

59

Gravely 041100

BAFFLE, R.H.
(Superseded to 03327000)

$

$

Not available

60

Gravely 041101

BRACE
(Superseded to 03326500)

$113.99

$

Usually ships in 4-12 days

0

61

Gravely 041102

BRACE
(Superseded to 03553000)

$5.99

$

Usually ships in 4-12 days

0

62

Gravely 041103

BAFFLE

$

$

Not available

63

Gravely 035829

STRAP
(Superseded to 07507500)

$14.99

$

Usually ships in 4-12 days

0

64

Gravely 132848

SCREW, MACHINE 10-24X1.00 RD HD
(Superseded to 06112700)

$

$

Not available

65

Gravely 035830

HOOK
(Superseded to 02738100)

$6.99

$

In Stock, Qty 5

0

66

Gravely 041104

GUIDE, TUBE
(Superseded to 53506300)

$

$

Not available

67

Gravely 110356

BOLT, CARRIAGE 1/4-20X.50
(Superseded to 21048900)

$

$

Not available

68

Gravely 446161

WASHER, FLAT .219X.438X.049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

NS

Gravely 041105

ASSEMBLY, COVER

$

$

Not available

NS

Gravely 024608

DECAL, GRAVELY LOGO
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days

0
