40320x88 - Murray 40" Lawn Tractor (2000) Console & Hood Parts Diagram

40" Lawn Tractor

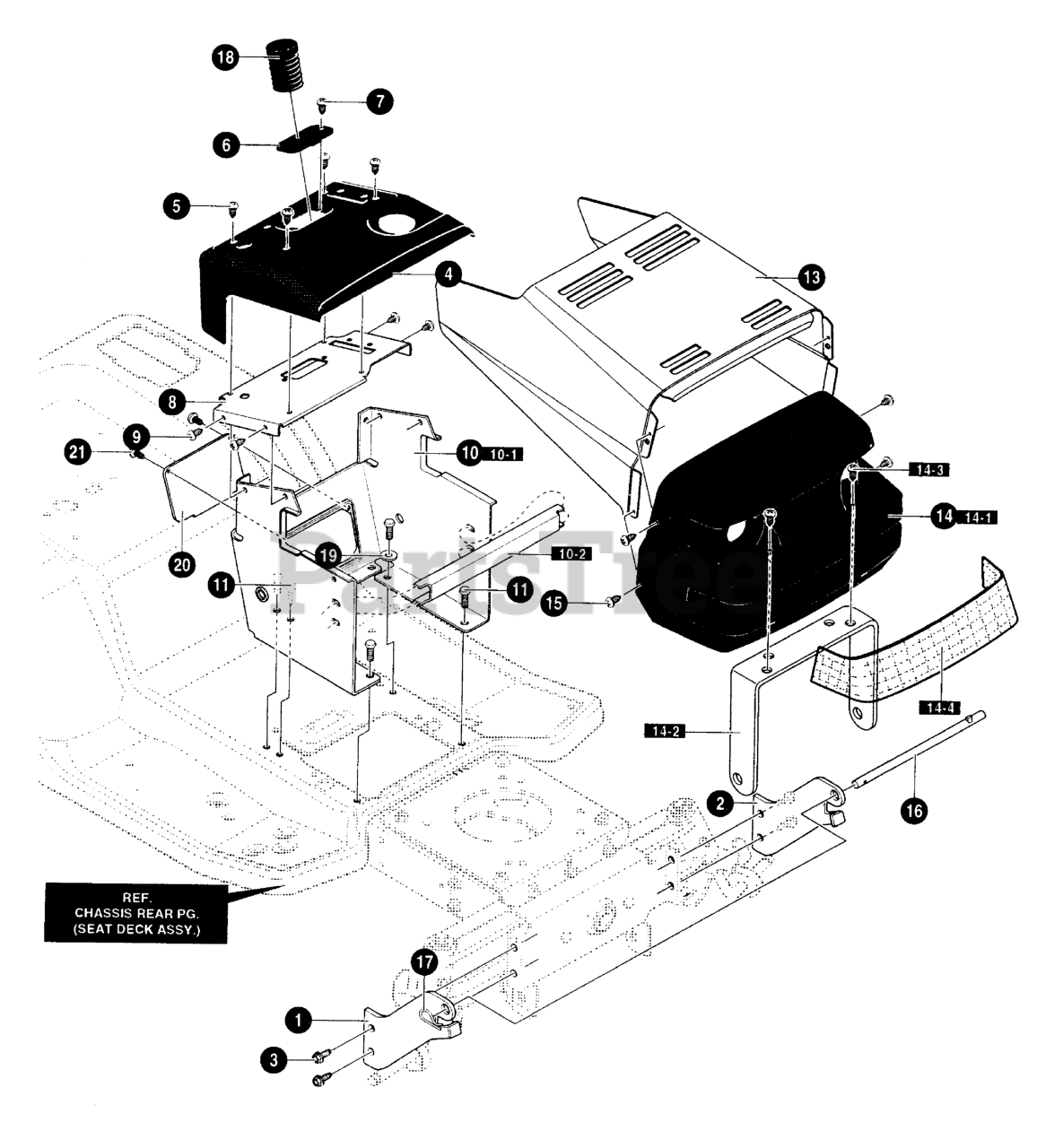

Console & Hood Parts Diagram

  • Title

1

Murray 94212-853

SUPPORT BRACKET RH

$

$

Currently unavailable

2

Murray 94213-853

SUPPORT BRACKET LH

$

$

Currently unavailable

3

Murray 711606MA

SCREW, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

4

Murray 94842

DASH

$

$

Currently unavailable

5

Murray 711629

SCREW, 10-24X.50

$

$

Not available

6

Murray 094214MA

BEARING

$4.99

$

Usually ships in 2-12 days

0

7

Murray 710197

SCREW, 1/4-14X.50

$12.99

$

Usually ships in 2-12 days

0

8

Murray 94211-848

PLATE, DASH PANEL

$

$

Currently unavailable

9

Murray 711629

SCREW, 10-24 X.50

$

$

Not available

10

Murray 690104-848

LOWER CONSOLE

$

$

Currently unavailable

10-1

Murray 95323

SUPPORT, DASH

$

$

Currently unavailable

10-2

Murray 94215

SUPPORT, CHANNEL

$

$

Currently unavailable

11

Murray 711606MA

SCREW, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

13

Murray 94972-848

HOOD

$

$

Currently unavailable

14

Murray 092367MA

GRILLE ASSY.

$302.99

$

Usually ships in 2-12 days

0

14-1

Murray 092368

GRILLE

$

$

Currently unavailable

14-2

Murray 092448

BRACE

$

$

Not available

14-3

Murray 710282

SCREW, 1/4-14 X.75

$

$

Not available

14-4

Murray 092369MA

LENS

$131.99

$

Usually ships in 2-12 days

0

15

Murray 711679

SCREW, PAN TAP

$23.99

$

Usually ships in 2-12 days

0

16

Murray 690093

ROD, HOOD PIVOT

$

$

Not available

17

Murray 711676

HAIR PIN

$

$

Currently unavailable

18

Murray 94313

BELLOW
(Superseded to 94313GS)

$63.99

$

Usually ships in 2-12 days

0

19

Murray 712063

WASHER, BELLVILLE

$9.49

$

Usually ships in 2-12 days

0

20

Murray 95366-848

ACCESS PANEL

$

$

Currently unavailable

21

Murray 710196

SCREW, 10-24 X.50

$1.49

$

Usually ships in 2-12 days

0

--

Murray F-99853J

OWNER'S MANUAL

$

$

Currently unavailable
