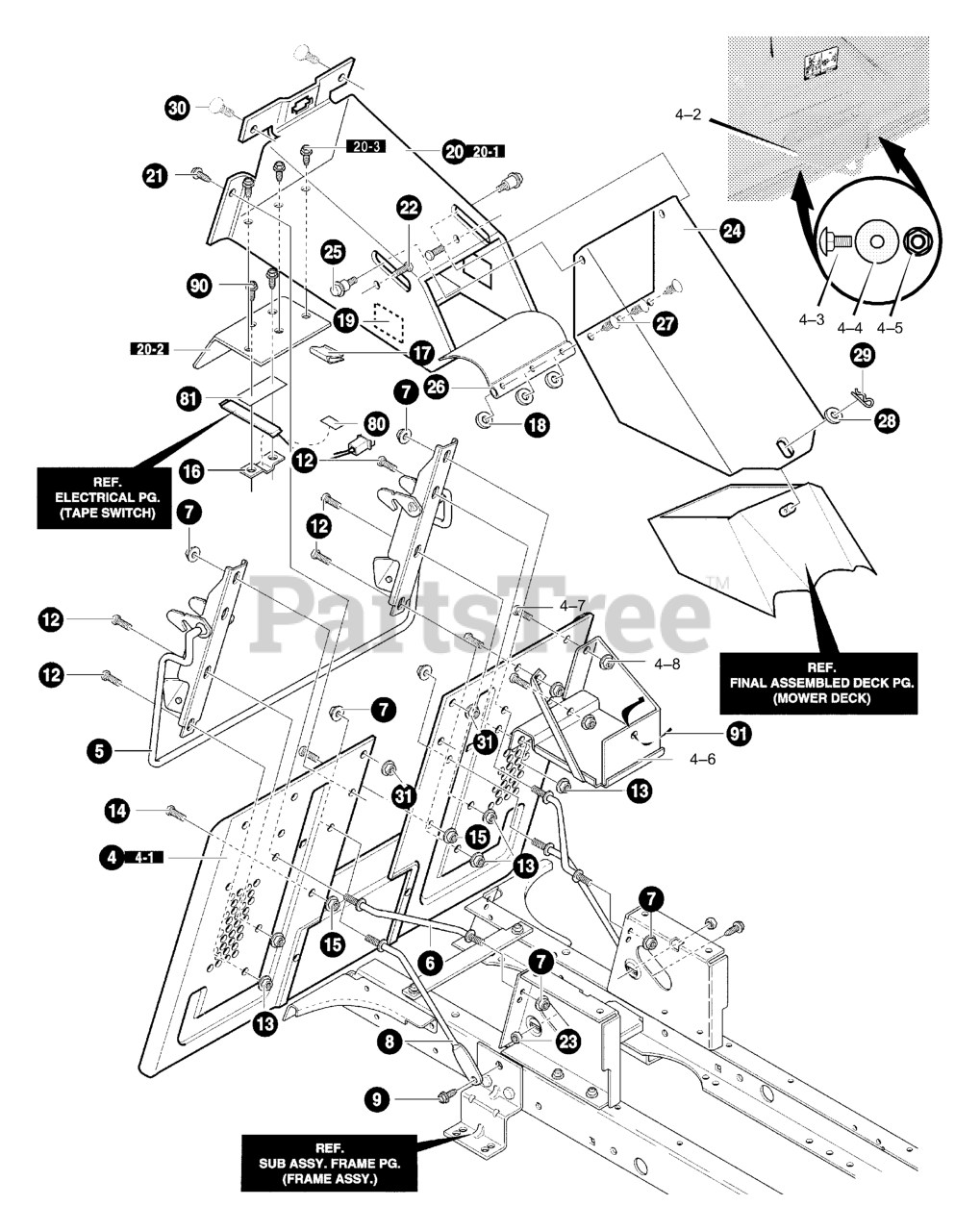

40319x98C - Murray 40" Lawn Tractor (2001) Rear Chassis Parts Diagram

40" Lawn Tractor

Rear Chassis Parts Diagram

  • Title

4

Murray 1001068-853

ASSY, BACK PLATE/BATTERY

$

$

Currently unavailable

4-1

Murray 1001030

ASM. BACKPLATE, ONE PIECE

$

$

Currently unavailable

4-2

Murray 1001063

HITCH, FLAT BACK PLATE

$

$

Currently unavailable

4-3

Murray 340720MA

BOLT, CARRIAGE
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

4-4

Murray 710026

NUT, HEX

$

$

Not available

4-5

Murray 711921

WASHER, FLAT

$

$

Currently unavailable

4-6

Murray 94563

BATTERY TRAY ASM.

$5.49

$

Usually ships in 2-12 days

0

4-7

Murray 180073MA

SCREW, 5/16-18 x 0.50 HHC

$3.49

$

Usually ships in 2-12 days

0

4-8

Murray 015X79MA

NUT, 5/16-18 HEXWDFLLK WHIZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Murray 95359-853

WELDMENT - LATCH LEVER

$

$

Currently unavailable

6

Murray 690097

ROD, BRACE

$

$

Not available

7

Murray 711906

NUT, 3/8-16 HWDFL WHIZ-LOCK

$

$

Not available

8

Murray 94231

ROD, BRACE
(Superseded to 691340)

$4.99

$

In Stock, Qty 7

0

9

Murray 711606MA

SCREW, 5/16-18 x 0.75 HHWATAP

$7.99

$

In Stock, only 2 left!

0

12

Murray 9357MA

SCREW 5/16-18X.75 WDFLW
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

13

Murray 710026

NUT, 5/16-18 HEXWDFLLK WHIZ

$

$

Not available

14

Murray 711606MA

SCREW 5/16-18X.75 HHWATAP

$7.99

$

In Stock, only 2 left!

0

15

Murray 710026

NUT, 5/16-18 HEXWDFLLK WHIZ

$

$

Not available

16

Murray 690245

BRACKET, FLEX SWITCH MOUNTING

$

$

Currently unavailable

17

Murray 055939MA

WIRE CLIP, ADHESIVE

$4.99

$

Usually ships in 2-12 days

0

18

Murray 711666

FLATWASHER, .250X.56X.047

$

$

Not available

19

Murray 318197

PAD, ADHESIVE 1.00X1.50X.12

$1.99

$

Usually ships in 2-12 days

0

20

Murray 690102-853

ASM., T/A SHIELD & UPPER CHUTE

$

$

Currently unavailable

20-1

Murray 94350

CHUTE WELD ASM. UPPER

$

$

Currently unavailable

20-2

Murray 95367

SHIELD, TRANSAXLE
(Superseded to 95367GS)

$30.99

$

Usually ships in 2-12 days

0

20-3

Murray 711642MA

SCREW, 1/4-20X.63 HHWATAP
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

21

Murray 711606MA

SCREW, 5/16-18 x.75 HHC

$7.99

$

In Stock, only 2 left!

0

22

Murray 340720MA

BOLT, 5/16-18X.75 CARR
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

23

Murray 710026

NUT, 5/16-18 HEXWDFLLK WHIZ

$

$

Not available

24

Murray 94296-853

MIDDLE CHUTE ASSY

$

$

Currently unavailable

25

Murray 009X57MA

BOLT, SHOULDER, 3/8-16

$9.99

$

In Stock, Qty 11

0

26

Murray 94264MA

FLAP, CHUTE

$7.49

$

Usually ships in 2-12 days

0

27

Murray 309235MA

FASTENER, RATCHET

$3.99

$

Usually ships in 2-12 days

0

28

Murray 711617

FLATWASHER

$5.49

$

In Stock, Qty 11

0

29

Murray 711682MA

PIN, HAIR .38DIAX1.64LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

30

Murray 340720MA

BOLT, 5/16-18X.75 CARR.
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

31

Murray 710026

NUT, 5/16-18 HEXWDFLLK WHIZ

$

$

Not available

80

Murray 712009

TAPE, DOUBLE SIDED FOAM 3/4" WD

$32.99

$

Usually ships in 2-12 days

0

81

Murray 712009

TAPE, DOUBLE SIDED FOAM 3/4" WD

$32.99

$

Usually ships in 2-12 days

0

90

Murray 711642MA

SCREW, 1/4-20X.63 HHWATAP
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

91

Murray 57444

CABLE TIE

$

$

Not available
