40319x98C - Murray 40" Lawn Tractor (2001) Frame Assembly (part 2) Parts Diagram

40" Lawn Tractor

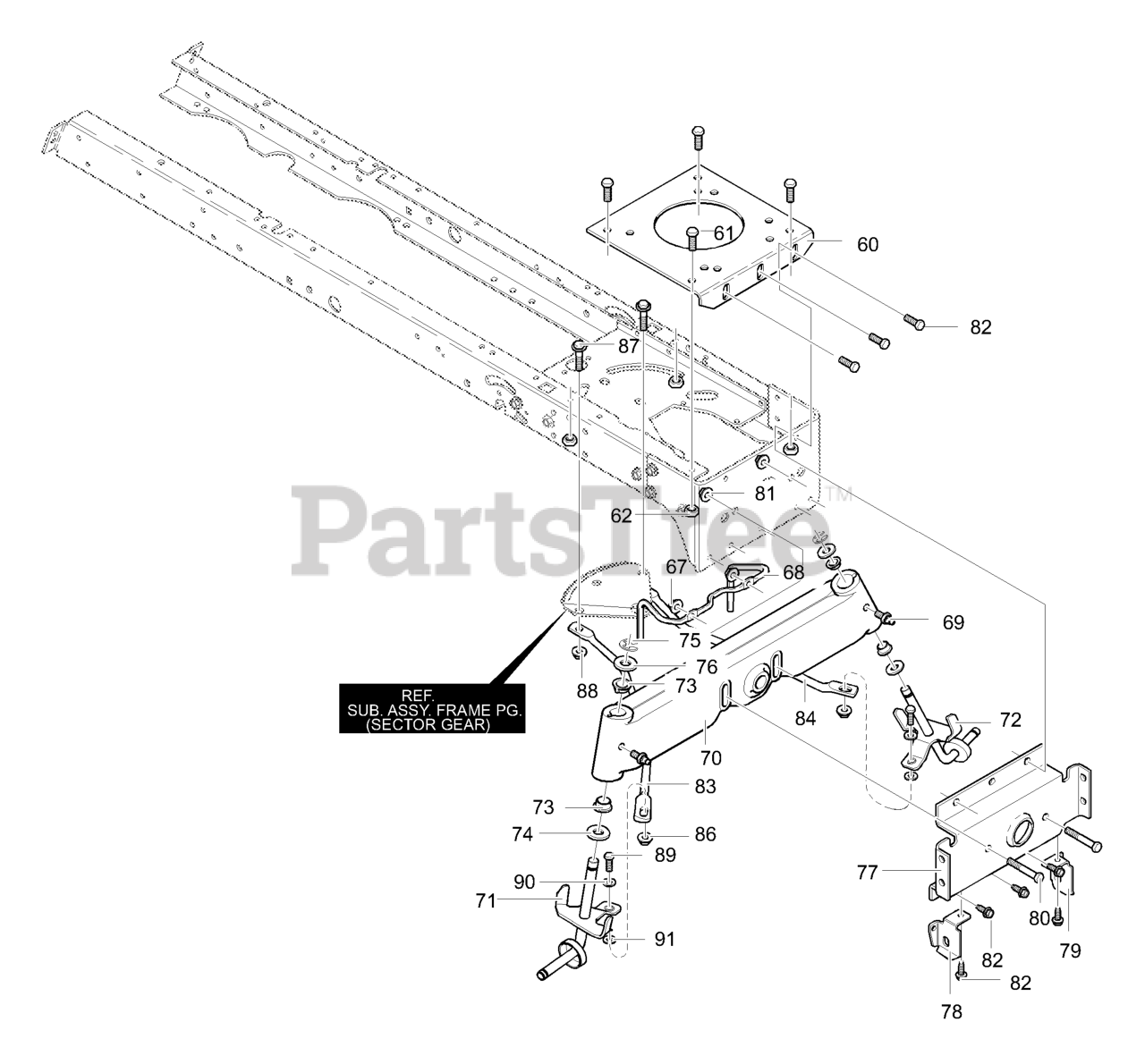

Frame Assembly (part 2) Parts Diagram

  • Title

60

Murray 94006

Engine Plate

$

$

Currently unavailable

61

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

62

Murray 015X88MA

Nut, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

67

Murray 45174

Nut, 5/16-18

$

$

Currently unavailable

68

Murray 94310

Guide-Stack Pulley Belt

$7.99

$

Usually ships in 2-12 days

0

69

Murray 706

Zerk, Grease

$2.49

$

Usually ships in 2-12 days

0

70

Murray 95405

Axle, Cast Machined

$

$

Currently unavailable

71

Murray 95182

Spindle, Long RH

$

$

Currently unavailable

72

Murray 95183

Spindle, Long LH

$

$

Currently unavailable

73

Murray 092527MA

Bearing, Spindle

$6.49

$

In Stock, only 4 left!

0

74

Murray 17X113MA

Washer, .766IDx1.62ID

$3.99

$

In Stock, only 2 left!

0

75

Murray 0011X3MA

E-Ring

$5.49

$

In Stock, Qty 20+

0

76

Murray 17X195MA

Washer, Flat

$4.99

$

In Stock, Qty 5

0

77

Murray 94007

Hanger, Axle

$

$

Currently unavailable

78

Murray 690199

Hanger, Deck RH

$

$

Currently unavailable

79

Murray 690198

Hanger, Deck LH

$

$

Currently unavailable

80

Murray 180113MA

Screw, 5/16-18 x 3.00

$3.99

$

Usually ships in 2-12 days

0

81

Murray 015X88MA

Nut, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

82

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

83

Murray 95328

Drag Link, RH

$

$

Currently unavailable

84

Murray 95329

Drag Link, LH

$

$

Currently unavailable

86

Murray 015X84MA

Nut, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

87

Murray 009X57MA

Shoulder Bolt

$9.99

$

In Stock, Qty 11

0

88

Murray 015X84MA

Nut, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

89

Murray 01X111MA

Screw, 3/8-16 x 1.50

$4.49

$

In Stock, only 1 left!

0

90

Murray 17X104MA

Flatwasher
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

91

Murray 017X53MA

Flatwasher
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0
