40319x98B - Murray 40" Lawn Tractor (2000) Mower Suspension Assembly Parts Diagram

40" Lawn Tractor

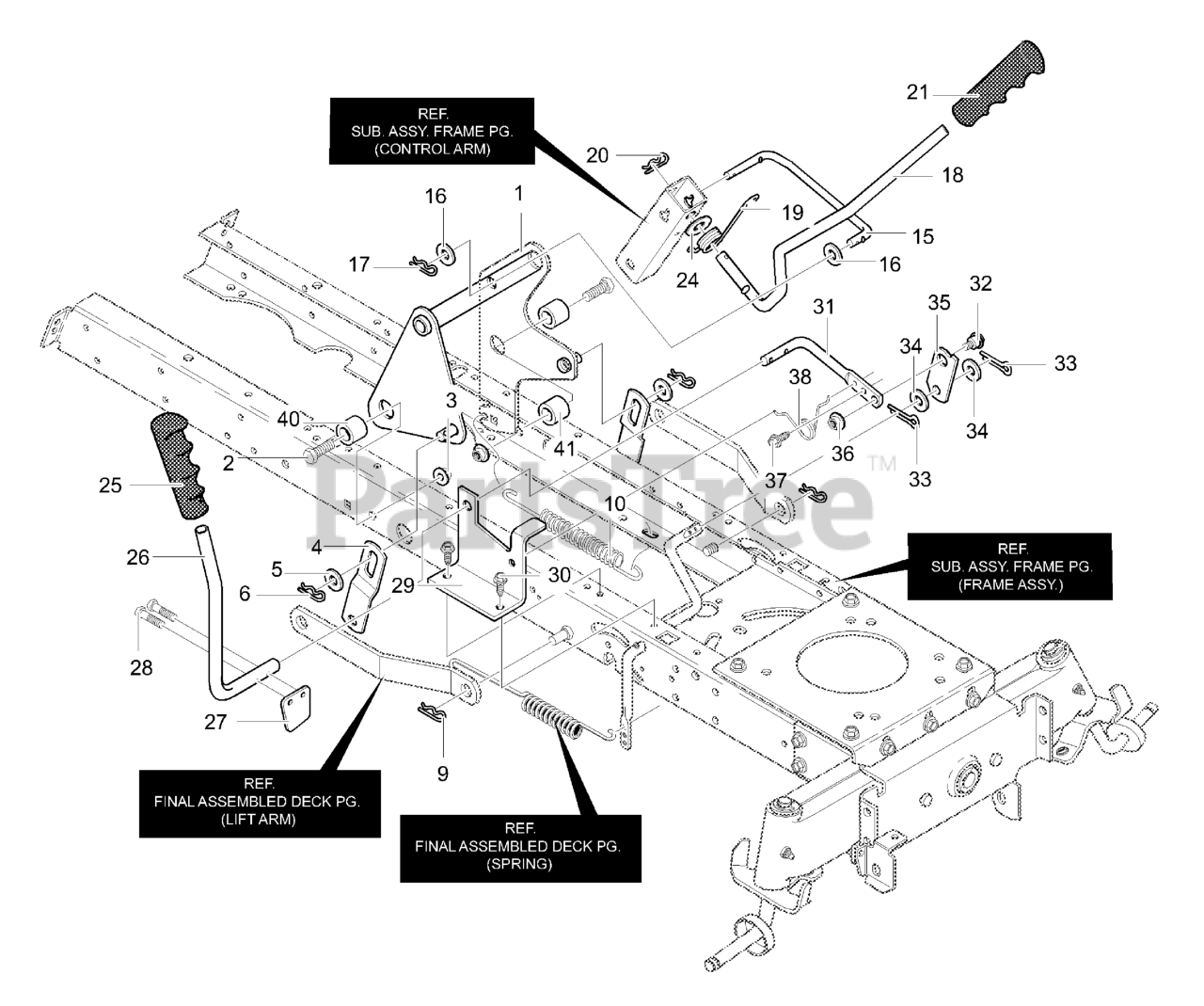

Mower Suspension Assembly Parts Diagram

  • Title
1

Murray 95233-853

Assembly, Lift Arm

$

$

Currently unavailable

2

Murray 711917MA

Screw, 1/2-13x1.50

$3.99

$

Usually ships in 2-12 days

0

3

Murray 711918

Nut, 1/2-13 Lock

$

$

Currently unavailable

4

Murray 94262-853

Bracket. Lift Link

$

$

Currently unavailable

5

Murray 711617

Washer, Flat

$5.49

$

In Stock, Qty 11

0

6

Murray 711676

Hair Pin

$

$

Currently unavailable

9

Murray 711676

Hair Pin

$

$

Currently unavailable

10

Murray 710235

Spring, Extension

$4.49

$

Usually ships in 2-12 days

0

15

Murray 711981

Link-Lift Handle

$

$

Currently unavailable

16

Murray 711617

Washer, Flat

$5.49

$

In Stock, Qty 11

0

17

Murray 711676

Hair Pin

$

$

Currently unavailable

18

Murray 690532

Handle, Lift

$335.99

$

Usually ships in 2-12 days

0

19

Murray 710111

Torsion Spring

$18.99

$

Usually ships in 2-12 days

0

20

Murray 711676

Hair Pin

$

$

Currently unavailable

21

Murray 094497

Grip, Lift
(Superseded to 094497MA)

$6.49

$

Usually ships in 2-12 days

0

24

Murray 711616

Washer, Flat

$

$

Not available

25

Murray 94496MA

Grip, PTO
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

26

Murray 712034

PTO Handle

$50.99

$

Usually ships in 2-12 days

0

27

Murray 95284MA

Paddle, Switch
(Superseded to 094022ZMA)

$3.99

$

In Stock, only 3 left!

0

28

Murray 711621MA

Screw, Thread Form

$3.99

$

Usually ships in 2-12 days

0

29

Murray 94018-853

Bracket, PTO

$

$

Currently unavailable

30

Murray 780055MA

Screw, 5/16-18 x 0.50
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

31

Murray 95283MA

Lever, PTO

$54.99

$

Usually ships in 2-12 days

0

32

Murray 711613MA

Bolt, Shoulder 3/8-16

$1.99

$

Usually ships in 2-12 days

0

33

Murray 711659

Hair Pin

$1.99

$

Usually ships in 2-12 days

0

34

Murray 711615MA

Washer, Flat

$1.99

$

Usually ships in 2-12 days

0

35

Murray 95282

Link PTO

$

$

Not available

36

Murray 711622

Nut, 3/8-16

$

$

Currently unavailable

37

Murray 711606MA

Screw 5/16-18x.75

$7.99

$

In Stock, only 2 left!

0

38

Murray 710141

Torsion Spring

$11.99

$

In Stock, only 1 left!

0

40

Murray 94309

Spacer

$

$

Currently unavailable

41

Murray 56150MA

Spacer, Sleeve

$5.99

$

Usually ships in 2-12 days

0
