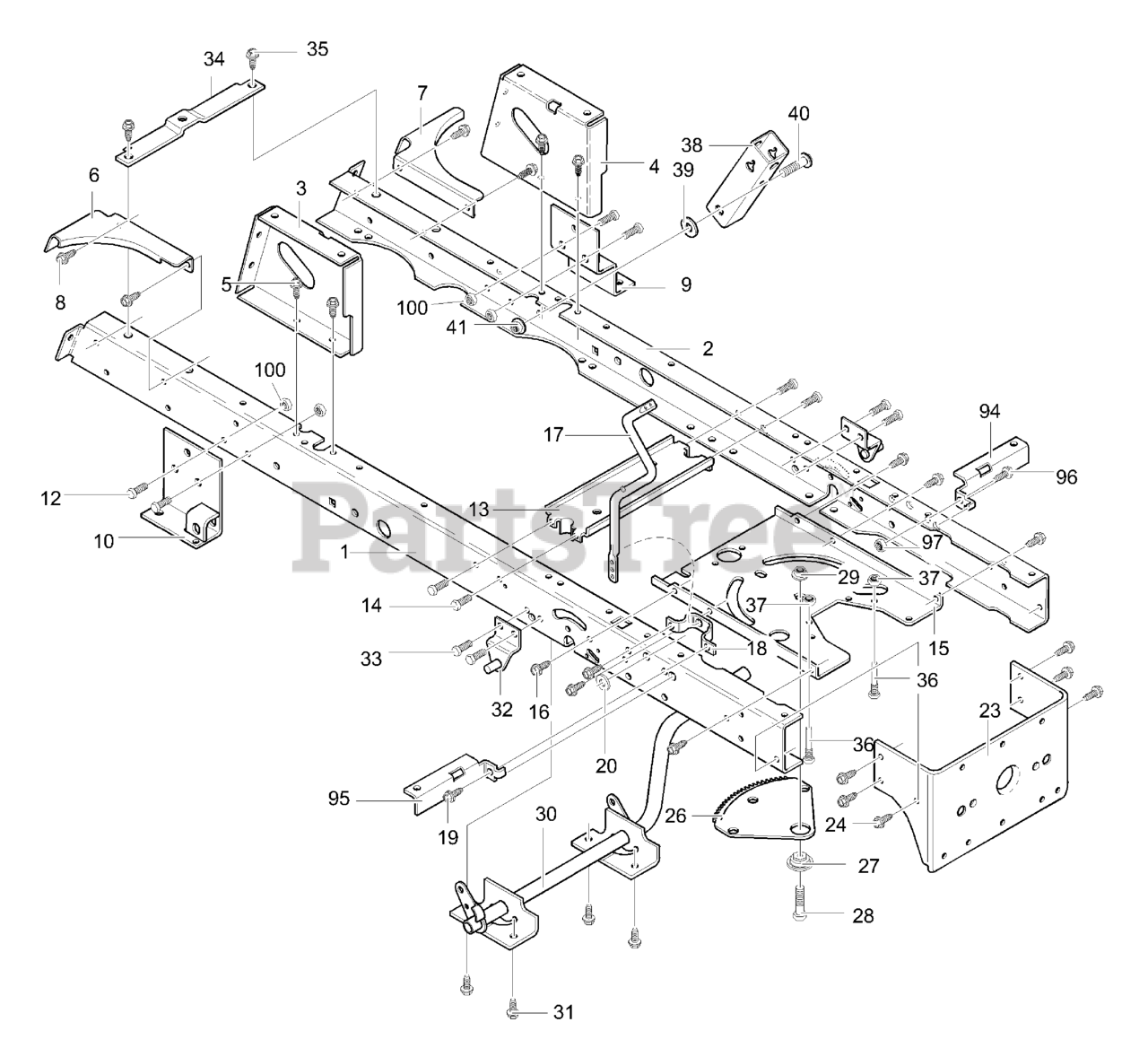

40319x88A - Murray 40" Lawn Tractor (2000) Frame Assembly (part 1) Parts Diagram

40" Lawn Tractor

Frame Assembly (part 1) Parts Diagram

  • Title
1

Murray 94564

Frame, Rail RH

$

$

Currently unavailable

2

Murray 94565

Frame, Rail LH
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

3

Murray 94634

Support, Seat RH

$3.49

$

Usually ships in 2-12 days

0

4

Murray 94633

Support, Seat LH

$

$

Currently unavailable

5

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

6

Murray 94561

Brace, Right Back Plate

$

$

Currently unavailable

7

Murray 94562

Brace, Left Back Plate

$

$

Currently unavailable

8

Murray 26X249MA

Screw, 5/16-18 x 0.75

$

$

Not available

9

Murray 94234

Bracket, Right Transaxle

$3.49

$

Usually ships in 2-12 days

0

10

Murray 95396

Assy., Shift Brace

$

$

Currently unavailable

12

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

13

Murray 94237

Assy., Idler Mount, Front

$3.49

$

Usually ships in 2-12 days

0

14

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

15

Murray 690551

Plate, Steering

$6.99

$

Usually ships in 2-12 days

0

16

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

17

Murray 690394

Crank, PTO

$4.99

$

Usually ships in 2-12 days

0

18

Murray 94005

Bracket, Bell Crank

$16.99

$

Usually ships in 2-12 days

0

19

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

20

Murray 120395

Washer, Flat

$

$

Not available

23

Murray 94013

Bracket, Hanger Rear

$0.99

$

Usually ships in 2-12 days

0

24

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

26

Murray 094121MA

Gear, Sector

$

$

Not available

27

Murray 094123MA

Bearing, Sector Gear

$12.99

$

In Stock, only 1 left!

0

28

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

29

Murray 15X113MA

Nut, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

30

Murray 94241

Clutch/Brake Pedal

$

$

Currently unavailable

31

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

32

Murray 94285

Assembly, Suspension Bracket

$

$

Currently unavailable

33

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

34

Murray 94566

Brace, Rail

$

$

Currently unavailable

35

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

36

Murray 093349MA

Zinc Screw Guide

$4.49

$

Usually ships in 2-12 days

0

37

Murray 015X79MA

Nut, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

38

Murray 094015

Bracket, Pivot

$

$

Currently unavailable

39

Murray 000845

Washer, Flat

$6.49

$

Usually ships in 2-12 days

0

40

Murray 009X53MA

Bolt, Shoulder 3/8-16

$6.99

$

Usually ships in 2-12 days

0

41

Murray 015X84MA

Nut, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

94

Murray 690036

Bracket, Left Seat Deck

$

$

Currently unavailable

95

Murray 690035

Bracket, Right Seat Deck

$34.99

$

Usually ships in 2-12 days

0

96

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

97

Murray 015X79MA

Nut, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

100

Murray 015X88MA

Nut, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14
