40319x51B - Murray 40" Lawn Tractor (2000) Motion Drive Parts Diagram

40" Lawn Tractor

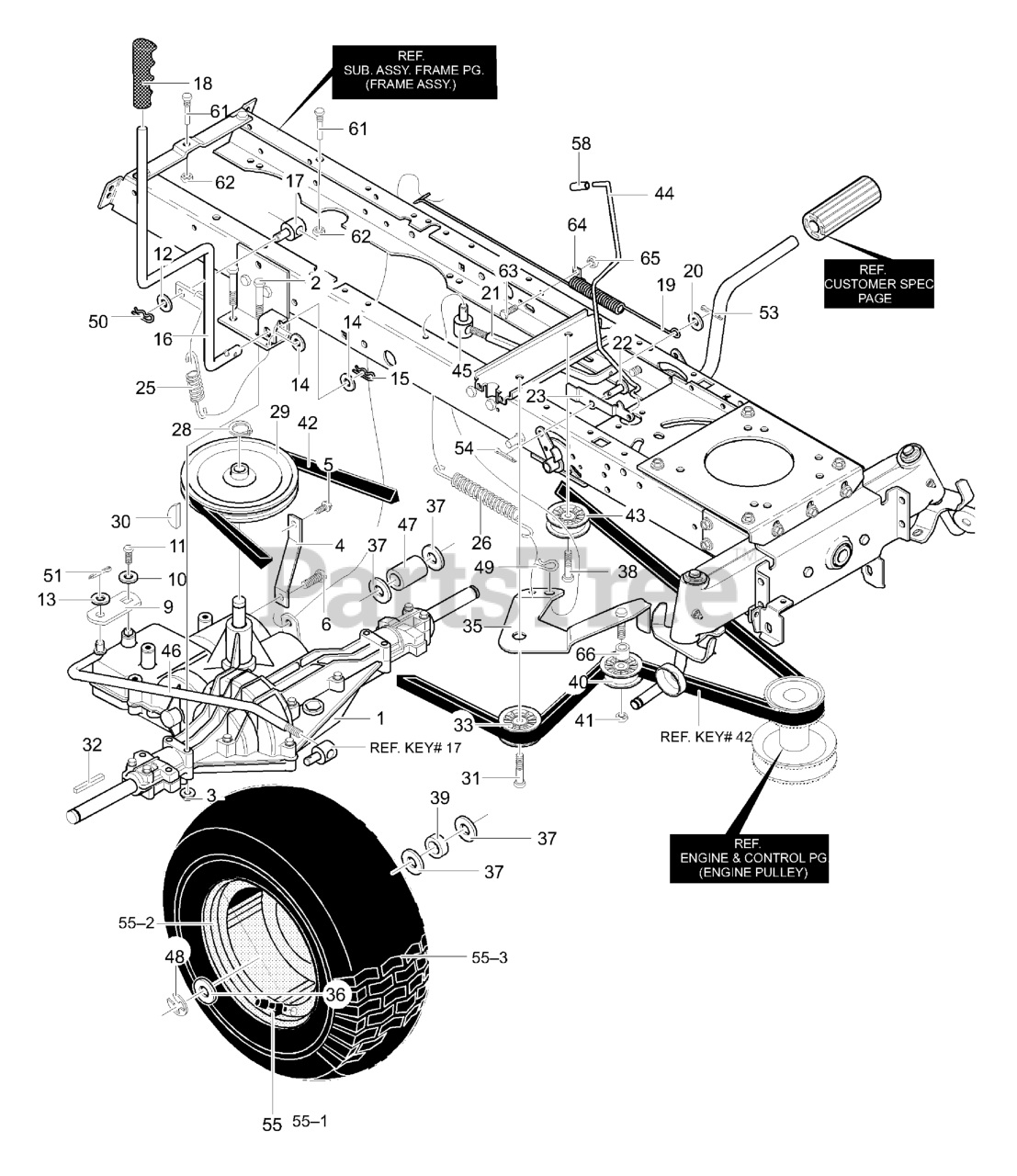

Motion Drive Parts Diagram

  • Title

1

Transaxle, MST206 **

$

$

Not available

2

Murray 711669

Screw, 5/16-18 x 2.50

$1.99

$

Usually ships in 2-12 days

0

3

Murray 711634MA

Nut, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

4

Murray 94620-853

Bracket, Stabilizer

$

$

Currently unavailable

5

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

6

Murray 710268

Screw, 5/16-18 x 0.75

$12.99

$

In Stock, only 3 left!

0

9

Murray 94227

Bracket, Shift

$

$

Currently unavailable

10

Murray 711895

Washer, Transaxle

$

$

Currently unavailable

11

Murray 01X145MA

Screw, 1/4-28x.750

$4.49

$

Usually ships in 2-12 days

0

12

Murray 583409MA

Washer, Flat

$4.49

$

Usually ships in 2-12 days

0

13

Murray 71072

Washer

$

$

Not available

14

Murray 711894

Flatwasher

$

$

Currently unavailable

15

Murray 711899

Hair Pin

$

$

Currently unavailable

16

Murray 690087

Shift Lever

$

$

Currently unavailable

17

Murray 711591

Nut, Adjust

$335.99

$

Usually ships in 2-12 days

0

18

Murray 094497

Grip
(Superseded to 094497MA)

$6.49

$

Usually ships in 2-12 days

0

19

Murray 95424

Spring, Brake

$4.99

$

Usually ships in 2-12 days

0

20

Murray 711921

Washer, Flat

$

$

Currently unavailable

21

Murray 690016

Rod, Clutch

$78.99

$

Usually ships in 2-12 days

0

22

Murray 711903

Pin, Clevis

$

$

Currently unavailable

23

Murray 95290

Latch, Park Brake

$3.99

$

Usually ships in 2-12 days

0

25

Murray 782223MA

Spring

$

$

Not available

26

Murray 711522

Spring, Tension

$26.99

$

Usually ships in 2-12 days

0

28

Murray 0011X7MA

Ring, Ret

$3.99

$

In Stock, Qty 8

0

29

Murray 94571

Pulley, 9.0 ODV4L

$

$

Currently unavailable

30

Murray 50795MA

Key, Hi Pro 606

$5.99

$

In Stock, only 1 left!

0

31

Murray 711905MA

Screw, 3/8-16 x 1.25

$3.99

$

Usually ships in 2-12 days

0

32

Murray 52928MA

Key, Square

$1.99

$

Usually ships in 2-12 days

0

33

Murray 95531

Pulley, Idler
(Superseded to 95531GS)

$2.99

$

Usually ships in 2-12 days

0

35

Murray 94238-853

Assy, Idler Arm Traction

$

$

Currently unavailable

36

Murray 711758

Washer, Flat

$26.99

$

In Stock, only 1 left!

0

37

Murray 711904

Washer, Flat

$

$

Currently unavailable

38

Murray 711905MA

Screw, 3/8-16 x 1.25

$3.99

$

Usually ships in 2-12 days

0

39

Murray 95418MA

Spacer

$5.99

$

Usually ships in 2-12 days

0

40

Murray 690409MA

Pulley, Idler

$19.99

$

In Stock, Qty 13

0

41

Murray 711920MA

Nut, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

42

Murray 94608MA

Belt, V 4L 114.12

$44.99

$

Usually ships in 2-12 days

0

43

Murray 95531

Pulley, Idler
(Superseded to 95531GS)

$2.99

$

Usually ships in 2-12 days

0

44

Murray 690047

Park Brake Control Rod
(Superseded to 699672)

$199.99

$

Usually ships in 2-12 days

0

45

Murray 711898

Nut, 5/16-18 Adjusting

$

$

Currently unavailable

46

Murray 690027

Rod, Shift Link

$10.99

$

Usually ships in 2-12 days

0

47

Murray 95419

Spacer

$

$

Currently unavailable

48

Murray 0011X3MA

E-Ring

$5.49

$

In Stock, Qty 20+

0

49

Murray 711659

Pin, Hair

$1.99

$

Usually ships in 2-12 days

0

50

Murray 711682MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

51

Murray 071081

Pin, Cotter

$3.49

$

Usually ships in 2-12 days

0

53

Murray 071081

Pin, Cotter

$3.49

$

Usually ships in 2-12 days

0

54

Murray 071081

Pin, Cotter

$3.49

$

Usually ships in 2-12 days

0

55

Murray 692290

Tire & Rim

$

$

Currently unavailable

55-1

Murray 338512

Valve Stem

$

$

Not available

55-2

Murray 338524

Rim

$

$

Currently unavailable

55-3

Murray 338526

Tire

$

$

Currently unavailable

58

Murray 335980

Cap, Dump

$

$

Currently unavailable

61

Murray 020619MA

Screw Guide

$4.49

$

Usually ships in 2-12 days

0

62

Murray 710026

Nut, 1/4-20

$

$

Not available

63

Murray 313686MA

Screw, 1/4-20x.50

$3.99

$

In Stock, only 2 left!

0

64

Murray 711742

Retainer

$18.99

$

Usually ships in 2-12 days

0

65

Murray 780285MA

Nut, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 9

0

66

Murray 690369MA

Spacer 1/2 to 17MM

$

$

Not available

--

Murray 094618MA

Hubcap

$5.99

$

In Stock, Qty 6

0
