40318x50C - Murray 40" Lawn Tractor (2001) Deck Assembly (part 2) Parts Diagram

40" Lawn Tractor

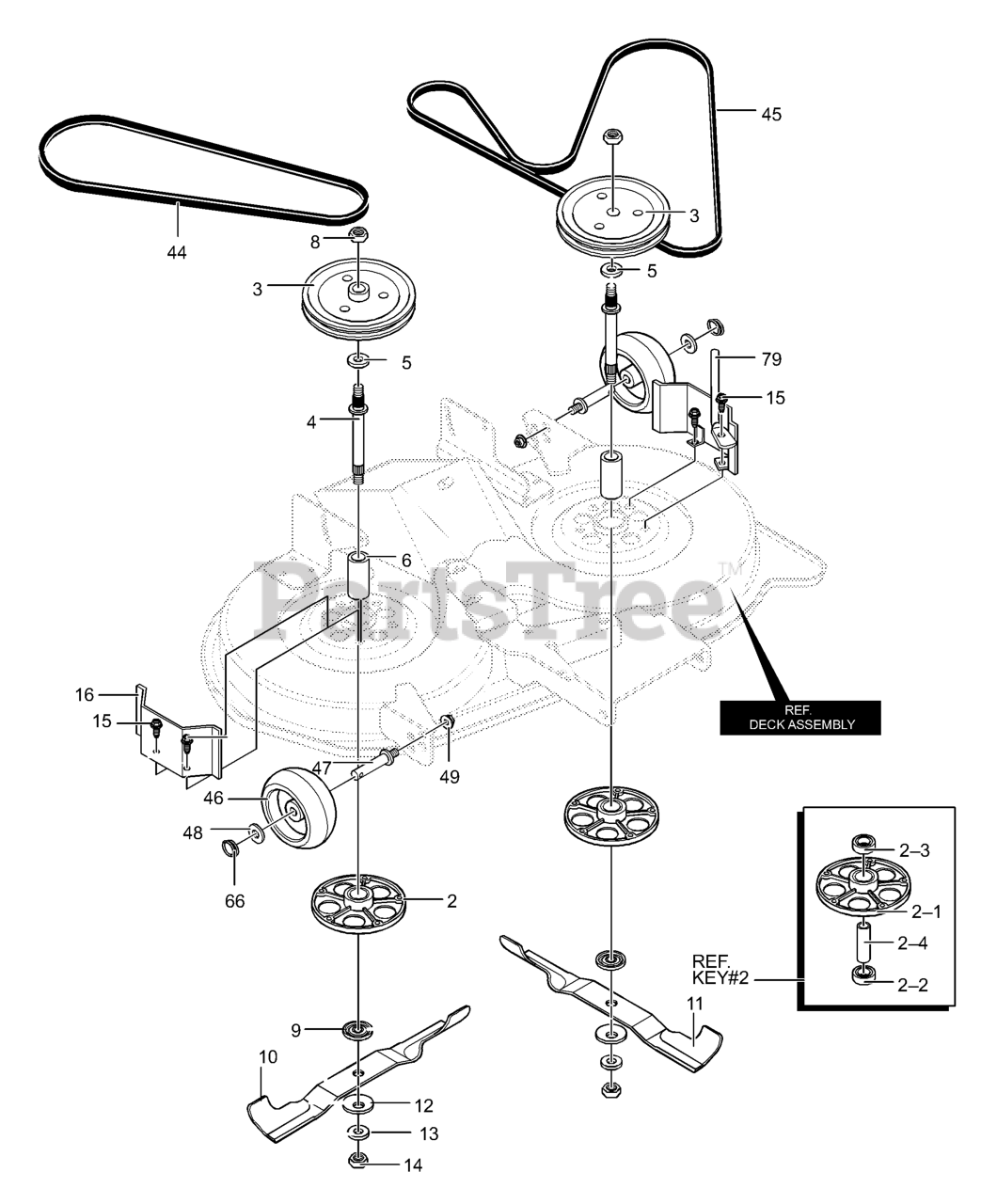

Deck Assembly (part 2) Parts Diagram

  • Title
2

Murray 094305

Assembly, Jackshaft Housing

$112.99

$

Usually ships in 2-12 days

0

2-1

Murray 94282MA

Housing, Jackshaft

$75.99

$

Usually ships in 2-12 days

0

2-2

Murray 092282MA

Bearing, Lower Jackshaft

$11.99

$

Usually ships in 2-12 days

0

2-3

Murray 092281MA

Bearing, Upper Jackshaft

$12.99

$

Usually ships in 2-12 days

0

2-4

$17.99

$

Usually ships in 2-12 days

0

3

Murray 690020MA

Pulley, Deck

$67.99

$

In Stock, only 2 left!

0

4

Murray 091922MA

Jackshaft
(Superseded to 491922MA)

$22.99

$

In Stock, only 1 left!

0

5

Murray 17X165MA

Flatwasher

$16.99

$

In Stock, only 4 left!

0

6

$5.49

$

Usually ships in 2-12 days

0

8

Murray 711910

Nut, 9/16-18

$

$

Currently unavailable

9

Murray 94207MA

Adapter, Deck

$23.99

$

Usually ships in 2-12 days

0

10

Murray 690499

Blade, LH
(Superseded to 698454)

$47.99

$

Usually ships in 2-12 days

0

11

Murray 690500

Blade, RH

$4.49

$

Usually ships in 2-12 days

0

12

Murray 17X166MA

Washer, Bellville

$13.99

$

In Stock, Qty 18

0

13

Murray 17X165MA

Flatwasher

$16.99

$

In Stock, only 4 left!

0

14

Murray 711910

Nut, 9/16-18

$

$

Currently unavailable

15

Murray 711911

Screw, 3/8-16 x 1.00

$

$

Currently unavailable

16

Murray 94288-821

Pulley Cover

$

$

Currently unavailable

44

Murray 710231

Belt, V 46.5LG

$155.99

$

Usually ships in 2-12 days

0

45

Murray 690071

Belt, Deck

$

$

Currently unavailable

46

Murray 092683MA

Gauge Wheel

$15.99

$

In Stock, only 3 left!

0

47

Murray 711746

Shoulder Bolt

$7.99

$

Usually ships in 2-12 days

0

48

Murray 711615MA

Flatwasher

$1.99

$

Usually ships in 2-12 days

0

49

Murray 711622

Nut, 3/8-16

$

$

Currently unavailable

66

Murray 711764MA

Circle Pin
(Superseded to 031X11MA)

$4.49

$

In Stock, only 2 left!

0

79

Murray 95280

Rod, Belt Guide

$

$

Currently unavailable
