40318x50A - Murray 40" Lawn Tractor (1999) Steering Assembly Parts Diagram

40" Lawn Tractor

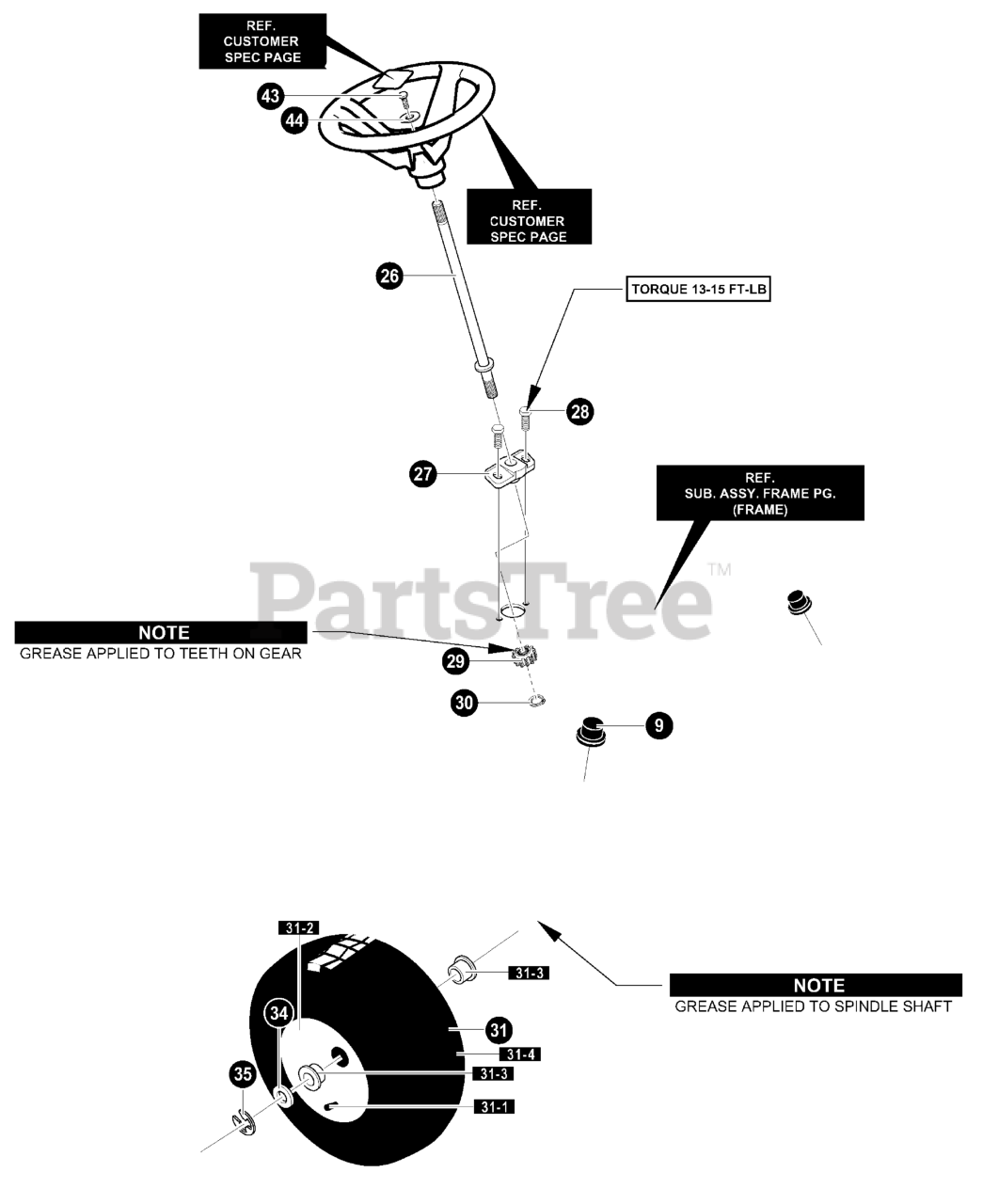

Steering Assembly Parts Diagram

  • Title

9

Murray 094618MA

DUST HUB CAP

$5.99

$

Usually ships in 2-12 days

0

26

Murray 094520

SHAFT, STEERING

$64.99

$

Usually ships in 2-12 days

0

27

Murray 094124MA

BEARING-LOWER

$14.99

$

In Stock, only 1 left!

0

28

Murray 711606MA

SCREW, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

29

Murray 094122

GEAR PINNION

$

$

Not available

30

Murray 710102

RING, RET E.

$15.99

$

Usually ships in 2-12 days

0

31

Murray 692641

TIRE & RIM, 15X6.0-6

$

$

Currently unavailable

31-1

Murray 338512

VALVE STEM

$

$

Not available

31-2

Murray 338517MA

RIM

$93.99

$

In Stock, only 1 left!

0

31-3

Murray 338513

BEARING

$

$

Not available

31-4

Murray 338514

TIRE, 15X6X6

$

$

Currently unavailable

34

Murray 711758

WASHER, FLAT .765 x 1.81 x .059

$26.99

$

In Stock, only 1 left!

0

35

Murray 710103

E-RING

$8.99

$

Usually ships in 2-12 days

0

43

Murray 711719

SCREW, 1/4-20X.75 HHC

$1.49

$

Usually ships in 2-12 days

0

44

Murray 711663MA

WASHER, FLAT .281X1.25X.06

$3.49

$

Usually ships in 2-12 days

0
