40318x50A - Murray 40" Lawn Tractor (1999) Frame Assembly (part 2) Parts Diagram

40" Lawn Tractor

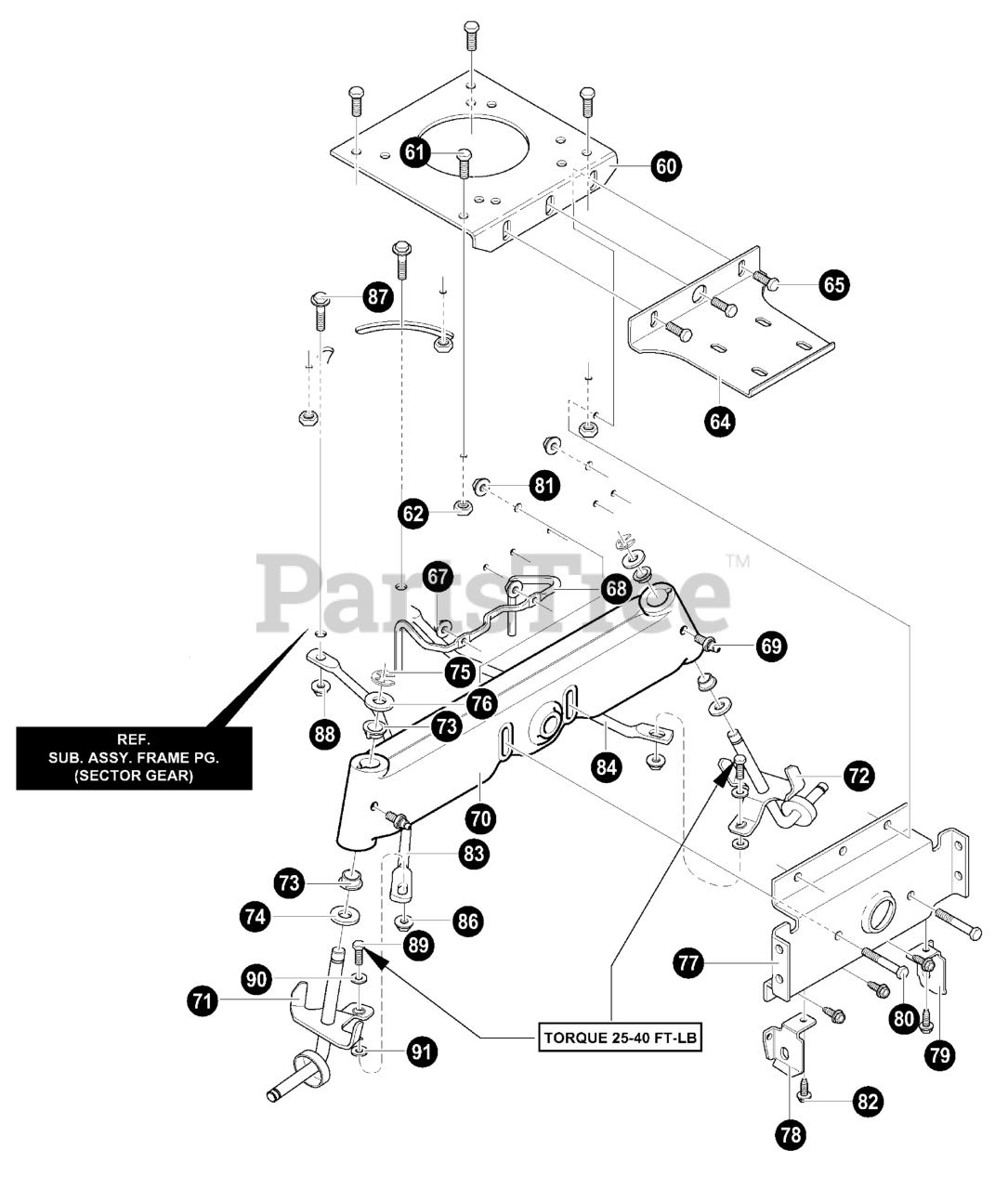

Frame Assembly (part 2) Parts Diagram

  • Title

60

Murray 94006

ENGINE PLATE

$

$

Currently unavailable

61

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

62

Murray 710205

NUT, 5/16-18 WDFLLK 15X88

$14.99

$

Usually ships in 2-12 days

0

64

Murray 94901

BRACKET, MUFFLER MOUNT

$

$

Currently unavailable

65

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

67

Murray 45174

NUT, 5/16-18 HEXWDFLLK WHIZ

$

$

Currently unavailable

68

Murray 94310

GUIDE-STACK PULLEY BELT

$7.99

$

Usually ships in 2-12 days

0

69

Murray 706

ZERK, GREASE FITTING

$2.49

$

Usually ships in 2-12 days

0

70

Murray 95405

AXLE, CAST MACHINED REBA

$

$

Currently unavailable

71

Murray 95182

SPINDLE, LONG RH

$

$

Currently unavailable

72

Murray 95183

SPINDLE, LONG LH

$

$

Currently unavailable

73

Murray 092527MA

BEARING, SPINDLE

$6.49

$

In Stock, only 4 left!

0

74

Murray 710129

WASHER, .766IDX1.62ID

$

$

Not available

75

Murray 710103

E-RING .574IDX.050X.750SH 11X3

$8.99

$

Usually ships in 2-12 days

0

76

Murray 710088

WASHER, FLAT .765 x 1.81 x .059

$52.99

$

Usually ships in 2-12 days

0

77

Murray 94007

HANGER, AXLE

$

$

Currently unavailable

78

Murray 690199

HANGER, DECK RH

$

$

Currently unavailable

79

Murray 690198

HANGER, DECK LH

$

$

Currently unavailable

80

Murray 180113MA

SCREW, 5/16-18 x 3.00

$3.99

$

Usually ships in 2-12 days

0

81

Murray 710205

NUT, 5/16-18 WDFLLK 15X88

$14.99

$

Usually ships in 2-12 days

0

82

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

83

Murray 95328

DRAG LINK RH

$

$

Currently unavailable

84

Murray 95329

DRAG LINK LH

$

$

Currently unavailable

86

Murray 710140

NUT, 3/8-16 HWDFLLK MACK 15X84

$10.99

$

Usually ships in 2-12 days

0

87

Murray 710440

SHOULDER BOLT 9X57

$

$

Currently unavailable

88

Murray 710140

NUT, 3/8-16 HWDFLLK MACK 15X84

$10.99

$

Usually ships in 2-12 days

0

89

Murray 710082

SCREW, 3/8-16 x 1.50

$7.99

$

In Stock, only 1 left!

0

90

Murray 710083

WASHER FLAT .391X1.00X.083

$12.99

$

In Stock, only 2 left!

0

91

Murray 710142

WASHER FLAT .406X.81X16GA

$3.99

$

Usually ships in 2-12 days

0
