40318x50A - Murray 40" Lawn Tractor (1999) Frame Assembly (part 1) Parts Diagram

40" Lawn Tractor

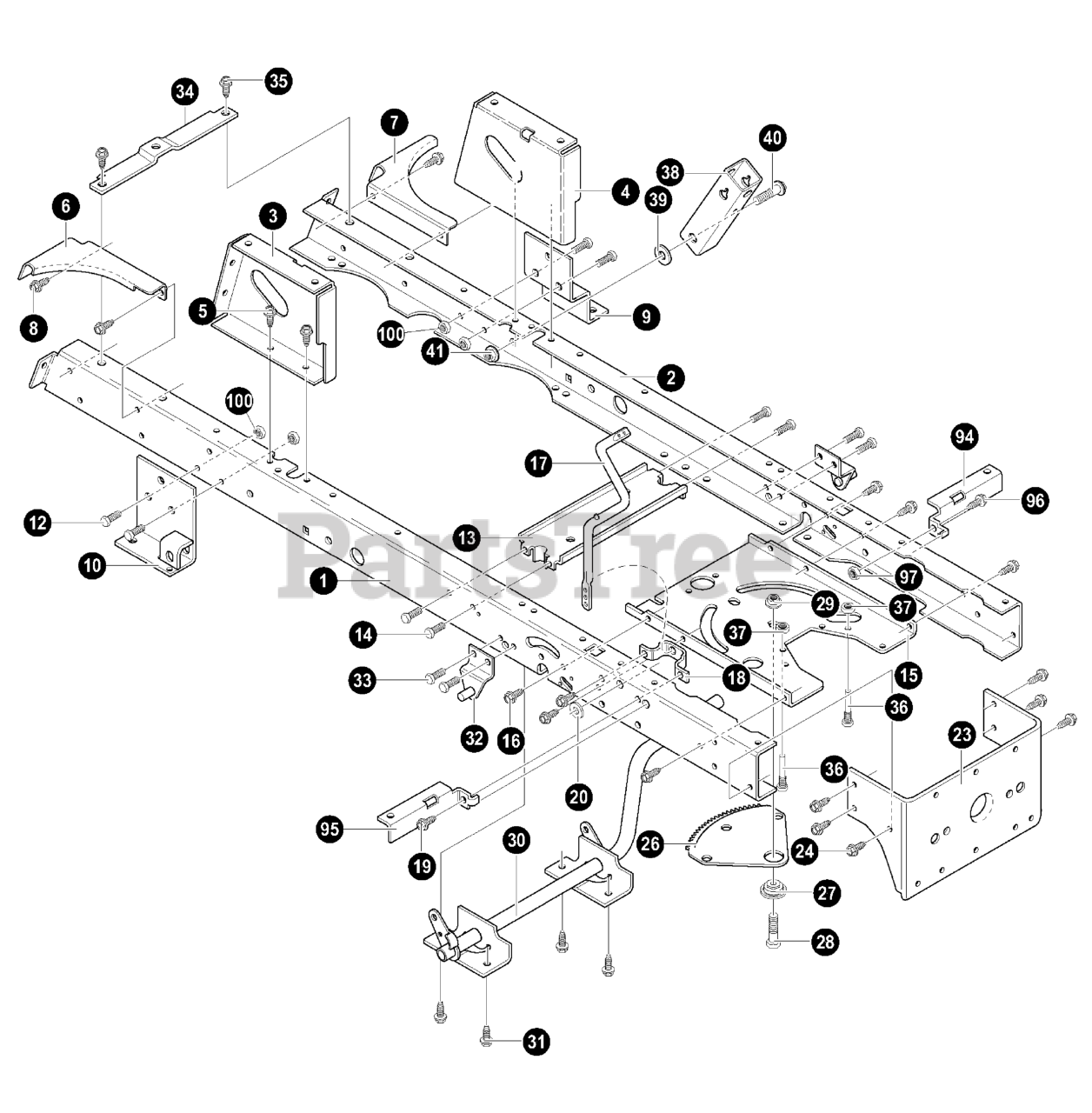

Frame Assembly (part 1) Parts Diagram

  • Title
1

Murray 94564

FRAME, RAIL RH

$

$

Currently unavailable

2

Murray 94565

FRAME, RAIL LH
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

3

Murray 94634

SUPPORT, SEAT RH

$3.49

$

Usually ships in 2-12 days

0

4

Murray 94633

SUPPORT, SEAT LH

$

$

Currently unavailable

5

Murray 710079

SCREW 5/16-18X.75 HHWATAP

$

$

Not available

6

Murray 94561

BRACE, BACKPLATE RH

$

$

Currently unavailable

7

Murray 94562

BRACE, BACKPLATE LH

$

$

Currently unavailable

8

Murray 710079

SCREW 5/16-18X.75 HHWATAP

$

$

Not available

9

Murray 94234

BRACKET, T/A RH VST, LH-MST

$3.49

$

Usually ships in 2-12 days

0

10

Murray 95396

ASSY., SHIFT BRACE

$

$

Currently unavailable

12

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

13

Murray 94237

ASM. IDLER MOUNT, FRONT

$3.49

$

Usually ships in 2-12 days

0

14

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

15

Murray 690551

PLATE, STEERING

$6.99

$

Usually ships in 2-12 days

0

16

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

17

Murray 690394

CRANK, PTO

$4.99

$

Usually ships in 2-12 days

0

18

Murray 94005

BRACKET, BELL CRANK

$16.99

$

Usually ships in 2-12 days

0

19

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

20

Murray 120395

WASHER, FLAT .469X.92X.065

$

$

Not available

23

Murray 94013

BRACKET, HANGER REAR

$0.99

$

Usually ships in 2-12 days

0

24

Murray 710079

SCREW, 5/16-18 x .75 HHWATAP

$

$

Not available

26

Murray 094121MA

GEAR, SECTOR

$

$

Not available

27

Murray 094123MA

BEARING, SECTOR GEAR

$12.99

$

In Stock, only 1 left!

0

28

Murray 710312

SCREW, 5/16-18 x 1.00

$8.49

$

Usually ships in 2-12 days

0

29

Murray 710105

NUT, 5/16-18 HEXKEPS 15X113

$

$

Currently unavailable

30

Murray 94241

CLUTCH/BRAKE PEDAL

$

$

Currently unavailable

31

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

32

Murray 94285

BRACKET, SUSPENSION ASM.

$

$

Currently unavailable

33

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

34

Murray 94566

BRACE, RAIL

$

$

Currently unavailable

35

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

36

Murray 093349MA

ZINC SCREW GUIDE

$4.49

$

Usually ships in 2-12 days

0

37

Murray 710204

NUT, 5/16-18 HEXWDFLLK WHIZ

$5.49

$

Usually ships in 2-12 days

0

38

Murray 094015

BRACKET, PIVOT

$

$

Currently unavailable

39

Murray 000845

WASHER, FLAT .390X1.25X.119

$6.49

$

Usually ships in 2-12 days

0

40

Murray 710000

BOLT, .562X1.563 HHSH 3/8-16

$10.99

$

Usually ships in 2-12 days

0

41

Murray 710140

NUT, 3/8-16 HWDFLLK MACK 15X84

$10.99

$

Usually ships in 2-12 days

0

94

Murray 690036

BRACKET, SEAT DECK LH

$

$

Currently unavailable

95

Murray 690035

BRACKET, SEAT DECK RH

$34.99

$

Usually ships in 2-12 days

0

96

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

97

Murray 710204

NUT, 5/16-18 HEXWDFLLK WHIZ

$5.49

$

Usually ships in 2-12 days

0

100

Murray 710205

NUT, 5/16-18 WDFLLK

$14.99

$

In Stock, only 1 left!

0
