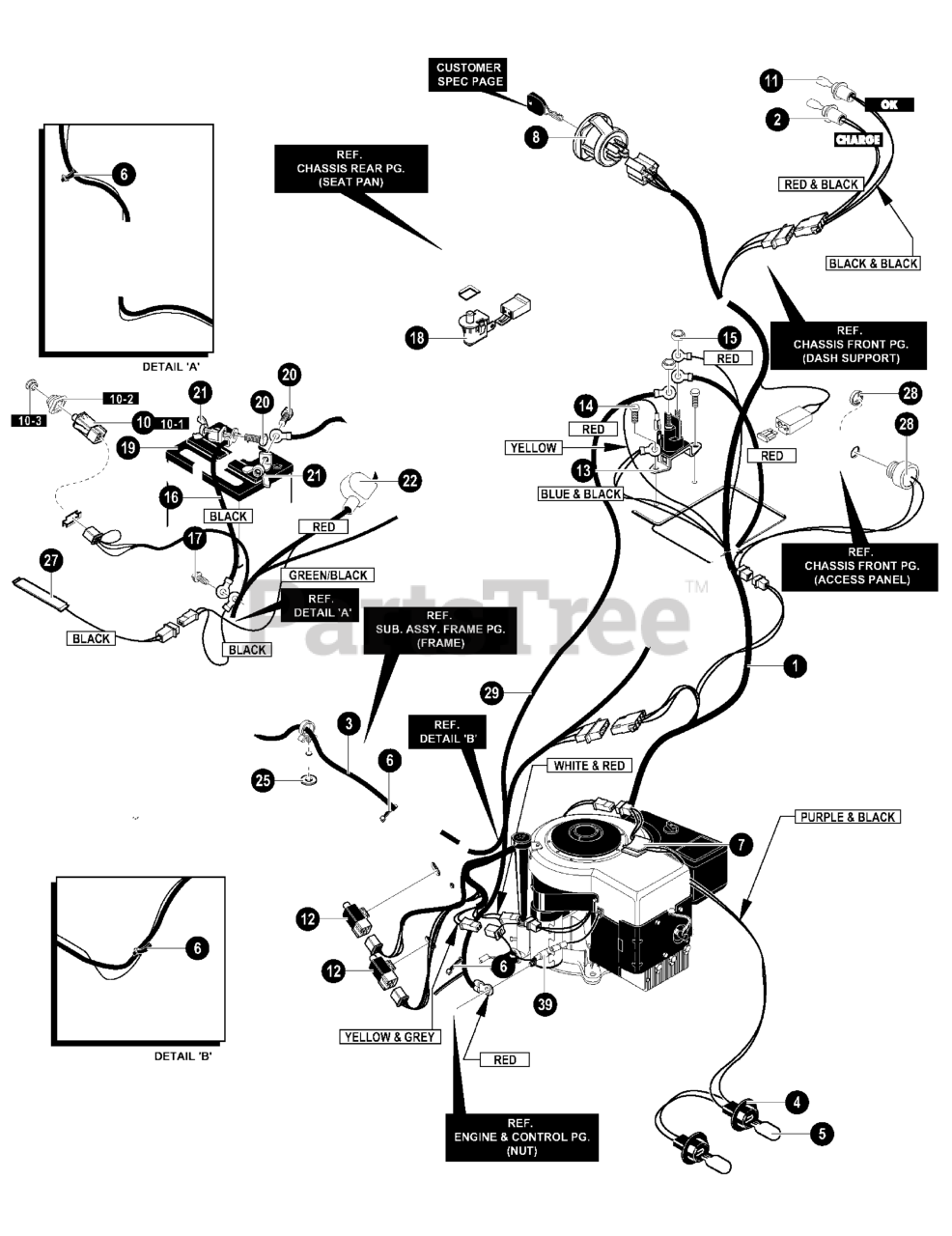

40318x50A - Murray 40" Lawn Tractor (1999) Electrical Assembly Parts Diagram

40" Lawn Tractor

Electrical Assembly Parts Diagram

  • Title
1

Murray 95378

WIRE HARNESS
(Superseded to 95378GS)

$22.99

$

Usually ships in 2-12 days

0

2

Murray 690054

INDICATOR HARNESS

$

$

Currently unavailable

3

Murray 95381

REAR HARNESS

$

$

Currently unavailable

4

Murray 94103

WIRE HARNESS FOR HEADLIGHTS

$

$

Currently unavailable

5

Murray 52572

BULB, HEADLAMP
(Superseded to 52572GS)

$14.99

$

Usually ships in 2-12 days

0

6

Murray 57444

TIE, CABLE BLACK NYLON 5.62L

$

$

Not available

7

Murray 055939MA

WIRE CLIP, ADHESIVE

$4.99

$

Usually ships in 2-12 days

0

8

Murray 094762

SWITCH, IGNITION

$24.99

$

Usually ships in 2-12 days

0

10

Murray 690106MA

ASSY, SWITCH DOUBLE POLE DELTA

$19.99

$

Usually ships in 2-12 days

0

10-1

Murray 320082MA

SWITCH, DOUBLE

$

$

Not available

10-2

Murray 690074MA

BOOT, SWITCH

$5.49

$

Usually ships in 2-12 days

0

10-3

Murray 690075MA

SWITCH CAP

$4.99

$

Usually ships in 2-12 days

0

11

Murray 57769MA

BULB, INDICATOR

$4.49

$

Usually ships in 2-12 days

0

12

Murray 094136MA

SWITCH LIMIT

$12.99

$

Usually ships in 2-12 days

0

13

Murray 094613

SOLENOID

$27.99

$

In Stock, only 1 left!

0

14

Murray 711619

SCREW, 1/4X.50

$1.99

$

Usually ships in 2-12 days

0

15

Murray 711632

NUT, 1/4-20 HEXNYL

$

$

Currently unavailable

16

Murray 95420

WIRE, GROUND

$

$

Currently unavailable

17

Murray 711619

SCREW,1/4X.50

$1.99

$

Usually ships in 2-12 days

0

18

Murray 094159MA

SWITCH, SEAT
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

19

Murray 092739

BATTERY 5 PLATE MAINT FREE

$

$

Currently unavailable

20

Murray 711680

BOLT,1/4-20X.63
(Superseded to 711682)

$7.49

$

In Stock, only 1 left!

0

21

Murray 711636

NUT, WING 1/4-20

$

$

Not available

22

Murray 335417

BOOT, BATTERY

$5.49

$

Usually ships in 2-12 days

0

25

Murray 711666

WASHER, FLAT .250X56X.0478

$

$

Not available

27

Murray 95330MA

TAPE SWITCH

$86.99

$

Usually ships in 2-12 days

0

28

Murray 95391

BUZZER, FOR BAG FULL

$

$

Currently unavailable

29

Murray 711579

WIRE, LEAD SOLENOID TO STARTER

$

$

Currently unavailable

39

Murray 94348

HARNESS ADAPTER

$

$

Currently unavailable

--

Murray 302031MA

15 AMP FUSE

$6.49

$

Usually ships in 2-12 days

0
