40318x50A - Murray 40" Lawn Tractor (1999) Deck Assembly (part 2) Parts Diagram

40" Lawn Tractor

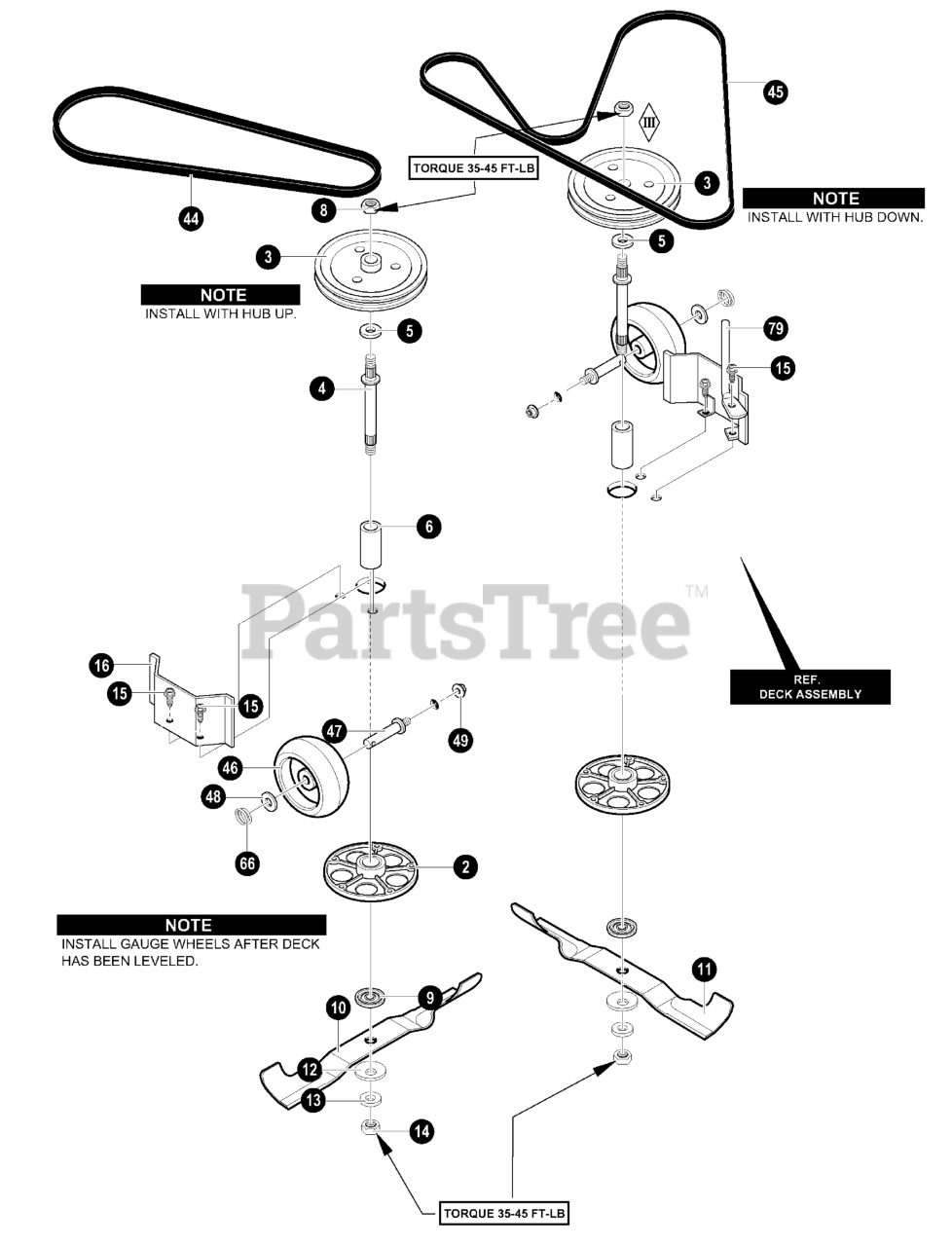

Deck Assembly (part 2) Parts Diagram

  • Title

2

Murray 094305

ASSEMBLY, JACKSHAFT HOUSING

$112.99

$

Usually ships in 2-12 days

0

3

Murray 690020MA

PULLEY, DECK

$67.99

$

In Stock, only 2 left!

0

4

Murray 091922MA

JACKSHAFT
(Superseded to 491922MA)

$22.99

$

In Stock, only 1 left!

0

5

Murray 710117

WASHER, FLAT

$3.99

$

Usually ships in 2-12 days

0

6

Murray 091903MA

SPACER, .625X.875X1.91

$5.49

$

Usually ships in 2-12 days

0

8

Murray 711910

NUT, 9/16-18

$

$

Currently unavailable

9

Murray 94207MA

ADAPTER, DECK/BLADE 40"

$23.99

$

Usually ships in 2-12 days

0

10

Murray 690499

BLADE, LH
(Superseded to 698454)

$47.99

$

Usually ships in 2-12 days

0

11

Murray 690500

BLADE, RH

$4.49

$

Usually ships in 2-12 days

0

12

Murray 710118

WASHER,BELLVILLE

$

$

Currently unavailable

13

Murray 710117

WASHER, FLAT

$3.99

$

Usually ships in 2-12 days

0

14

Murray 711910

NUT, 9/16-18

$

$

Currently unavailable

15

Murray 711911

SCREW,3/8-16X1.00

$

$

Currently unavailable

16

Murray 94288-821

COVER PULLEY

$

$

Currently unavailable

44

Murray 710231

BELT, V 46.5LG

$155.99

$

Usually ships in 2-12 days

0

45

Murray 690071

BELT, DECK

$

$

Currently unavailable

46

Murray 092683MA

GAUGE WHEEL

$15.99

$

In Stock, only 3 left!

0

47

Murray 711746

BOLT, SHOULDER

$7.99

$

Usually ships in 2-12 days

0

48

Murray 711615MA

WASHER, FLAT

$1.99

$

Usually ships in 2-12 days

0

49

Murray 711622

NUT, 3/8-16

$

$

Currently unavailable

66

Murray 711764MA

PIN, CIRCLE
(Superseded to 031X11MA)

$4.49

$

In Stock, only 2 left!

0

79

Murray 95280

ROD, BELT GUIDE

$

$

Currently unavailable
