40316x11B - Murray 40" Lawn Tractor (2000) Mower Suspension Assembly Parts Diagram

40" Lawn Tractor

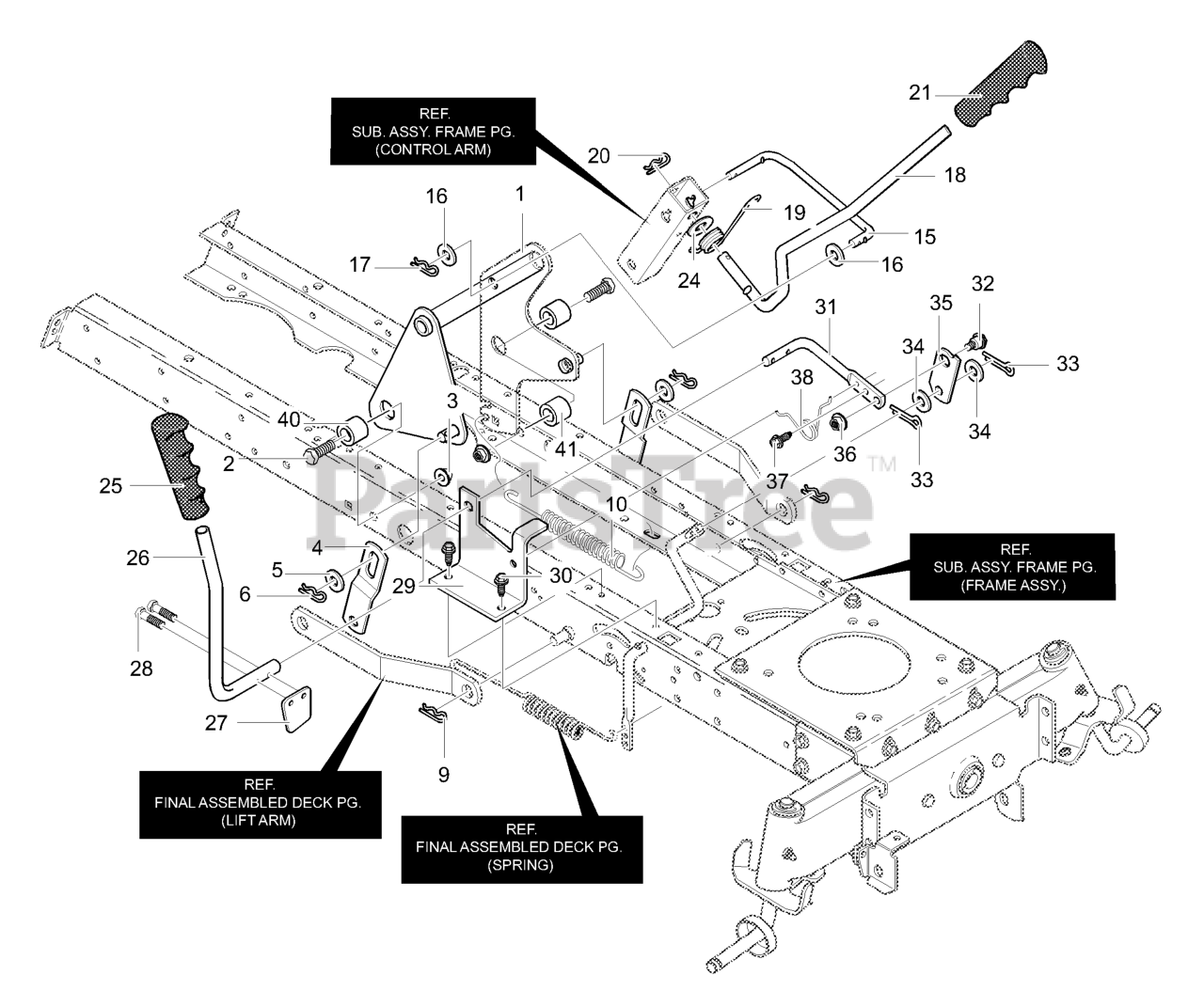

Mower Suspension Assembly Parts Diagram

  • Title
1

Murray MU95233-853

ASSEMBLY, Lift Arm

$

$

Currently unavailable

2

Murray MU711917

SCREW, 1/2-13x1.50

$

$

Currently unavailable

3

Murray MU711918

NUT, 1/2-13 Lock

$

$

Currently unavailable

4

Murray MU94262-853

BRACKET. Lift Link

$

$

Currently unavailable

5

Murray MU711617

WASHER, Flat

$

$

Currently unavailable

6

Murray MU711676

HAIR PIN

$

$

Currently unavailable

9

Murray MU711676

HAIR PIN

$

$

Currently unavailable

10

Murray MU710235

SPRING, Extension

$

$

Currently unavailable

15

Murray MU711981

Link-Lift Handle

$

$

Currently unavailable

16

Murray MU711617

WASHER, Flat

$

$

Currently unavailable

17

Murray MU711676

HAIR PIN

$

$

Currently unavailable

18

Murray MU690532

HANDLE, Lift

$

$

Currently unavailable

19

Murray MU710111

Torsion Spring

$

$

Currently unavailable

20

Murray MU711676

HAIR PIN

$

$

Currently unavailable

21

Murray MU94497

GRIP, Lift

$

$

Currently unavailable

24

Murray MU711616

WASHER, Flat

$

$

Currently unavailable

25

$

$

Currently unavailable

26

Murray MU712035

PTO Handle

$

$

Currently unavailable

27

Murray MU95284

Paddle, Switch

$

$

Currently unavailable

28

Murray MU711621

SCREW, Thread Form

$

$

Currently unavailable

29

Murray MU94018-853

BRACKET, PTO

$

$

Currently unavailable

30

Murray MU780055

SCREW, 5/16-18 x 0.50

$

$

Currently unavailable

31

Murray MU95283

LEVER, PTO

$

$

Currently unavailable

32

Murray MU711613

BOLT, Shoulder 3/8-16

$

$

Currently unavailable

33

Murray MU711659

HAIR PIN

$

$

Currently unavailable

34

Murray MU711615

WASHER, Flat

$

$

Currently unavailable

35

Murray MU95282

Link PTO

$

$

Currently unavailable

36

Murray MU711622

NUT, 3/8-16

$

$

Currently unavailable

37

Murray MU711606

SCREW 5/16-18x.75

$

$

Currently unavailable

38

Murray MU710141

Torsion Spring

$

$

Currently unavailable

40

$

$

Currently unavailable

41

Murray MU56150

SPACER, Sleeve

$

$

Currently unavailable
