40316x11B - Murray 40" Lawn Tractor (2000) Grass Bagger Assembly Parts Diagram

40" Lawn Tractor

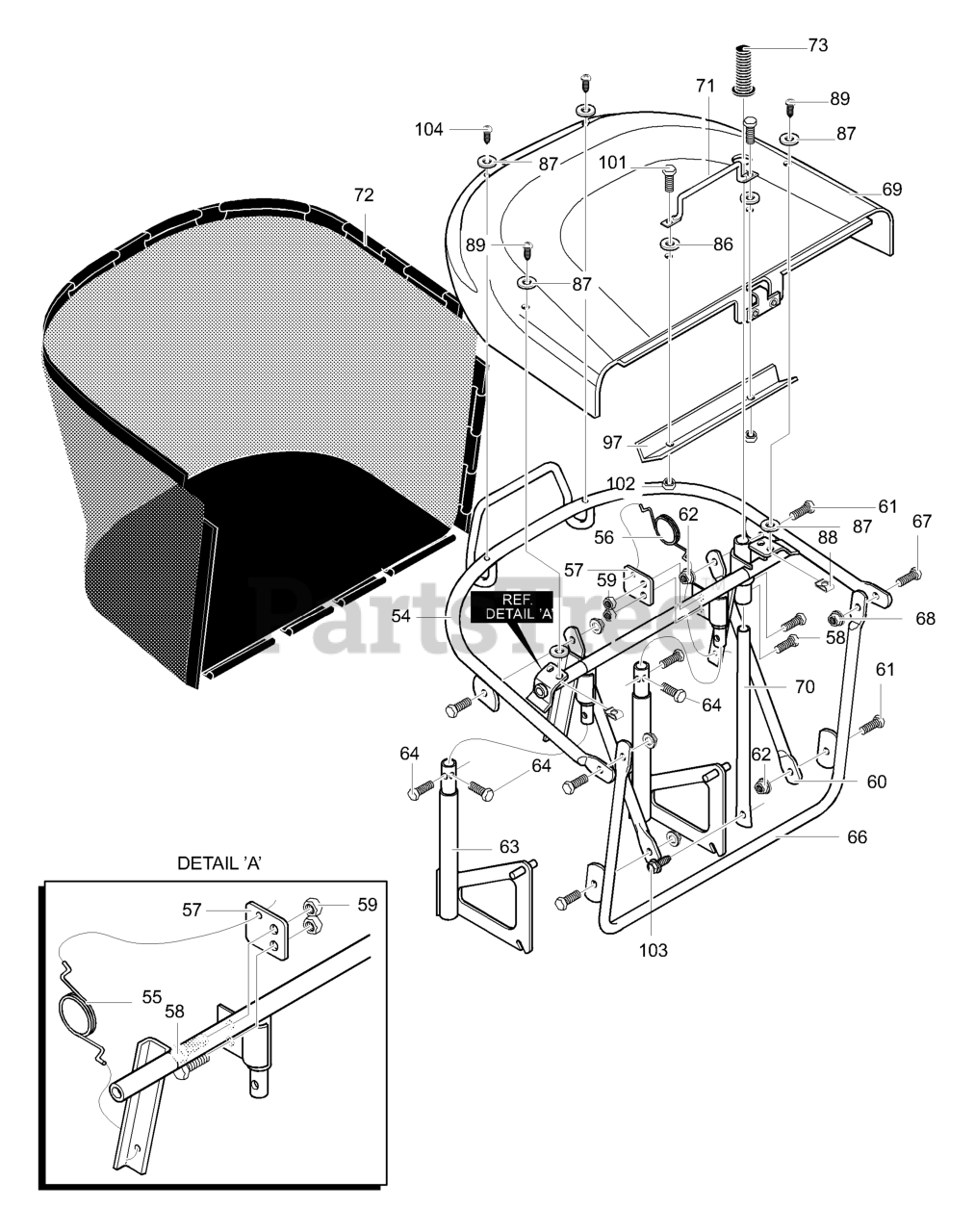

Grass Bagger Assembly Parts Diagram

  • Title
54

Murray MU690044-853

Asm. Weld Upper Frame

$

$

Currently unavailable

55

Murray MU690003

SPRING, Torsion RH

$

$

Currently unavailable

56

Murray MU690004

SPRING, Torsion LH

$

$

Currently unavailable

57

Murray MU95339-853

BRACKET, Spring Collector

$

$

Currently unavailable

58

Murray MU313686

SCREW, 1/4-20x.50

$

$

Currently unavailable

59

Murray MU73826

NUT, 1/4-20

$

$

Currently unavailable

60

Murray MU94850-853

BRACE, Frame Collector

$

$

Currently unavailable

61

Murray MU711909

SCREW, 1/4-20x.62

$

$

Currently unavailable

62

Murray MU711632

NUT, 1/4-20

$

$

Currently unavailable

63

Murray MU95343-853

Asm. Support Collector

$

$

Currently unavailable

64

Murray MU711653

SCREW, 1/4-20x1.50

$

$

Currently unavailable

66

Murray MU95349-853

Asm. Front Frame Collect

$

$

Currently unavailable

67

Murray MU711909

SCREW, 1/4-20x.62

$

$

Currently unavailable

68

Murray MU711632

NUT, 1/4-20

$

$

Currently unavailable

69

Murray MU94908-848

Top Collector Assembly

$

$

Currently unavailable

70

Murray MU690019

HANDLE, Dump Collector

$

$

Currently unavailable

71

Murray MU690506-853

HANDLE, Reba Collector

$

$

Currently unavailable

72

Murray MU95389

Reba Collector Bag

$

$

Currently unavailable

73

Murray MU94854

Rubber Grip

$

$

Currently unavailable

86

$

$

Currently unavailable

87

$

$

Currently unavailable

88

Murray MU578107

NUT, 1/4-20 Tinnerman

$

$

Currently unavailable

89

Murray MU711674

SCREW, 1/4-20x.63

$

$

Currently unavailable

97

Murray MU690010-853

BRACE, Bagger

$

$

Currently unavailable

101

Murray MU712068

SCREW, 1/4-20x1.50

$

$

Currently unavailable

102

Murray MU711632

NUT, 1/4-20

$

$

Currently unavailable

103

Murray MU711741

SCREW, #12x.50

$

$

Currently unavailable

104

Murray MU711741

SCREW, #12x.50

$

$

Currently unavailable
