40307x58B - Murray 40" Lawn Tractor (2000) Rear Chassis Assembly (part 2) Parts Diagram

40" Lawn Tractor

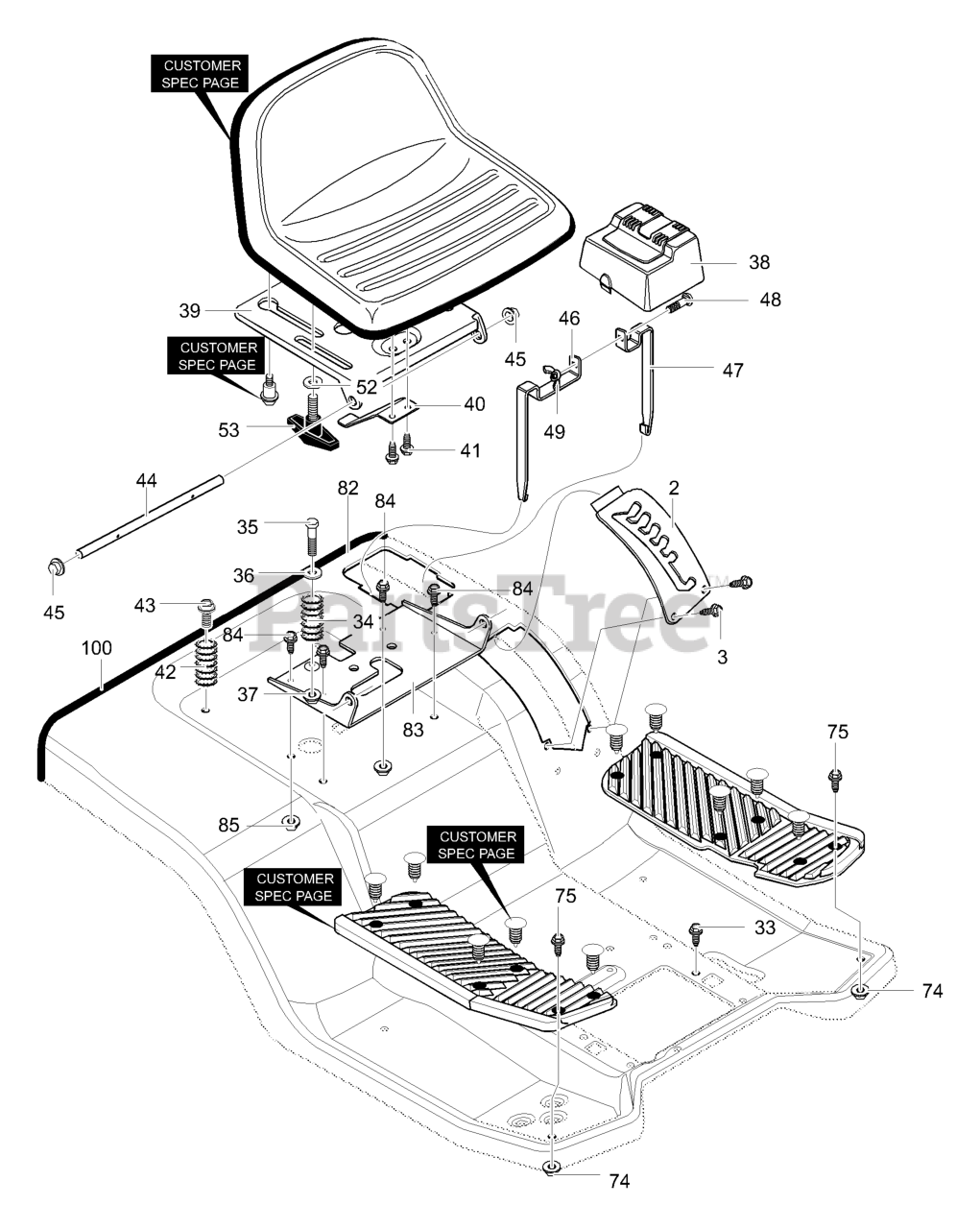

Rear Chassis Assembly (part 2) Parts Diagram

  • Title
2

Murray 95190-821

Plate, Lift Detent

$

$

Currently unavailable

3

Murray 711741

Screw, #12x.50

$1.99

$

Usually ships in 2-12 days

0

33

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

34

Murray 710136-821

Spring, Compression

$

$

Currently unavailable

35

Murray 711610

Shoulder Bolt 1/4-20

$

$

Not available

36

Murray 95293

Zinc Washer Cup

$1.99

$

Usually ships in 2-12 days

0

37

Murray 302635

Nut, 1/4-20 Centerlock

$4.99

$

Usually ships in 2-12 days

0

38

Murray 94200MA

Cover, Battery

$26.99

$

Usually ships in 2-12 days

0

39

Murray 94154-898

Support, Seat

$6.99

$

Usually ships in 2-12 days

0

40

Murray 094057MA

Spring - Leaf

$5.99

$

Usually ships in 2-12 days

0

41

Murray 711592

Screw, 1/4-20x.50

$335.99

$

Usually ships in 2-12 days

0

42

Murray 710109-821

Spring, Compression

$

$

Currently unavailable

43

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

44

Murray 95294

Hinge Seat Pivot

$

$

Not available

45

Murray 711627MA

Nut, Push Cap

$

$

Not available

46

Murray 95393-821

Battery Bracket, LH

$

$

Currently unavailable

47

Murray 95394-821

Battery Bracket, RH

$

$

Currently unavailable

48

Murray 711680

Bolt, Carriage 1/4-20x.63
(Superseded to 711682)

$7.49

$

In Stock, only 1 left!

0

49

Murray 711636

Nut, Wing 1/4-20

$

$

Not available

52

Murray 711644MA

Washer, Flat

$3.49

$

Usually ships in 2-12 days

0

53

Murray 711747MA

Bolt, Wing 5/16-18x.50

$3.99

$

Usually ships in 2-12 days

0

74

Murray 710026

Nut, 5/16-18

$

$

Not available

75

Murray 711891

Bolt, Carriage 5/16-18x.75

$5.49

$

Usually ships in 2-12 days

0

82

Murray 94204-898

Seat Deck Pedal

$

$

Currently unavailable

83

Murray 94153-898

Bracket, Pivot Seat

$5.99

$

Usually ships in 2-12 days

0

84

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

85

Murray 711634MA

Nut, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

100

Murray 095105

Trim 41.00 Inches

$46.99

$

Usually ships in 2-12 days

0
