402707-1207-01 - Briggs & Stratton Vertical Engine Sump Bases,Oil Pump Parts Diagram

Vertical Engine

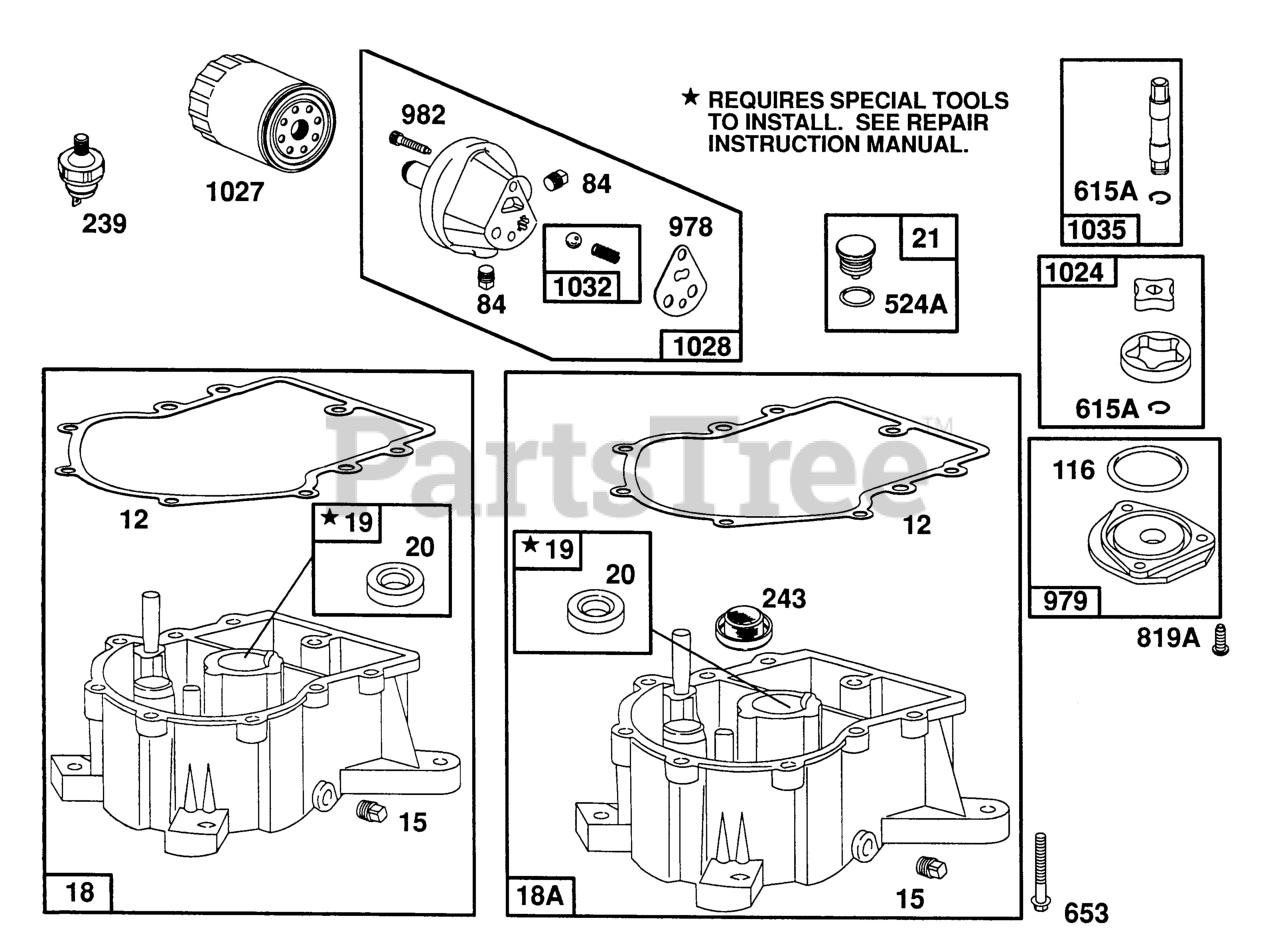

Sump Bases,Oil Pump Parts Diagram

  • Title

12

Briggs & Stratton 271188

Gasket-Crkcse (.005" Thick)

Note: Included in Gasket Set-Part No. 491856

$11.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 271189

Gasket-Crkcse (.009" Thick)

Note: Included in Gasket Set-Part No. 491856

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 271703

Gasket, Crankcase (.015" Thick, Std.)
(Superseded to 692292)

Note: Included in Gasket Set-Part No. 491856

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 94239

Plug, Pipe (Standar (Square Head)
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

15

Briggs & Stratton 94613

Plug, Pipe (Flush)
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

18A

Briggs & Stratton 492575

Sump-Engine

$

$

Not available

18

Briggs & Stratton 493304

Sump-Engine

$

$

Not available

19

Briggs & Stratton 399264

Bushing/Seal Kit (DU)

$

$

Not available

20

Briggs & Stratton 291675

Seal, Oil (Used In Crankcase Covers)
(Superseded to 291675S)

Note: Included in Gasket Set-Part No. 491856

$6.99

$

In Stock, Qty 20+

0

21

Briggs & Stratton 399195

Plug/Seal Assy (For High Oil Fill)
(Superseded to 691363)

$10.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 91488

Plug, Pipe (1/8")
(Superseded to 794903)

$5.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280801

O-Ring (Oil Pump Cover)
(Superseded to 690589)

Note: Included in Gasket Set-Part No. 491856

$8.99

$

In Stock, Qty 20+

0

239

Briggs & Stratton 491657

Switch-Oil Pressure
(Superseded to 491657S)

$31.99

$

In Stock, only 4 left!

0

243

Briggs & Stratton 491722

Screen-Oil Pump
(Superseded to 690770)

$

$

Not available

524A

Briggs & Stratton 271485

Seal, Oil Fill Tube
(Superseded to 691876)

Note: Included in Gasket Set-Part No. 491856

$5.49

$

In Stock, Qty 11

0

615A

Briggs & Stratton 94400

Ring-Retaining
(Superseded to 692334)

$4.99

$

Usually ships in 2-12 days

0

653

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

653

Briggs & Stratton 93585

Screw, Sem Hex Head
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

653

Briggs & Stratton 93730

Stud
(Superseded to 691695)

$6.99

$

Usually ships in 2-12 days

0

819A

Briggs & Stratton 94410

Screw-Phillips
(Superseded to 690336)

$2.99

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 272060

Gasket-Oil Adapter
(Superseded to 691313)

Note: Included in Gasket Set-Part No. 491856

$

$

Not available

979

Briggs & Stratton 492197

Cover-Pump

$23.99

$

Usually ships in 2-12 days

0

982

Briggs & Stratton 94362

Screw-Socket
(Superseded to 690332)

$4.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 492196

Pump-Oil
(Superseded to 794644)

$35.99

$

In Stock, only 1 left!

0

1027

Briggs & Stratton 491056

Filter-Oil (3-1/4" Long)

$9.99

$

In Stock, only 2 left!

0

1028

Briggs & Stratton 491721

Adapter-Oil Filter

$106.99

$

Usually ships in 2-12 days

0

1028

Briggs & Stratton 492675

Adapter-Filter (Remote)

Note: Use(s): 492061 Filter Kit (Remote) (18" Hose) or 492062 Filter Kit (Remote) (30" Hose)

$78.99

$

Usually ships in 2-12 days

0

1032

Briggs & Stratton 491710

Spring-Compression

$4.99

$

Usually ships in 2-12 days

0

1035

Briggs & Stratton 492589

Shaft-Pump
(Superseded to 693158)

$17.99

$

Usually ships in 2-12 days

0
