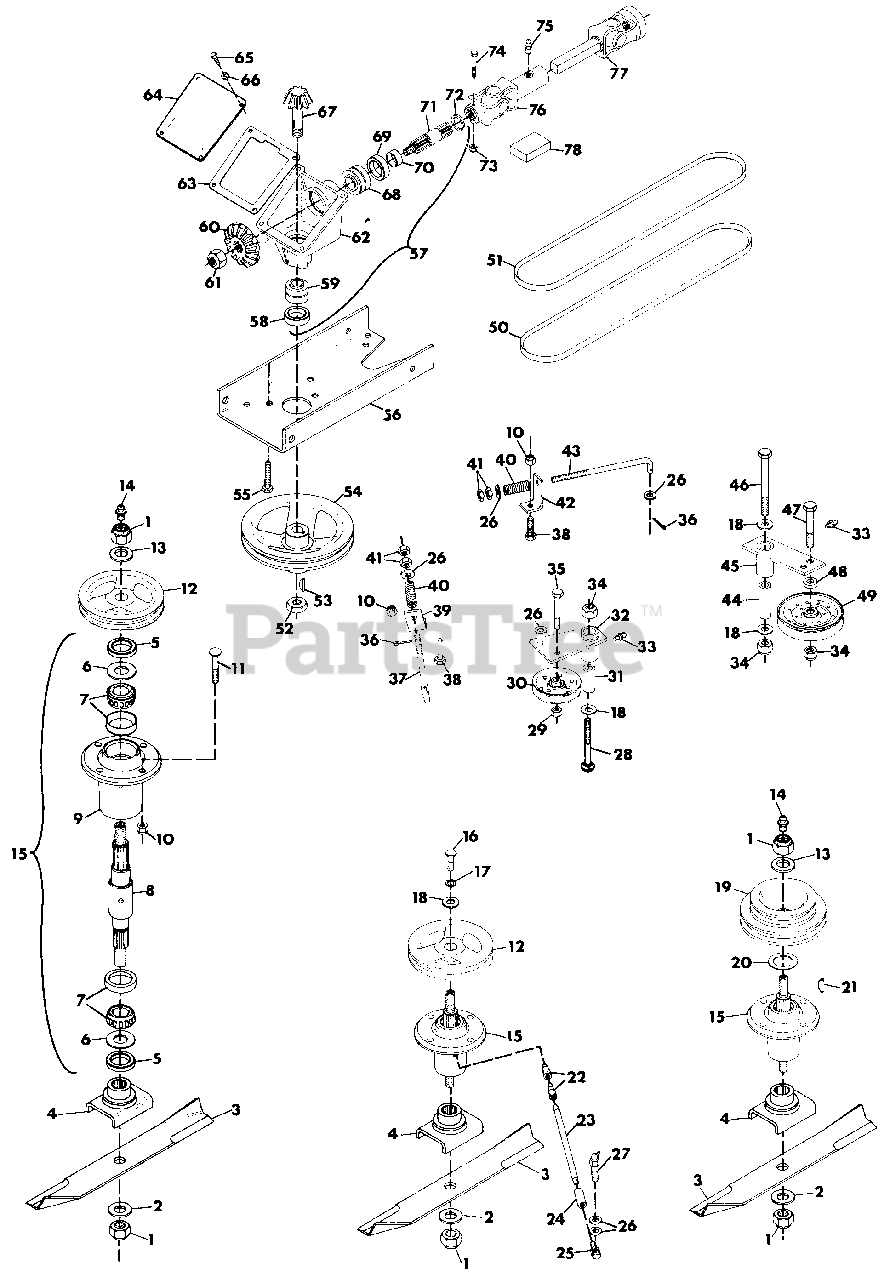

40253 - Gravely 60" Deck for 4-Wheel Tractor MOWER DRIVE Parts Diagram

60" Deck for 4-Wheel Tractor

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 025124

BLADE
(Superseded to 08904600)

$

$

Not available

4

Gravely 023026

WELDMENT, BLADE CRADLE
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

5

Gravely 021211

SEAL, STEEL(RIGHT AND CENTER SPINDLES)
(Superseded to 08722600)

Note: (RIGHT AND CENTER SPINDLES)

$15.99

$

In Stock, only 1 left!

0

5

Gravely 021211

SEAL, STEEL(LEFT SPINDLE)
(Superseded to 08722600)

Note: (LEFT SPINDLE)

$15.99

$

In Stock, only 1 left!

0

6

Gravely 020743

WASHER, FLAT .975X1.970X.030(RIGHT ANDCENTER SPINDLES)
(Superseded to 06426900)

Note: (RIGHT ANDCENTER SPINDLES)

$5.99

$

In Stock, Qty 11

0

6

Gravely 020743

WASHER, FLAT .975X1.970X.030(LEFT SPINDLE)
(Superseded to 06426900)

Note: (LEFT SPINDLE)

$5.99

$

In Stock, Qty 11

0

7

Gravely 038199

ASSEMBLY, BEARING CUP AND CONE
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

8

Gravely 021216

SHAFT, SPINDLE(RIGHT SPINDLE)
(Superseded to 58802800)

Note: (RIGHT SPINDLE)

$85.99

$

In Stock, only 1 left!

0

8

Gravely 031356

SHAFT, SPINDLE(CENTER SPINDLE)
(Superseded to 08899900)

Note: (CENTER SPINDLE)

$137.99

$

Usually ships in 4-12 days

0

8

Gravely 034603

SHAFT, SPINDLE(LEFT SPINDLE)
(Superseded to 58802900)

Note: (LEFT SPINDLE)

$125.99

$

In Stock, only 1 left!

0

9

Gravely 021215

HOUSING, BEARING(LEFT AND RIGHT SPINDLES)
(Superseded to 08722700)

Note: (LEFT AND RIGHT SPINDLES)

$134.99

$

Usually ships in 4-12 days

0

9

Gravely 021218

HOUSING, BEARING(CENTER SPINDLE)
(Superseded to 08722900)

Note: (CENTER SPINDLE)

$

$

Not available

10

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 126406

BOLT, 3/8-16X1.375 RD HD SQ NK
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 031359

PULLEY
(Superseded to 08895100)

$168.99

$

Usually ships in 4-12 days

0

13

Gravely 033845

WASHER, FLAT .687X1.312X.122
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

14

Gravely 411010

FITTING, LUBE 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 1 left!

0

15

Gravely 021306

ASSEMBLY, SPINDLE(RIGHT)
(Superseded to 58803600)

Note: (RIGHT)

$262.99

$

In Stock, only 1 left!

0

15

Gravely 034605

ASSEMBLY, SPINDLE(LEFT)
(Superseded to 58803600)

Note: (LEFT)

$262.99

$

In Stock, only 1 left!

0

16

Gravely 022065

BOLT, HEX SPECIAL 1/2-13X1.34
(Superseded to 08724300)

$27.99

$

Usually ships in 4-12 days

0

17

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

18

Gravely 120389

WASHER, FLAT .500X1.250X.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

19

Gravely 035015

PULLEY, DRIVE
(Superseded to 08736700)

$

$

Not available

20

Gravely 019340

RACE, BEARING THRUST
(Superseded to 06435300)

$4.99

$

In Stock, only 3 left!

0

21

Gravely 124553

KEY, WOODRUFF .25X1.00 HARD #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

22

Gravely 144117

ELBOW, STREET 1/8-26(CENTER SPINDLE)
(Superseded to 07024800)

Note: (CENTER SPINDLE)

$

$

Not available

23

Gravely 031357

NIPPLE, PIPE 6.30
(Superseded to 08728400)

$

$

Not available

24

Gravely 144067

COUPLING, PIPE 1/8-27
(Superseded to 07024600)

$

$

Not available

25

Gravely 191759

ELBOW, ADAPTOR 90 DEG.
(Superseded to 07012300)

$

$

Not available

26

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 273351

FITTING, LUBE 65 DEG.
(Superseded to 07025400)

$

$

Not available

28

Gravely 126803

BOLT, 1/2-13X3.5 RD HD SQ NK
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

29

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 021060

SHEAVE, IDLER
(Superseded to 07314800)

$39.99

$

In Stock, Qty 5

0

31

Gravely 031367

SPACER, .850X.546X2.18
(Superseded to 08827800)

$

$

Not available

32

Gravely 031364

WELDMENT, IDLER PIVOT
(Superseded to 08728700)

$11.99

$

Usually ships in 4-12 days

0

33

Gravely 014406

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

34

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 5

0

35

Gravely 180128

BOLT, HEX 3/8-16X1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 179252

PIN, COTTER .06X1.000
(Superseded to 06707500)

$0.99

$

In Stock, only 3 left!

0

37

Gravely 021112

ROD, IDLER
(Superseded to 03351200)

$

$

Not available

38

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 031345

SUPPORT, SPRING
(Superseded to 08727900)

$3.49

$

Usually ships in 4-12 days

0

40

Gravely 011779

SPRING, COMP. 1X.78X338
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

41

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

42

Gravely 031346

SUPPORT, SPRING
(Superseded to 08905100)

$16.99

$

Usually ships in 4-12 days

0

43

Gravely 021111

ROD, IDLER
(Superseded to 08598300)

$42.99

$

Usually ships in 4-12 days

0

44

Gravely 031363

SPACER, .850X.546X2.50
(Superseded to 08826500)

$51.99

$

Usually ships in 4-12 days

0

45

Gravely 031360

WELDMENT, IDLER PIVOT
(Superseded to 08728500)

$

$

Not available

46

Gravely 180193

BOLT, HEX 1/2-13X3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

47

Gravely 180181

BOLT, HEX 1/2-13X2.00
(Superseded to 05901929)

$

$

Not available

48

Gravely 031368

SPACER, .516X.875X.300
(Superseded to 09036100)

$36.99

$

Usually ships in 4-12 days

0

49

Gravely 022063

PULLEY, FLAT IDLER
(Superseded to 07316700)

$63.99

$

In Stock, only 2 left!

0

50

Gravely 031383

BELT, "B"
(Superseded to 07219700)

$59.99

$

Usually ships in 4-12 days

0

51

Gravely 031369

BELT, "A"
(Superseded to 07219600)

$80.99

$

In Stock, only 3 left!

0

52

Gravely 451539

NUT, JAM 3/4-10 HEX HEAVY
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

53

Gravely 431787

KEY, WOODRUFF 3/16X5/8 NO. 61
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0

54

Gravely 031382

PULLEY, GEAR BOX
(Superseded to 08729100)

$

$

Not available

55

Gravely 180173

BOLT, HEX 1/2-13X1.00
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

56

Gravely 040511

PLATE, SUPPORT
(Superseded to 08748700)

$

$

Not available

57

Gravely 031410

ASSEMBLY, DRIVE
(Superseded to 08570300)

$1066.99

$

Usually ships in 4-12 days

0

58

Gravely 014645

SEAL, OIL
(Superseded to 05613600)

$15.99

$

In Stock, only 4 left!

0

59

Gravely 014644

ASSEMBLY, BEARING
(Superseded to 05419400)

$105.99

$

Usually ships in 4-12 days

0

60

Gravely 019607

GEAR, BEVEL
(Superseded to 08790300)

$240.99

$

Usually ships in 4-12 days

0

61

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

62

Gravely 014636

CASTING, GEAR BOX
(Superseded to 08700400)

$298.99

$

Usually ships in 4-12 days

0

63

Gravely 011231

GASKET, GEAR HOUSING
(Superseded to 08570100)

$5.99

$

In Stock, only 1 left!

0

64

Gravely 010982

COVER, GEAR HOUSING
(Superseded to 08860500)

$43.99

$

Usually ships in 4-12 days

0

65

Gravely 180016

BOLT, HEX 1/4-20X.50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

66

Gravely 120380

WASHER, LOCK 1/4 REG.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

67

Gravely 019608

SHAFT, GEAR PINION
(Superseded to 08790400)

$

$

Not available

68

Gravely 014640

ASSEMBLY, BEARING
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

69

Gravely 014646

SEAL, OIL
(Superseded to 05613700)

$14.99

$

In Stock, only 2 left!

0

70

Gravely 014641

SPACER
(Superseded to 08700500)

$23.99

$

Usually ships in 4-12 days

0

71

Gravely 031412

SHAFT
(Superseded to 08729500)

$234.99

$

Usually ships in 4-12 days

0

72

Gravely 014642

RING, RETAINING 1.000 SHAFT
(Superseded to 05711600)

$9.49

$

Usually ships in 4-12 days

0

73

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

74

Gravely 180046

BOLT, HEX 1/4-20X2.25
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

75

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

76

Gravely 031388

U-JOINT, FEMALE
(Superseded to 08700200)

$

$

Not available

77

Gravely 031389

SHAFT, PROP. SQ. BAR
(Superseded to 08729300)

$

$

Not available

78

Gravely 024560

KIT, REPAIR U-JOINT
(Superseded to 03155800)

$

$

Not available

78

Gravely 031828

KIT, REPAIR U-JOINT
(Superseded to 08729700)

$86.99

$

Usually ships in 4-12 days

0
