402437-1107-01 - Briggs & Stratton Horizontal Engine Flywheel, Screens Parts Diagram

Horizontal Engine

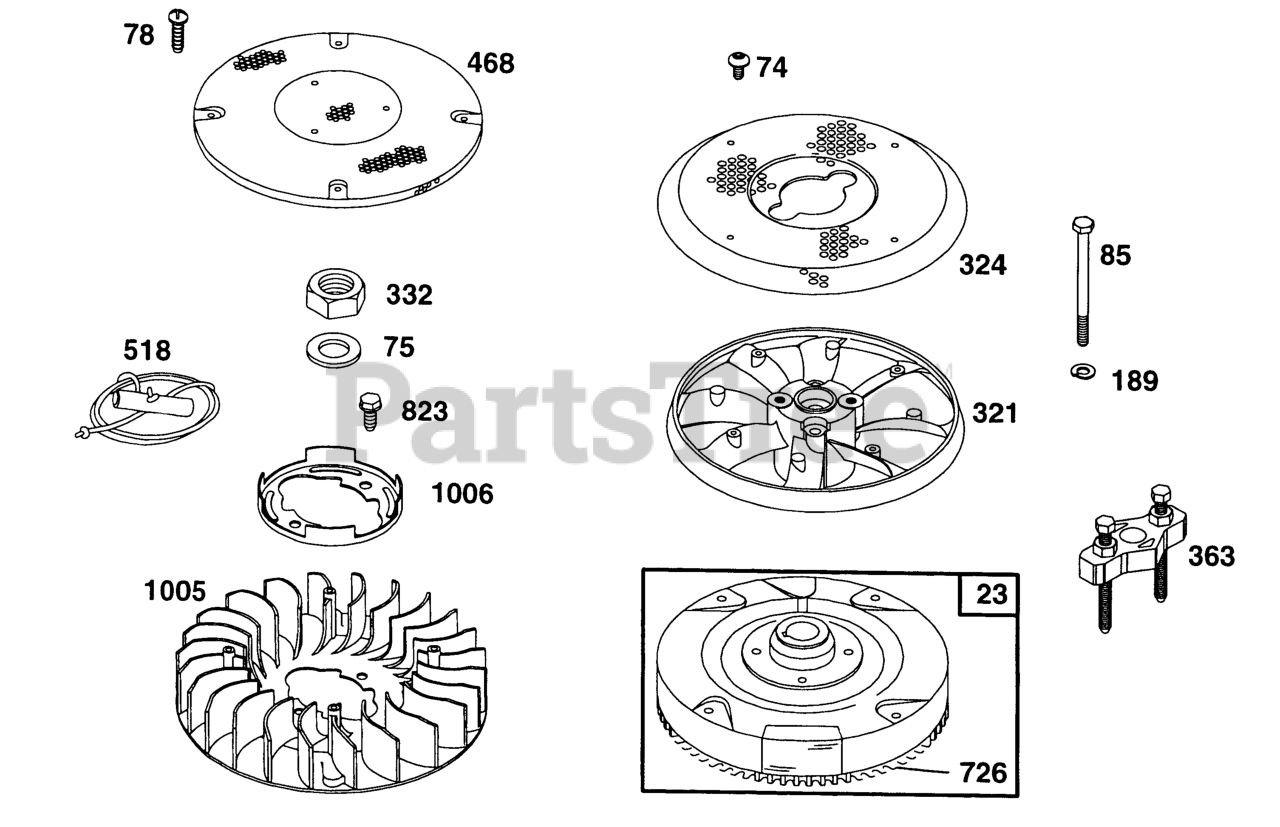

Flywheel, Screens Parts Diagram

  • Title

23

Briggs & Stratton 491180

Flywheel
(Superseded to 691976)

$471.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93808

Screw, Sem Truss Hd
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 222511

Washer-Spring
(Superseded to 691056)

$9.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 94326

Screw-Tube Mounting
(Superseded to 691677)

$3.99

$

In Stock, only 4 left!

0

85

Briggs & Stratton 94385

Screw-Hex. Head
(Superseded to 690335)

$4.49

$

Usually ships in 2-12 days

0

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

321

Briggs & Stratton 213472

Fan-Booster
(Superseded to 690379)

Note: Used Before Code Date 93011800

$138.99

$

Usually ships in 2-12 days

0

321

Briggs & Stratton 213852

Fan-Booster
(Superseded to 690381)

Note: Used After Code Date 93011700

$116.99

$

Usually ships in 2-12 days

0

321

Briggs & Stratton 213854

Fan-Booster
(Superseded to 690382)

Note: Used After Code Date 93011700

$139.99

$

Usually ships in 2-12 days

0

324

Briggs & Stratton 224779

Screen-Rotating
(Superseded to 690478)

$34.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 230674

Nut-Hex.
(Superseded to 691059)

$4.49

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

468

Briggs & Stratton 224521

Screen-Rotating
(Superseded to 692527)

$15.99

$

Usually ships in 2-12 days

0

518

Briggs & Stratton 69932

Rope/Grip Assy (55")
(Superseded to 69932S)

$9.49

$

In Stock, only 1 left!

0

726

Briggs & Stratton 391362

Gear-Ring (Including Mtg. Parts)

$

$

Not available

823

Briggs & Stratton 94627

Screw, Sem Hex Head
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

1005

Briggs & Stratton 281053

Fan-Flywheel
(Superseded to 498157)

$81.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 224413

Retainer-Fan
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0
