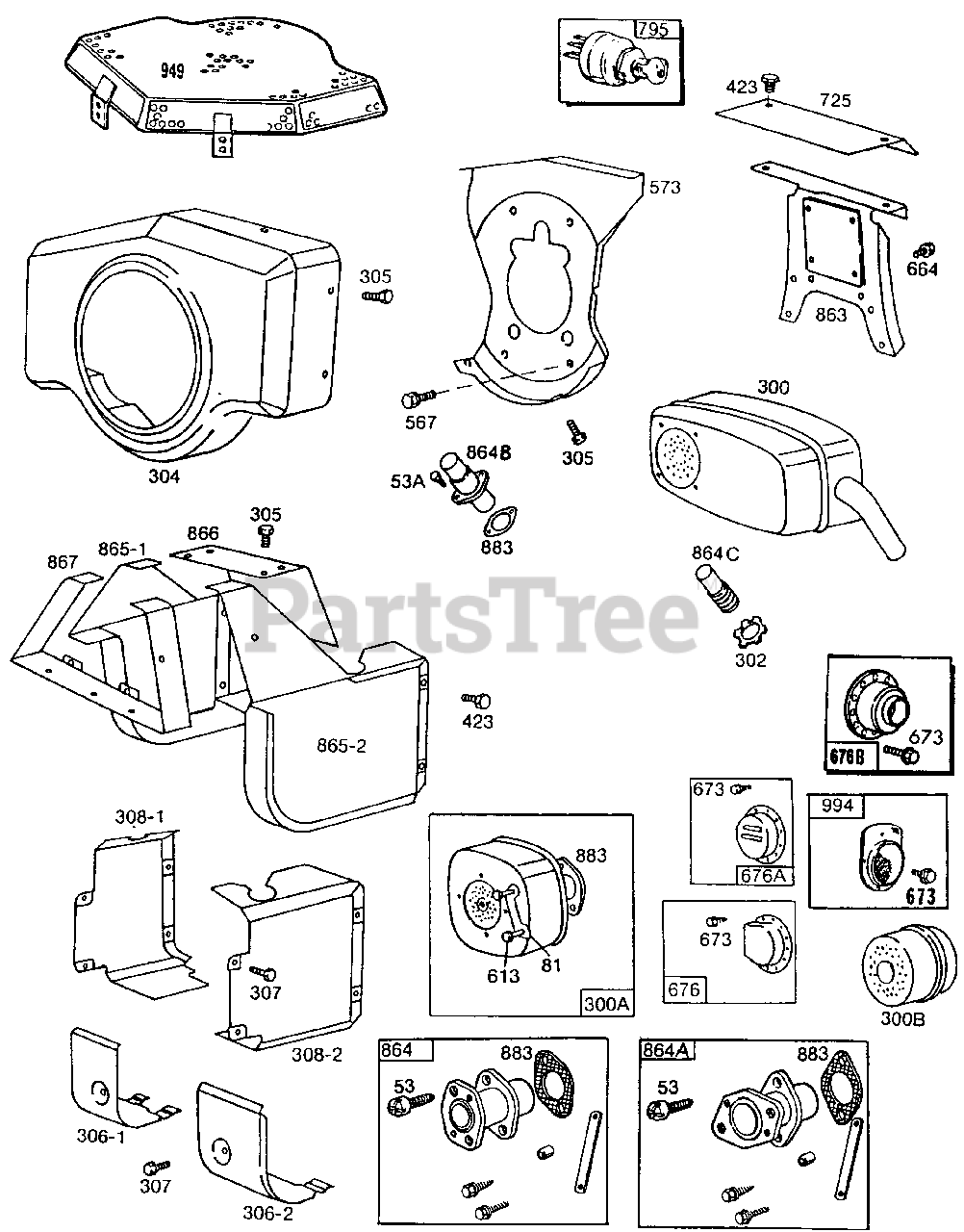

402417-0661-01 - Briggs & Stratton Horizontal Engine BlowerHsg,Mufflers,Shielding Parts Diagram

Horizontal Engine

BlowerHsg,Mufflers,Shielding Parts Diagram

  • Title

53A

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

53

Briggs & Stratton 93414

Screw, Sem Hex Head
(Superseded to 691621)

$7.49

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 223016

Lock-Screw
(Superseded to 691178)

$5.49

$

In Stock, Qty 9

0

300A

Briggs & Stratton 394237

Muffler-Exhaust
(Superseded to 399635)

$

$

Not available

300B

Briggs & Stratton 392989

Muffler-Exhaust (Muffler Only)

$28.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 394200

Muffler-Exhaust
(Superseded to 491307S)

$152.99

$

Usually ships in 2-12 days

0

302

Briggs & Stratton 261409

Locknut, Muffler/El
(Superseded to 690453)

$4.49

$

In Stock, Qty 9

0

304

Briggs & Stratton 396088

Housing-Blower

$155.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

306-2

Briggs & Stratton 222847

Shield , Cylinder
(Superseded to 690435)

Note: Use on Engines with 3-5/8" or Shorter Starter Motor

$10.99

$

Usually ships in 2-12 days

0

306-1

Briggs & Stratton 222846

Shield-Cylinder
(Superseded to 690414)

$23.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93163

Screw, Sem Hex Head
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308-1

Briggs & Stratton 222848

Cover-Air Guide
(Superseded to 691196)

$166.99

$

Usually ships in 2-12 days

0

308-2

Briggs & Stratton 222849

Cover-Air Guide
(Superseded to 691197)

$75.99

$

Usually ships in 2-12 days

0

423

Briggs & Stratton 93343

Screw, Tapping Hex
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

567

Briggs & Stratton 93777

Screw, Sem Hex Head
(Superseded to 690364)

$3.99

$

In Stock, only 2 left!

0

573

Briggs & Stratton 392934

Back Plate Assy.
(Superseded to 696041)

$45.99

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 93927

Screw-Shoulder
(Superseded to 691416)

$11.99

$

In Stock, Qty 14

0

664

Briggs & Stratton 93343

Screw, Tapping Hex
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

673

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

676A

Briggs & Stratton 397630

Deflector-Muff (Louvered Outlet)
(Superseded to 795038)

$15.99

$

Usually ships in 2-12 days

0

676B

Briggs & Stratton 396903

DEFLECTOR, Muffler

$14.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 393761

Deflector-Muff (Side Outlet)
(Superseded to 795036)

$8.49

$

In Stock, only 1 left!

0

725

Briggs & Stratton 222981

Shield-Heat
(Superseded to 690477)

$

$

Not available

795

Briggs & Stratton 490066

Switch-Ignition
(Superseded to 692318)

$29.99

$

In Stock, Qty 19

0

863

Briggs & Stratton 222776

Bracket-Muffler
(Superseded to 690413)

$69.99

$

In Stock, only 1 left!

0

864A

Briggs & Stratton 490357

Adapter, Muffler Gr (Cyl. #2)
(Superseded to 691365)

$34.99

$

Usually ships in 2-12 days

0

864B

Briggs & Stratton 393483

Liner-Exhaust Port
(Superseded to 691970)

$

$

Not available

864C

Briggs & Stratton 231162

Connector-Muffler

$

$

Not available

864

Briggs & Stratton 490358

Adapter, Muffler Gr (Cyl. #1)
(Superseded to 691975)

$37.99

$

Usually ships in 2-12 days

0

865-1

Briggs & Stratton 392991

Cover, Guide Assy (Cyl. #1)

$

$

Not available

865-2

Briggs & Stratton 392992

Cover, Guide #2 Ass

$

$

Not available

866

Briggs & Stratton 393025

Cover-Air Guide
(Superseded to 690632)

$37.99

$

Usually ships in 2-12 days

0

867

Briggs & Stratton 222775

Frame-Air Guide
(Superseded to 691195)

$53.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 271174

Gasket-Exhaust
(Superseded to 692282)

$6.99

$

In Stock, Qty 12

0

949

Briggs & Stratton 393330

Screen-Stationary

$142.99

$

Usually ships in 2-12 days

0

994

Briggs & Stratton 392390

Arrester-Spark
(Superseded to 794945)

$53.99

$

Usually ships in 2-12 days

0
