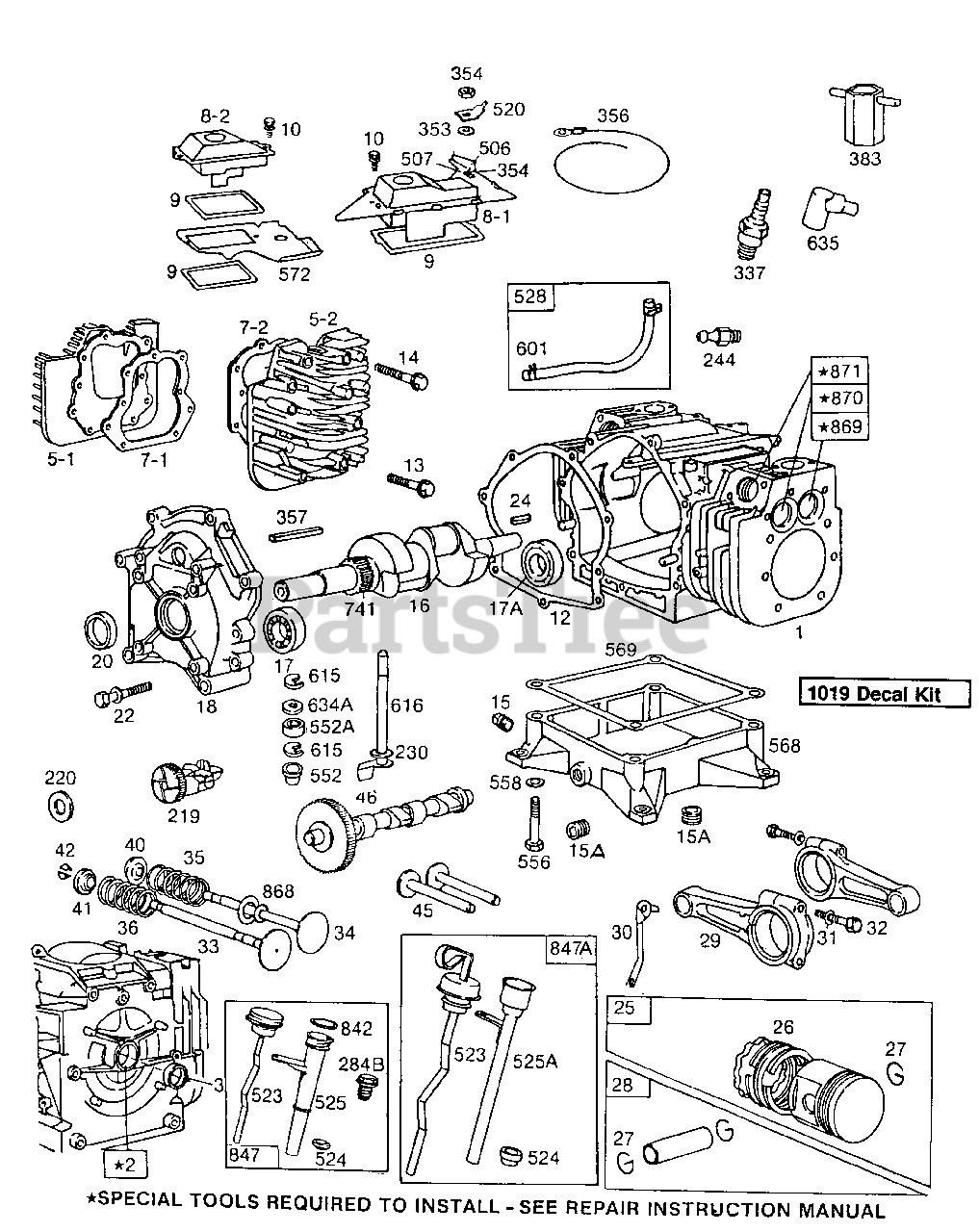

402417-0660-01 - Briggs & Stratton Horizontal Engine Cylinder,Cylinder Heads,Sump Parts Diagram

Horizontal Engine

Cylinder,Cylinder Heads,Sump Parts Diagram

  • Title

1

Briggs & Stratton 394687

Cylinder Assembly

$

$

Not available

2

Briggs & Stratton 261623

Bushing-Cylinder
(Superseded to 797673)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

5-1

Briggs & Stratton 212461

Head-Cylinder #1
(Superseded to 493457)

$

$

Not available

5-2

Briggs & Stratton 212462

Head-Cylinder #2
(Superseded to 493458)

$

$

Not available

7-1

Briggs & Stratton 271867

Gasket, Cylinder He (Cyl. #1)
(Superseded to 271867S)

Note: Included in Gasket Set-Part No. 394501

$10.99

$

In Stock, Qty 12

0

7-2

Briggs & Stratton 271868

Gasket, Cylinder He (Cyl. #2)
(Superseded to 271868S)

Note: Included in Gasket Set-Part No. 394501

$10.99

$

In Stock, Qty 10

0

8-2

Briggs & Stratton 393153

Breather Assembly #2
(Superseded to 495756)

$

$

Not available

8-1

Briggs & Stratton 393243

Breather/Terminal A (#1)
(Superseded to 495755)

$55.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 394501

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 270982

Gasket-Crankcase Cover 1/64" Thick
(Superseded to 691877)

Note: Included in Gasket Set-Part No. 394501

$

$

Not available

12

Briggs & Stratton 271145

Gasket, Crankcase (.005" Thick)
(Superseded to 272127)

Note: Included in Gasket Set-Part No. 394501

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 271146

Gasket-Crankcase Cover .009" Thick
(Superseded to 272128)

Note: Included in Gasket Set-Part No. 394501

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93111

Screw, Machine Hex (15/16" Long)
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 93113

Screw, Machine Hex (2-5/16" Long)
(Superseded to 690912)

$3.99

$

In Stock, Qty 20+

0

15A

Briggs & Stratton 93448

Plug, Pipe (Flush) (1/4-18 Nptf)
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 91084

Plug, Pipe (Standar (3/8")
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 392976

Crankshaft

Note: Order 94196 Key or 231160 Pin For Timing Gear Retaining Device

$

$

Not available

17A

Briggs & Stratton 393980

Bearing-Ball (Mag. Side)

$

$

Not available

17

Briggs & Stratton 393741

Bearing-Ball (P.t.o. Side)
(Superseded to 691358)

$63.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 394420

Crankcase Cover (Plain Brg.)

$111.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 291675

Seal, Oil (Used In Crankcase Covers)
(Superseded to 291675S)

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93847

Screw-Tank Mounting
(Superseded to 691088)

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

24

Briggs & Stratton 61760

Key, Flywheel (For Breaker Ignition System)
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 394955

Piston/Ring Kit (Std.)
(Superseded to 498584)

$102.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 394956

Piston/Ring Kit (.010" O.S.)

$

$

Not available

25

Briggs & Stratton 394957

Piston/Ring Kit (.020" O.S.)
(Superseded to 498586)

$113.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 394958

Piston/Ring Kit (.030" O.S.)

$

$

Not available

26

Briggs & Stratton 394959

Ring Set-Std

$59.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 394960

Ring Set-010

$

$

Not available

26

Briggs & Stratton 394961

Ring Set-020

$83.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 394962

Ring Set-030

$34.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 260924

Lock-Piston Pin
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

Pin-Piston Std (Std.)

$17.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 391286

Pin-Piston 005 (.005 O.S.)

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 393270

Rod-Connecting (Standard)

Note: For Connecting Rod with .020" Undersize Crankpin Bore-Order No. 393714

$95.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 222480

Dipper-Connecting Rod
(Superseded to 691733)

$16.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 220863

Washer (1/4 X 5/8 X 1/32)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92909

Screw, Hex Head Cap
(Superseded to 691133)

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 390420

Valve/Retainer Kit
(Superseded to 691794)

$

$

Not available

34

Briggs & Stratton 261528

Valve, Intake
(Superseded to 691804)

Note: Uses: 393606 Seal Assy. and Retainer (Ref. No. 868)

$

$

Not available

35

Briggs & Stratton 65906

Spring, Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring, Valve (Exhaust)
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 221596

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Rotocoil Assy (Exhaust Valve)
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 93630

Keeper, Valve (2)
(Superseded to 494553)

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 261368

Tappet-Valve
(Superseded to 691800)

$13.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 212337

Gear, Cam
(Superseded to 691156)

Note: (Used with Electronic Ignition)

$125.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 212415

Gear, Cam

Note: (Used only with Cyl. Hds. 212461 & 212462)

$

$

Not available

219

Briggs & Stratton 394348

Gear-Governor
(Superseded to 793338)

$27.99

$

In Stock, Qty 20+

0

220

Briggs & Stratton 222773

Washer-Thrust
(Superseded to 690412)

$

$

Not available

230

Briggs & Stratton 220863

Washer (1/4 X 5/8 X 1/32)

$3.99

$

Usually ships in 2-12 days

0

244

Briggs & Stratton 230318

Connector, Fuel
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

284B

Briggs & Stratton 93886

Screw-Shoulder
(Superseded to 691130)

$2.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 394539

Spark Plug (Resistor)
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

356

Briggs & Stratton 298693

Wire, Ground Assy (30" long-Cut To Suit)
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

357

Briggs & Stratton 91540

Key, Pulley (1/4")
(Superseded to 691483)

$6.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

506

Briggs & Stratton 231174

Terminal

$5.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 280180

Insulator

$4.49

$

Usually ships in 2-12 days

0

520

Briggs & Stratton 93722

Terminal, Spade
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

523

Briggs & Stratton 398924

Cap-Oil Fill
(Superseded to 691385)

$31.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 68838

Seal-Oil Filler Tube To Sump
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525A

Briggs & Stratton 392782

Tube-Oil Filler

$22.99

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 280220

Tube-Oil Filler
(Superseded to 691389)

$32.99

$

In Stock, only 1 left!

0

528

Briggs & Stratton 393244

Pipe/Clamp Assy
(Superseded to 791880)

Note: (Impulse) (9" long-old style) Std 4-1/2" long

$11.99

$

Usually ships in 2-12 days

0

552A

Briggs & Stratton 261560

Upper Bushing-Governor

$8.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 261559

Lower Bushing-Governor

$8.49

$

Usually ships in 2-12 days

0

556

Briggs & Stratton 93783

Screw-Hex. Head
(Superseded to 690359)

$8.99

$

In Stock, only 4 left!

0

558

Briggs & Stratton 92268

Washer-Lock (3/8 X 1/8 X 3/32")

$4.49

$

Usually ships in 2-12 days

0

568

Briggs & Stratton 394391

Base-Engine

$

$

Not available

569

Briggs & Stratton 270981

Gasket-Engine Base
(Superseded to 692287)

Note: Included in Gasket Set-Part No. 394501

$10.99

$

In Stock, Qty 6

0

572

Briggs & Stratton 222700

Guide-Air (Cyl. #2)

$10.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

615

Briggs & Stratton 93851

Retainer-E

$4.49

$

In Stock, only 1 left!

0

616

Briggs & Stratton 394396

Crank-Governor

$8.99

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 271316

Foam Seal-Governor Shaft

$16.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 11

0

741

Briggs & Stratton 231321

Gear-Timing (Used With Pin)

$89.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262221

Gear, Timing (Used With Key)
(Superseded to 691277)

$9.49

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 271170

Seal-Tube
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847A

Briggs & Stratton 394023

Dipstick And Tube Assy.

$17.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 398990

Tube Assy.-Oil
(Superseded to 690651)

$61.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 393606

Seal-Valve
(Superseded to 692324)

$

$

Not available

869

Briggs & Stratton 261463

Seat, Intake Valve
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 210940

Seat-Exhaust Valve (Standard)
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231218

Bushing-Guide (Brass)

Note: See Repair Manual

$14.99

$

In Stock, Qty 7

0

871

Briggs & Stratton 261961

Bushing-Guide

$14.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491261

Label Kit

$27.99

$

Usually ships in 2-12 days

0
