40240 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 19hp Kohler (SN: 000101 & Above) MAIN FRAME Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 19hp Kohler

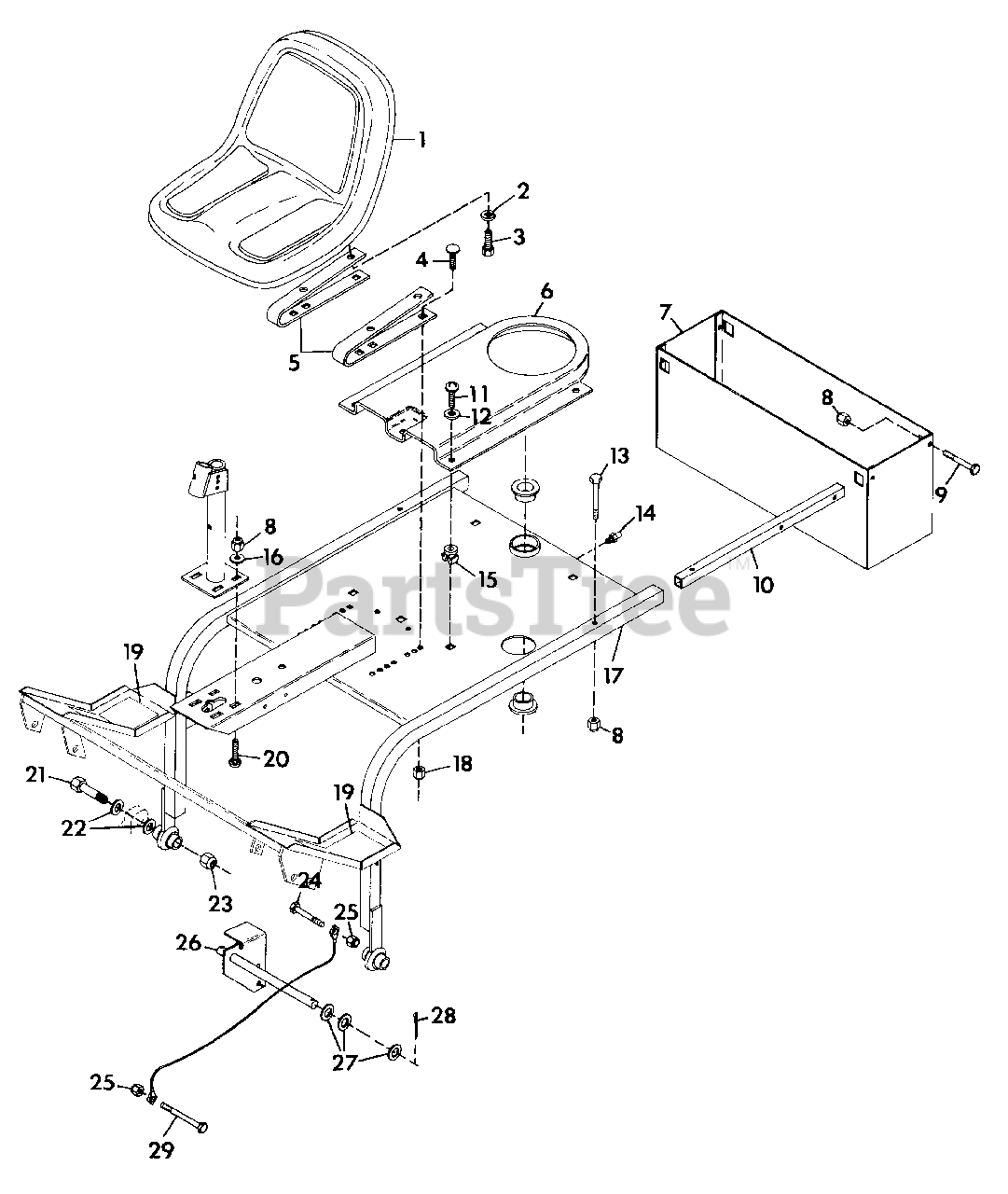

MAIN FRAME Parts Diagram

  • Title
1

Gravely 040227

SEAT, HIGH BACK
(Superseded to 09112400)

$

$

Not available

2

Gravely 120214

WASHER, LOCK 5/16
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 126358

BOLT, CARRIAGE 5/16-18X1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 038806

SPRING, SEAT
(Superseded to 08809151)

$

$

Not available

6

Gravely 035412

COVER, CHAIN
(Superseded to 20624300)

$

$

Not available

7

Gravely 038801

WELDMENT, WEIGHT BOX
(Superseded to 20652400)

$

$

Not available

8

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 180132

BOLT, HEX 3/8-16X2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 038779

TUBE, SUPPORT
(Superseded to 21247500)

$

$

Not available

11

Gravely 167260

SCREW, TAPPING 1/4-20X.625 P/HD
(Superseded to 07410400)

$2.49

$

In Stock, Qty 13

0

12

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 180137

BOLT, HEX 3/8-16X2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

15

Gravely 011777

GROMMET, PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 040222

WELDMENT, FRAME
(Superseded to 20666600)

$

$

Not available

18

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 011653

COVER, LARGE FOOTBOARD
(Superseded to 09023200)

$14.99

$

Usually ships in 4-12 days

0

20

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

21

Gravely 271778

BOLT, HEX 3/4-10X3.75
(Superseded to 05939700)

$

$

Not available

22

Gravely 035640

WASHER, FLAT .812X1.469X.130
(Superseded to 06427600)

$5.99

$

In Stock, only 1 left!

0

23

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

24

Gravely 181621

BOLT, HEX 5/16-24X2.25
(Superseded to 05937100)

$

$

Not available

25

Gravely 190139

NUT, LOCK 5/16-24
(Superseded to 06526500)

$1.99

$

Usually ships in 4-12 days

0

26

Gravely 037042

WELDMENT, LIFT BRACKET
(Superseded to 08924900)

$

$

Not available

27

Gravely 421879

WASHER, FLAT .656X1.250X.100
(Superseded to 06430300)

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 120123

PIN, COTTER .125X1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 189323

BOLT, HEX 5/16-24X3.50
(Superseded to 05938700)

$

$

Not available

NS

Gravely 035478

DECAL, PRO MASTER-60
(Superseded to 05209400)

$

$

Not available

NS

Gravely 040233

DECALS, PRO MASTER
(Superseded to 20666900)

$

$

Not available

NS

Gravely 024588

DECAL, GRAVELY LOGO
(Superseded to 05201500)

$22.99

$

Usually ships in 4-12 days

0

NS

Gravely 040046

DECAL, AMERICA
(Superseded to 03327700)

$

$

Not available
