401TCR (85028) - Snapper Front-Tine Tiller, 4hp Handles, Controls Parts Diagram

Front-Tine Tiller, 4hp

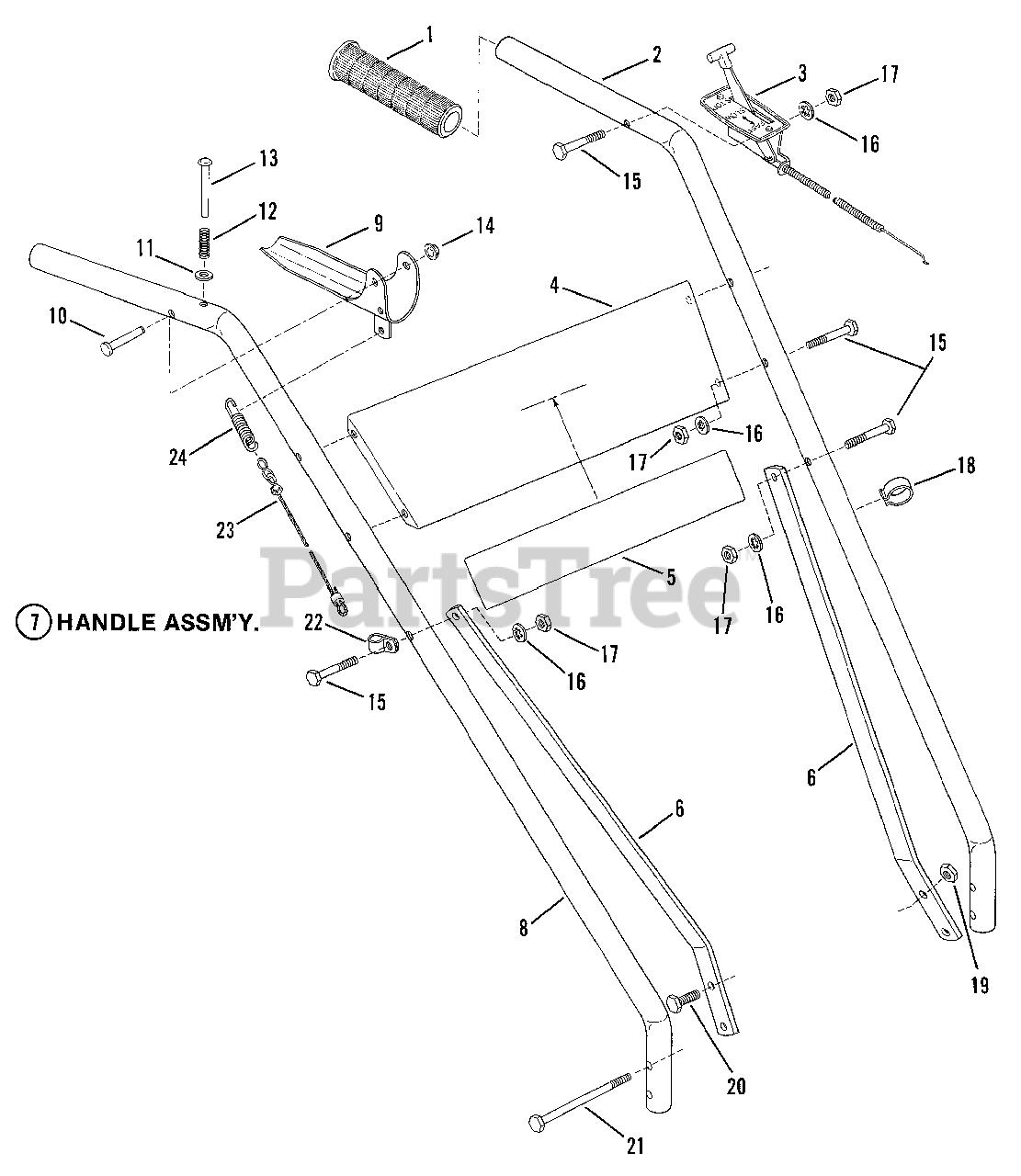

Handles, Controls Parts Diagram

  • Title
1

Snapper 7011870

GRIP, Handle
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

2

Snapper 7029560

HANDLE BAR, Left Hand

Note: Was 36216

$

$

Not available

3

Snapper 7018073

CONTROL, Throttle
(Superseded to 7018073YP)

Note: (B&S Shown)

$

$

Not available

3

Snapper 7018092

CONTROL, Throttle
(Superseded to 7018092YP)

Note: (Tec.)

$14.99

$

Usually ships in 2-12 days

0

4

Snapper 7037321

BRACE, Cross
(Superseded to 7037321YP)

$34.99

$

Usually ships in 2-12 days

0

5

Snapper 7019295

DECAL, SNAPPER
(Superseded to 7019295YP)

Note: Was 18593

$13.99

$

In Stock, only 4 left!

0

6

Snapper 7031192

TIE-BAR
(Superseded to 7031192YP)

$46.99

$

Usually ships in 2-12 days

0

7

Snapper 7057481

ASSM'Y., Handle

Note: (Includes items 8 thru 10 & 14)

$

$

Currently unavailable

8

Snapper 7036217

HANDLE BAR, Right Hand

$

$

Not available

9

Snapper 7040604

LEVER, Clutch
(Superseded to 7040604YP)

Note: Was 40366

$18.99

$

Usually ships in 2-12 days

0

10

Snapper 7023792

PIN
(Superseded to 704031)

Note: Was 11886

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7091294

(NLA) WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7011187

(NLA) SPRING
(Superseded to 7011187YP)

$3.49

$

In Stock, Qty 5

0

13

Snapper 7011715

(NLA) PIN
(Superseded to 7011715YP)

$2.99

$

Usually ships in 2-12 days

0

14

Snapper 7091020

NUT, Push
(Superseded to 7091020YP)

Note: Was 90489

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7090111

SCREW, 1/4-28x1-3/4" Hex Hd. Cap

$2.99

$

In Stock, only 3 left!

0

16

Snapper 7090053

WASHER, 1/4 Internal Tooth
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

17

Snapper 7090095

NUT, 1/4-28
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7011709

CLIP, Throttle Control
(Superseded to 7011709YP)

$

$

Not available

19

Snapper 7090222

NUT, 5/16-24 Hex Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7090238

SCREW, 5/16-24x1" Hex Hd. Cap
(Superseded to 703301)

$3.99

$

In Stock, only 3 left!

0

21

Snapper 7090572

SCREW, 5/16-24x4" Hex Hd. Cap

$

$

Not available

22

Snapper 7011708

GUIDE, Cable

$

$

Not available

23

Snapper 7050344

CABLE, Clutch Assm'y.
(Superseded to 7050344YP)

Note: (Includes chain)

$17.99

$

In Stock, only 1 left!

0

24

Snapper 7011706

SPRING, Clutch Cable
(Superseded to 7011706YP)

$8.49

$

In Stock, only 1 left!

0
