401TCR (85028) - Snapper Front-Tine Tiller, 4hp Chain Case Parts Diagram

Front-Tine Tiller, 4hp

Chain Case Parts Diagram

  • Title

1

Snapper 7050812

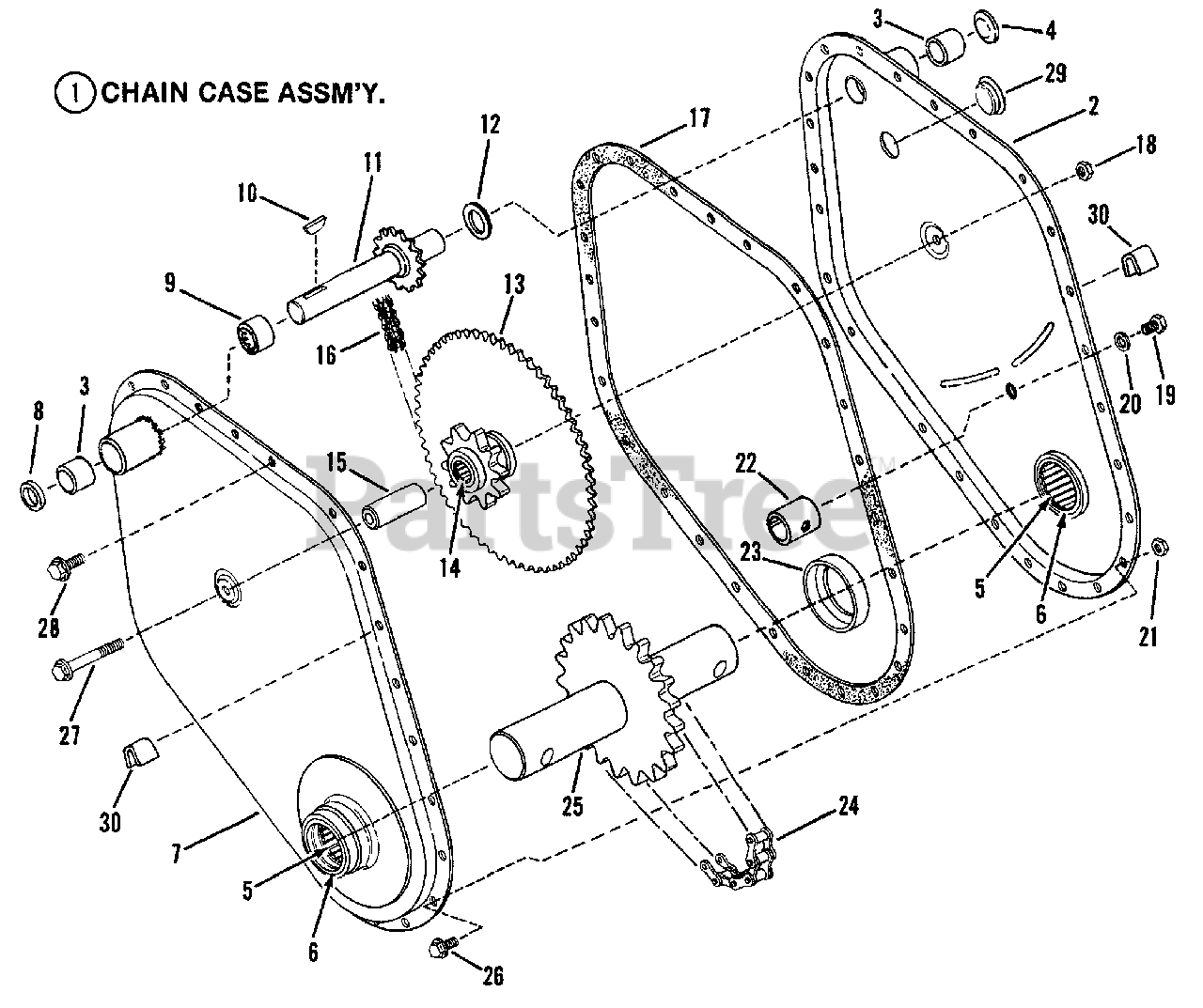

CHAIN CASE ASY.

Note: (Incl. Items 2 thru 28)

$

$

Currently unavailable

2

Snapper 7050726

CASE ASY., R.H.

Note: (Incl. Items 3 thru 6)

$

$

Currently unavailable

Snapper 7073261

CASE, R.H.

Note: Was 47722 (Without Bearings, Seals, Plug)

$

$

Currently unavailable

3

Snapper 7010932

BEARING, Bronze .627" ID x .815" OD x .755" Wide
(Superseded to 7010932YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7011177

PLUG, Welch
(Superseded to 7011177YP)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7011176

BEARING, Needle 1.250" ID x 1.0" OD x 1.50" Wide
(Superseded to 7011176YP)

$46.99

$

In Stock, only 2 left!

0

6

Snapper 7013681

* SEAL, Oil 1.25" ID x 1.696" OD
(Superseded to 7013681YP)

Note: was 11175

$32.99

$

Usually ships in 2-12 days

0

7

Snapper 7050725

CASE ASY., L.H.
(Superseded to 7050725YP)

Note: (Incl. Items 3, 5, 6, 8)

$347.99

$

Usually ships in 2-12 days

0

Snapper 7047721

CASE, L.H.
(Superseded to 7047721YP)

Note: (Without Bearings, Seals)

$185.99

$

Usually ships in 2-12 days

0

8

Snapper 7011179

SEAL, Drive Shaft .625" ID x .942 OD
(Superseded to 7011179YP)

$11.99

$

Usually ships in 2-12 days

0

9

Snapper 7021751

SPACER, Drive Shaft

$

$

Currently unavailable

10

Snapper 7010211

KEY, 3/16 x 3/4" Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

11

Snapper 7040413

SHAFT, Drive

$

$

Not available

12

Snapper 7020938

WASHER, Shim

$

$

Not available

13

Snapper 7050724

SPROCKET, Intermediate Asy.

Note: (Includes Item 14)

$

$

Not available

Snapper 7040437

SPROCKET, Intermediate
(Superseded to 7040437YP)

Note: (Without Bearings)

$168.99

$

Usually ships in 2-12 days

0

14

Snapper 7011178

SEAL, Drive Shaft .625" ID x .942 OD

Note: (Press Fitted Flush)

$

$

Not available

15

Snapper 7021752

RACE, Sprocket Bearing
(Superseded to 7021752YP)

$87.99

$

In Stock, only 1 left!

0

16

Snapper 7011183

CHAIN, Primary Drive
(Superseded to 7011183YP)

$27.99

$

In Stock, only 1 left!

0

17

Snapper 7018071

GASKET, Case Housing

$

$

Not available

18

Snapper 7092062

NUT, 5/16-24 Hex Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7090554

HWST, 5/16C X3/8 ZP

Note: was 90465

$

$

Not available

20

Snapper 7014980

WASHER, Seal

Note: was 12102

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7090222

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7012232

SPACER, Case Housings

$

$

Not available

23

Snapper 7011181

SPACER, Rotor Shaft

$

$

Not available

24

Snapper 7011182

CHAIN, Final Drive

$

$

Not available

25

Snapper 7040364

SHAFT, Tine Rotor

$

$

Not available

26

Snapper 7090227

SCREW, 5/16-24 x 5/8" Hex Head Cap, Grade 2

$

$

Not available

27

Snapper 7090358

SCREW, 5/16-24 x 2-1/2" Hex Head Cap, Grade 5
(Superseded to 7090358YP)

$4.49

$

In Stock, only 1 left!

0

28

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

29

Snapper 7011024

PLUG
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

30

Snapper 7011191

SPACER, Case Housing to Rail

$

$

Not available
