4019 (181-414D711) - MasterCut by MTD Walk-Behind Mower, Electric (1991) (Mr. Goodbuys) Handle Bar Assembly Parts Diagram

Walk-Behind Mower, Electric

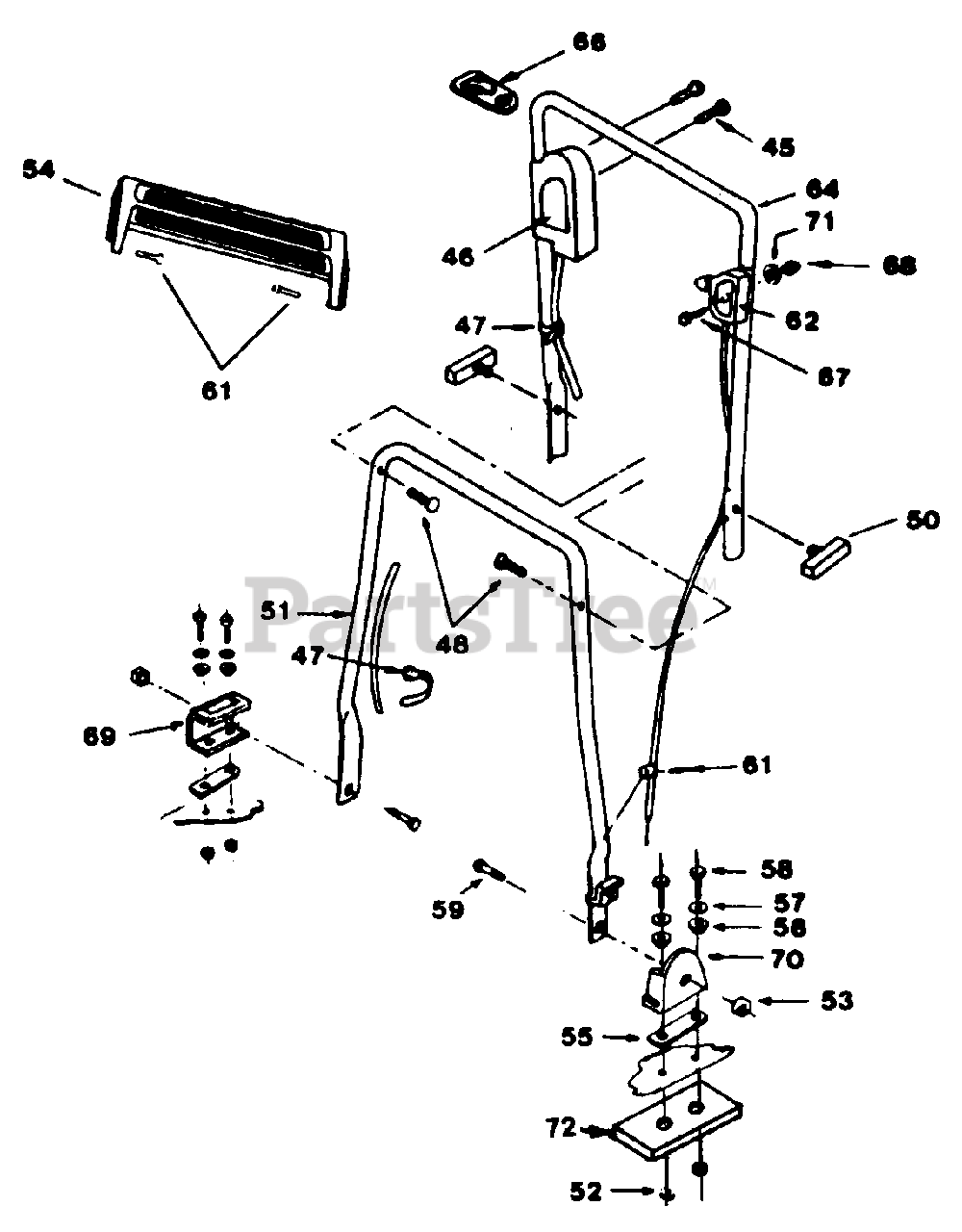

Handle Bar Assembly Parts Diagram

  • Title

45

MTD 710-1150

Screw

$

$

Not available

46

MTD 777-9380

Label - Switch Box

$

$

Not available

47

MTD 726-0303

Plastic Tie

$

$

Not available

48

MTD 710-1152

Curved Hd. Screw

$

$

Not available

50

MTD 720-0241

Locking Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

51

MTD 649-2220

Lower Handle Assy.

$

$

Not available

52

MTD 712-0324

Nut 1/4 - 20

$3.99

$

In Stock, Qty 16

0

53

MTD 712-0438

Nut 3/8- 16

$

$

Not available

54

MTD 720-0253

Trim Plate

Note: (Optional)

$

$

Currently unavailable

55

MTD 721-0278

Insulator Strip

$

$

Not available

56

MTD 731-1219

Insulator

$

$

Not available

57

MTD 736-3090

Flat Washer

$6.99

$

In Stock, Qty 11

0

58

MTD 710-0597

Screw, 1/4 - 20 x 1' Hex Head

$3.99

$

In Stock, Qty 13

0

59

MTD 738-0859

Shoulder Bolt

$

$

Not available

61

MTD 710-1167

Screw

$

$

Not available

62

MTD 720-0250

Cable Release Control

$

$

Not available

64

MTD 749-0900

Upper Handle

$

$

Not available

66

MTD 725-1590

Strain Reliet

$

$

Not available

67

MTD 710-0606

Screw 1/4 20 x 1-1/2

$5.49

$

In Stock, Qty 10

0

68

MTD 712-0442

Nut 1/4 - 20 Acorn

$6.99

$

In Stock, only 4 left!

0

69

MTD 782-3012

Handle Bracket- R.H.

$

$

Not available

70

MTD 782-3013

Handle Bracket- L.H.

$

$

Not available

71

MTD 736-0142

Washer

$4.99

$

In Stock, Qty 20+

0

72

MTD 782-5001

Plate - Support

$

$

Currently unavailable
