40182 (1132-G) - Gravely 32" Lawn Tractor, 11hp Briggs & Stratton, Gear Drive MOWER 32" Parts Diagram

32" Lawn Tractor, 11hp Briggs & Stratton, Gear Drive

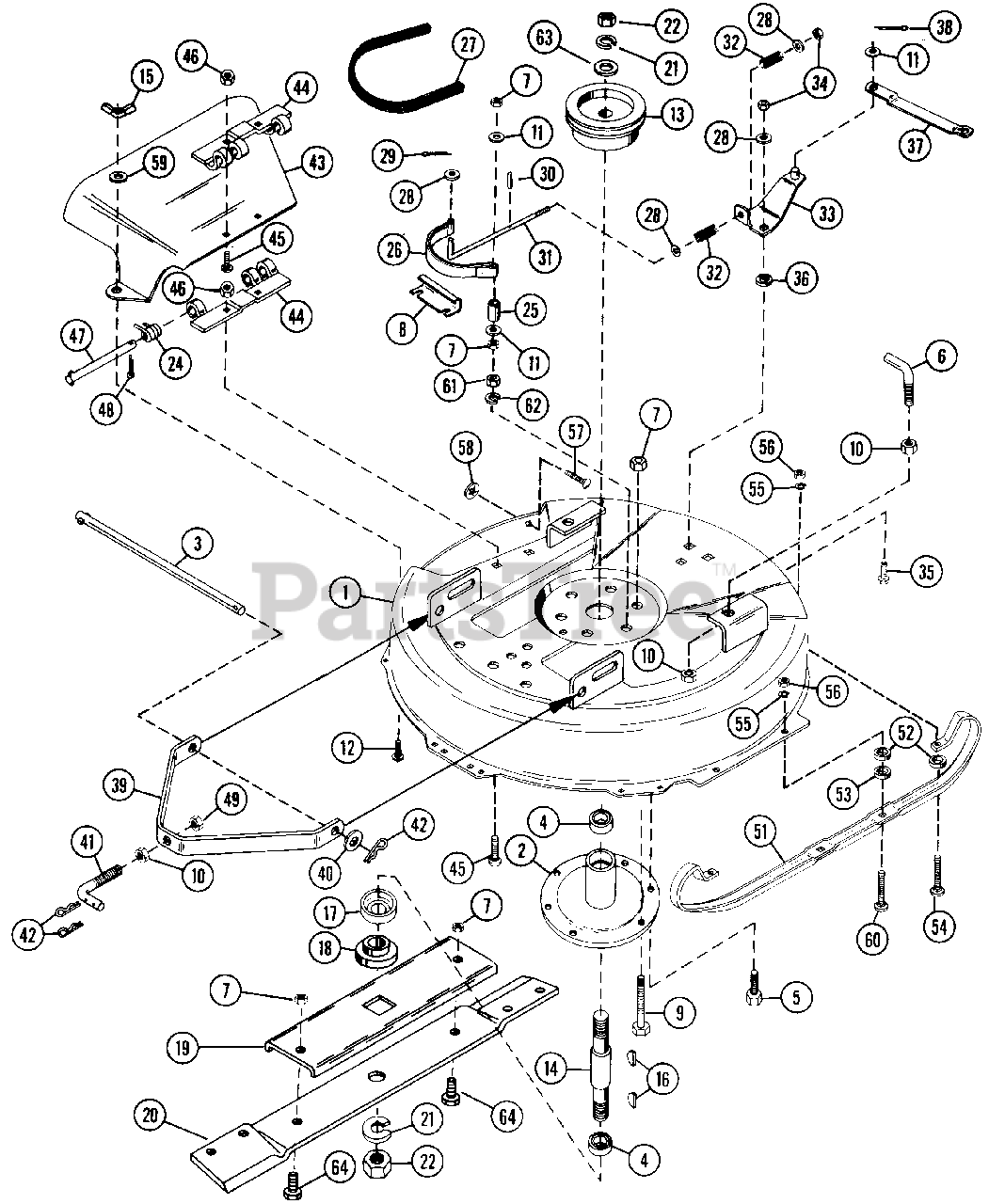

MOWER 32" Parts Diagram

  • Title
1

Gravely 040361

32 INCH MOWER DECK
(Superseded to 53508400)

$

$

Not available

2

Gravely 040362

SPINDLE HOUSING
(Superseded to 00317200)

$

$

Not available

3

Gravely 035988

TOW PIN
(Superseded to 03526200)

$

$

Not available

4

Gravely 035925

RADIAL BEARING
(Superseded to 05412000)

$13.99

$

In Stock, Qty 7

0

5

Gravely 180120

BOLT, HEX 3/8-16X.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 036017

HANGER HOOK
(Superseded to 03510000)

$

$

Not available

7

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 040363

BRAKE BAND SUPPORT
(Superseded to 03590000)

$

$

Not available

9

Gravely 180138

BOLT, HEX 3/8-16X3.00
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 120238

NUT, JAM 1/2-13 HEX
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 126216

BOLT, CARRIAGE 5/16-18X.75

$

$

Not available

13

Gravely 040364

MOWER SHEAVE
(Superseded to 03522800)

$

$

Not available

14

Gravely 040365

SPINDLE SHAFT
(Superseded to 03526700)

$94.99

$

Usually ships in 4-12 days

0

15

Gravely 148313

NUT, WING 5/16-18 TYPE B
(Superseded to 06503800)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 106751

KEY, WOODRUFF .187X.75 #9
(Superseded to 06600300)

$1.49

$

In Stock, Qty 11

0

17

Gravely 035968

BEARING SLINGER
(Superseded to 00341900)

$22.99

$

In Stock, only 2 left!

0

18

Gravely 035973

RETAINER HUB
(Superseded to 00316900)

$

$

Not available

19

Gravely 040366

BLADE TRAY
(Superseded to 02728400)

$64.99

$

Usually ships in 4-12 days

0

20

Gravely 040367

MOWER BLADE, 32"
(Superseded to 02728600)

$56.99

$

In Stock, only 4 left!

0

21

Gravely 131046

WASHER, LOCK 3/4 SP
(Superseded to 06310300)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 426897

NUT, JAM 3/4-10 HEX
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

24

Gravely 040368

SPRING, TORSION .37 I.D.
(Superseded to 08314500)

$14.99

$

In Stock, only 2 left!

0

25

Gravely 040369

SPACER
(Superseded to 03523100)

$

$

Not available

26

Gravely 040370

BRAKE BAND
(Superseded to 03523200)

$

$

Not available

27

Gravely 040371

V-BELT
(Superseded to 07212300)

$45.99

$

In Stock, only 1 left!

0

28

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 112726

PIN, COTTER .06X.50
(Superseded to 21049300)

$

$

Not available

30

Gravely 273936

PIN, SPRING .125X1.000
(Superseded to 05800900)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 040372

BRAKE ROD
(Superseded to 03523300)

$

$

Not available

32

Gravely 036015

SPRING
(Superseded to 08300900)

$20.99

$

Usually ships in 4-12 days

0

33

Gravely 040373

BRAKE ACTUATOR
(Superseded to 03523400)

$5.99

$

Usually ships in 4-12 days

0

34

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 036019

SPACER
(Superseded to 03502700)

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 040374

STRAP
(Superseded to 03523500)

$

$

Not available

38

Gravely 137185

PIN, COTTER .125X1.00
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

39

Gravely 040375

MOWER STRAP
(Superseded to 03523600)

$32.99

$

In Stock, only 1 left!

0

40

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 035992

TOW HOOK
(Superseded to 03523700)

$

$

Not available

42

Gravely 036566

HAIR PIN, INTERNAL
(Superseded to 06702900)

$2.49

$

Usually ships in 4-12 days

0

43

Gravely 040376

CHUTE DEFLECTOR
(Superseded to 53503200)

$

$

Not available

44

Gravely 040377

HINGE PLATE
(Superseded to 02709551)

$27.99

$

In Stock, only 1 left!

0

45

Gravely 126203

BOLT, 1/4-20X.625 RD HD SQ NK
(Superseded to 06213800)

$

$

Not available

46

Gravely 424215

NUT, LOCK 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

47

Gravely 035995

HINGE PIN
(Superseded to 03624200)

$51.99

$

In Stock, only 1 left!

0

48

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

49

Gravely 414074

NUT, LOCK 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

51

Gravely 040378

32 INCH ADJUSTABLE SKID
(Superseded to 03533200)

$

$

Not available

52

Gravely 040379

SPACER
(Superseded to 02729400)

$

$

Not available

53

Gravely 036484

SPACER BUSHING
(Superseded to 00607100)

$14.99

$

Usually ships in 4-12 days

0

54

Gravely 039768

BOLT, 5/16-18X1.75 RD HD SQ NK
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

55

Gravely 131099

WASHER, LOCK 3/8 SP HEAVY
(Superseded to 06300120)

$3.49

$

In Stock, only 3 left!

0

56

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

57

Gravely 126211

BOLT, 5/16-18X.625 RD HD SQ NK
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

58

Gravely 040380

NUT, PUSH 5/16
(Superseded to 06514900)

$0.99

$

In Stock, Qty 20+

0

59

Gravely 446354

WASHER, FLAT .313X.875X.065
(Superseded to 06430700)

$2.99

$

Usually ships in 4-12 days

0

60

Gravely 120230

BOLT, 5/16-18X1.25 RD HD SQ NK
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

61

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

62

Gravely 120382

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

63

Gravely 131018

WASHER, FLAT .938X1.750X.134
(Superseded to 21053300)

$

$

Not available

64

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

NS

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$

$

Not available

NS

Gravely 032872

DECAL, NO STEP
(Superseded to 03542500)

$

$

Not available

NS

Gravely 035331

DECAL, CAUTION

$

$

Not available

NS

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

NS

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0
