40182 (1132-G) - Gravely 32" Lawn Tractor, 11hp Briggs & Stratton, Gear Drive LINKAGE ASSEMBLY Parts Diagram

32" Lawn Tractor, 11hp Briggs & Stratton, Gear Drive

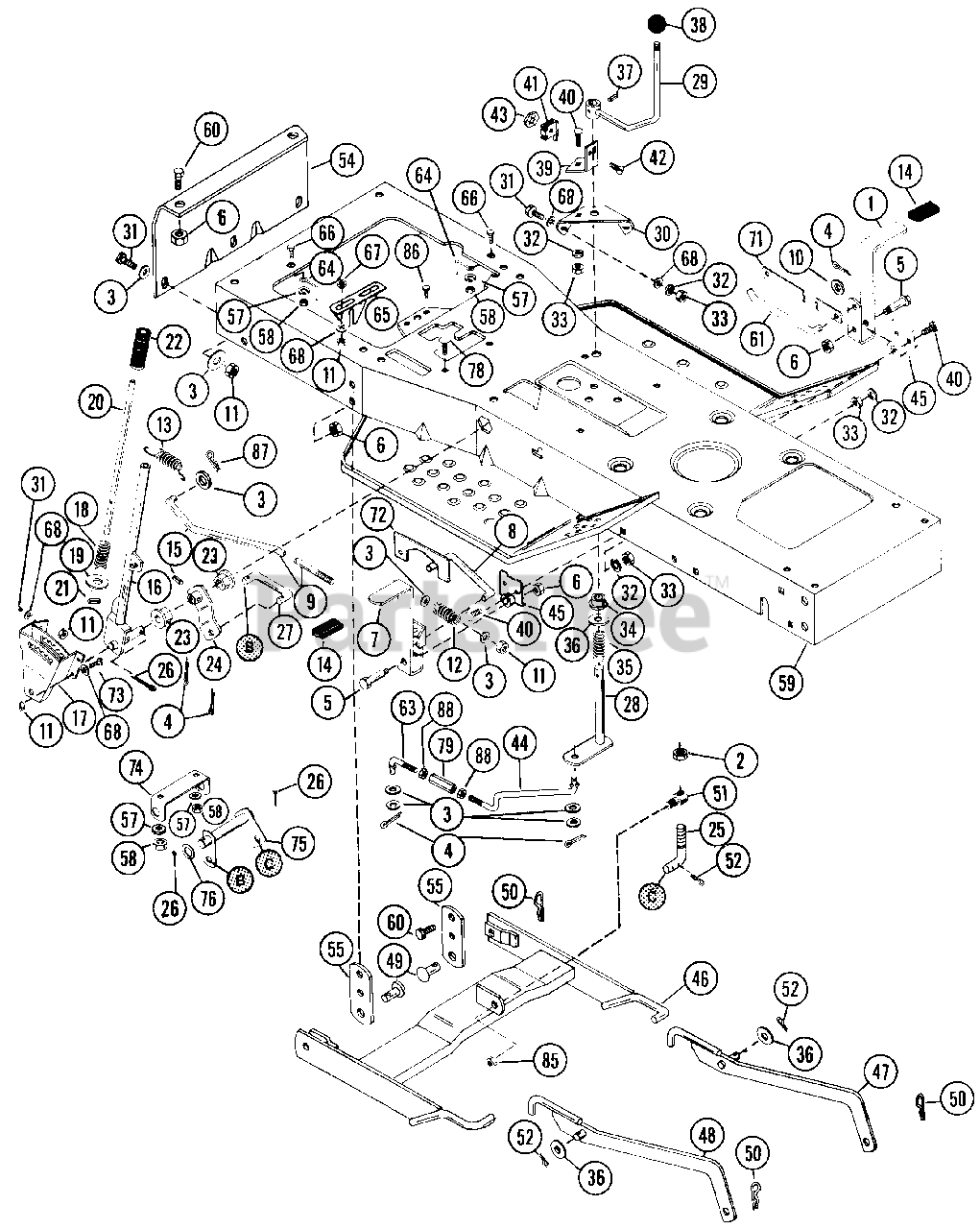

LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Gravely 036024

CLUTCH PEDAL
(Superseded to 03563800)

$

$

Not available

2

Gravely 120238

NUT, JAM 1/2-13 HEX
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 137185

PIN, COTTER .125X1.00
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

5

Gravely 036028

SHOULDER BOLT
(Superseded to 00301600)

$

$

Not available

6

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 036030

BRAKE PEDAL
(Superseded to 03503500)

$

$

Not available

8

Gravely 036031

PARKING BRAKE ROD
(Superseded to 03503600)

$

$

Not available

9

Gravely 036032

BRAKE ROD
(Superseded to 03503700)

$

$

Not available

10

Gravely 120388

WASHER, FLAT .438X1.000X.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 036035

BRAKE SPRING
(Superseded to 08309100)

$

$

Not available

13

Gravely 036036

EXTENSION SPRING
(Superseded to 08317800)

$

$

Not available

14

Gravely 036037

PEDAL COVER
(Superseded to 07502900)

$

$

Not available

15

Gravely 036038

PIN, GROOVE 1/4X1-1/4
(Superseded to 05804000)

$

$

Not available

16

Gravely 036039

LIFT HANDLE
(Superseded to 03504500)

$

$

Not available

17

Gravely 036040

LIFT QUADRANT
(Superseded to 03504600)

$

$

Not available

18

Gravely 036041

SPRING
(Superseded to 08310400)

$14.99

$

Usually ships in 4-12 days

0

19

Gravely 036042

WASHER, FLAT .453X.75X.06
(Superseded to 06409600)

$

$

Not available

20

Gravely 036043

PLUNGER ROD
(Superseded to 03504700)

$

$

Not available

21

Gravely 455313

PIN, SPRING .250X1.750
(Superseded to 05803700)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 036045

GRIP
(Superseded to 07505300)

$

$

Not available

23

Gravely 036046

FLANGE BUSHING
(Superseded to 01212800)

$6.49

$

Usually ships in 4-12 days

0

24

Gravely 036047

LIFT ARM
(Superseded to 03504800)

$

$

Not available

25

Gravely 036048

ADJUSTMENT LINK
(Superseded to 03532200)

$

$

Not available

26

Gravely 137204

PIN, COTTER .125X1.500
(Superseded to 06714300)

$1.99

$

Usually ships in 4-12 days

0

27

Gravely 036050

LIFT LINK
(Superseded to 03504900)

$

$

Not available

28

Gravely 036051

PTO LEVER
(Superseded to 03505700)

$

$

Not available

29

Gravely 036052

PTO HANDLE
(Superseded to 03505800)

$

$

Not available

30

Gravely 036053

BRACKET
(Superseded to 03505900)

$

$

Not available

31

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 131099

WASHER, LOCK 3/8 SP HEAVY
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

33

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

34

Gravely 036057

FLANGE BUSHING
(Superseded to 05503700)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 036058

COMPRESSION SPRING
(Superseded to 08313200)

$38.99

$

Usually ships in 4-12 days

0

36

Gravely 120389

WASHER, FLAT .500X1.250X.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

37

Gravely 454668

PIN, SPRING .187X1.250
(Superseded to 21072600)

$

$

Not available

38

Gravely 036061

SHIFT BALL
(Superseded to 20069800)

$22.99

$

Usually ships in 4-12 days

0

39

Gravely 036062

SWITCH BRACKET
(Superseded to 03506000)

$

$

Not available

40

Gravely 126216

BOLT, CARRIAGE 5/16-18X.75

$

$

Not available

41

Gravely 036107

SWITCH, INTERLOCK - PTO
(Superseded to 02707800)

$17.99

$

Usually ships in 4-12 days

0

42

Gravely 159929

SCREW, MACHINE 10-24X.625
(Superseded to 06111100)

$0.99

$

In Stock, Qty 14

0

43

Gravely 036191

NUT, KEPS 10-24
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

44

Gravely 036067

IDLER LINK
(Superseded to 03534600)

$

$

Not available

45

Gravely 036068

PEDAL PIVOT
(Superseded to 03500500)

$5.99

$

Usually ships in 4-12 days

0

46

Gravely 040381

REAR HANGER
(Superseded to 03522300)

$

$

Not available

47

Gravely 036070

FRONT HANGER ARM - RIGHT
(Superseded to 03563900)

$

$

Not available

48

Gravely 036071

FRONT HANGER ARM - LEFT
(Superseded to 03564000)

$

$

Not available

49

Gravely 036568

CLEVIS PIN
(Superseded to 06821600)

$3.99

$

In Stock, only 1 left!

0

50

Gravely 036566

HAIR PIN, INTERNAL .094
(Superseded to 06702900)

$2.49

$

Usually ships in 4-12 days

0

51

Gravely 036074

ROD END
(Superseded to 03532100)

$

$

Not available

52

Gravely 036075

HAIR PIN, INTERNAL
(Superseded to 06701000)

$2.49

$

Usually ships in 4-12 days

0

54

Gravely 036077

DRAW BAR
(Superseded to 03502300)

$

$

Not available

55

Gravely 036078

HANGER BRACKET
(Superseded to 03588751)

$30.99

$

Usually ships in 4-12 days

0

57

Gravely 120382

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

58

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

59

Gravely 036167

FRAME

$

$

Not available

60

Gravely 180120

BOLT, HEX 3/8-16X.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

61

Gravely 036286

CLUTCH ROD
(Superseded to 03503400)

$

$

Not available

63

Gravely 036084

IDLER ADJUSTER LINK
(Superseded to 03535200)

$

$

Not available

64

Gravely 036235

BELT FINGER
(Superseded to 03175500)

$5.99

$

Usually ships in 4-12 days

0

65

Gravely 036086

CAM ACTUATOR
(Superseded to 03502600)

$

$

Not available

66

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

67

Gravely 036019

SPACER
(Superseded to 03502700)

$3.99

$

Usually ships in 4-12 days

0

68

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

71

Gravely 036090

LINK
(Superseded to 03516700)

$

$

Not available

72

Gravely 036091

CAM
(Superseded to 03516600)

$

$

Not available

73

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

74

Gravely 036093

CENTER LIFT BRACKET
(Superseded to 03500800)

$

$

Not available

75

Gravely 036094

CENTER LIFT LEVER
(Superseded to 03500900)

$

$

Not available

76

Gravely 423315

WASHER, FLAT .813X1.37X.100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

78

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

79

Gravely 036098

NUT, COUPLING 3/8-16
(Superseded to 06514700)

$

$

Not available

85

Gravely 414074

NUT, LOCK 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

86

Gravely 180078

BOLT, HEX 5/16-18X.875
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

87

Gravely 036185

PIN, HAIR INT. 3/32X1.187
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

88

Gravely 124829

NUT, JAM 3/8-16 HEX
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0
