401577-0887-B1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply Parts Diagram

Vertical Engine

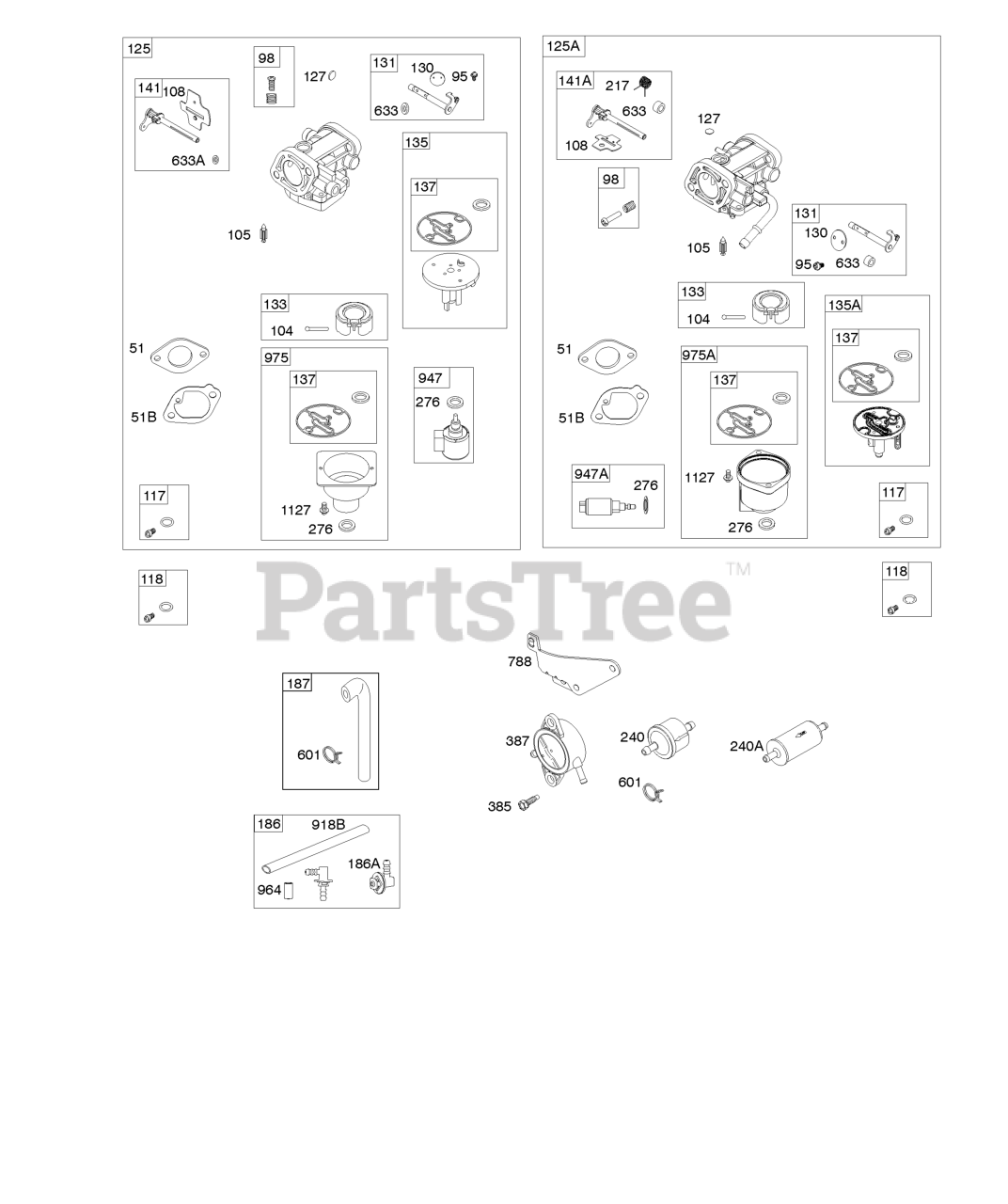

Carburetor, Fuel Supply Parts Diagram

  • Title

51

Briggs & Stratton 699803

GASKET, Intake

$4.49

$

In Stock, only 1 left!

0

51B

Briggs & Stratton 699800

GASKET, Intake

$3.49

$

In Stock, only 3 left!

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 699721

KIT, Idle Speed

$13.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 797410

Valve-Float Needle

$15.99

$

In Stock, Qty 20+

0

108

Briggs & Stratton 699808

VALVE, Choke

$8.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 791406

JET, Main

Note: (Standard)

$18.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 699820

JET, Main

Note: (High Altitude)

$16.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 699807

Carburetor

$262.99

$

In Stock, only 2 left!

0

127

Briggs & Stratton 699810

PLUG, Welch

$5.49

$

In Stock, Qty 8

0

130

Briggs & Stratton 699809

VALVE, Throttle

$11.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 699812

KIT, Throttle Shaft

Note: (NO LONGER AVAILABLE)

$

$

Not available

133

Briggs & Stratton 694914

FLOAT, Carburetor

$28.99

$

In Stock, Qty 8

0

135

Briggs & Stratton 792022

Tube-Fuel Transfer

$49.99

$

In Stock, only 1 left!

0

137

Briggs & Stratton 698781

GASKET, Float Bowl

$9.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 699811

Kit-Choke Shaft

$

$

Not available

186

Briggs & Stratton 799158

CONNECTOR, Hose

Note: (EVAP)

$10.99

$

In Stock, Qty 11

0

186A

Briggs & Stratton 845141

CONNECTOR, Hose

Note: (EVAP)

$10.99

$

In Stock, only 4 left!

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (15" Long)(Cut to Required Length)

$7.99

$

In Stock, Qty 20+

0

217

Briggs & Stratton 799771

SPRING, Choke Return

$7.99

$

In Stock, Qty 7

0

240

Briggs & Stratton 691035

FILTER, Fuel
(Superseded to 84001895)

Note: (Includes Paper Element With A 40 Micron Rating)

$7.99

$

In Stock, Qty 20+

0

240A

Briggs & Stratton 695666

Filter-Fuel
(Superseded to 845125)

Note: (Includes Paper Element With A 30 Micron Rating)

$7.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 695410

WASHER, Sealing

$6.99

$

In Stock, Qty 15

0

385

Briggs & Stratton 691108

SCREW

Note: (Fuel Pump) (Fuel Pump Mounted To Fuel Pump Bracket)

$3.49

$

In Stock, Qty 20+

0

385

Briggs & Stratton 797409

SCREW

Note: (Fuel Pump) (Fuel Pump Mounted To Blower Housing)

$3.99

$

In Stock, only 2 left!

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 691038

CLAMP, Hose

Note: (Black)

$3.99

$

In Stock, Qty 17

0

601

Briggs & Stratton 791850

CLAMP, Hose

Note: (Green)

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 699813

SEAL, Choke/Throttle Shaft

$6.99

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 806131

SEAL, Choke/Throttle Shaft

$5.99

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 793145

Bracket-Fuel Pump

$20.99

$

Usually ships in 2-12 days

0

918B

Briggs & Stratton 799160

HOSE, Vacuum

Note: (Length 9.4 Inches)

$7.99

$

In Stock, only 1 left!

0

947

Briggs & Stratton 699728

Solenoid-Fuel

$185.99

$

In Stock, only 1 left!

0

964

Briggs & Stratton 799159

CAP, Connector

$8.49

$

In Stock, only 1 left!

0

975

Briggs & Stratton 699502

BOWL, Float

$45.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl to Carburetor Body) Aluminum Float Bowl

$4.49

$

In Stock, Qty 20+

0
