40153 (8163-G) - Gravely Lawn Tractor, 16hp, With Hydraulic Lift FUEL AND EXHAUST SYSTEM Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

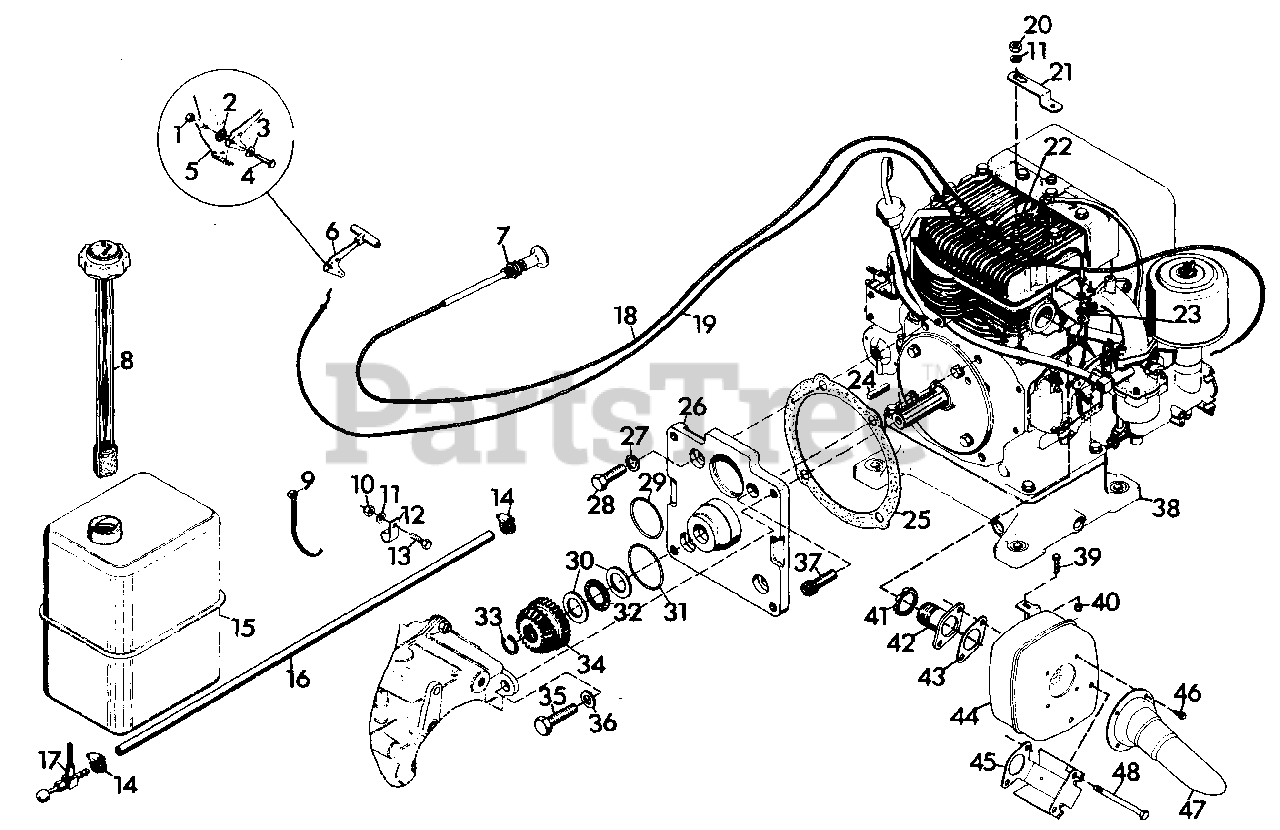

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title
1

Gravely 416430

NUT, LOCK 1/4-28
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

2

Gravely 011772

WASHER, FRICTION
(Superseded to 06431500)

$13.99

$

Usually ships in 4-12 days

0

3

Gravely 011774

WASHER, SPRING
(Superseded to 03493400)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 181566

BOLT, HEX 1/4-28X.75
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

5

Gravely 011770

BRACKET, MOUNTING
(Superseded to 03493300)

$

$

Not available

6

Gravely 011773

ASSEMBLY, KNOB AND LEVER
(Superseded to 06917100)

$

$

Not available

7

Gravely 124925

NUT, JAM 3/8-24 HEX
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

8

Gravely 021415

GAUGE, GAS
(Superseded to 08723700)

$

$

Not available

9

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

10

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 035313

CLAMP, NYLON
(Superseded to 03334000)

$

$

Not available

13

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 032045

CLAMP, HOSE
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 040620

TANK, FUEL
(Superseded to 58700500)

$

$

Not available

16

Gravely 021134

LINE, FUEL
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 018563

VALVE, FUEL 90 DEG. REVERSE FLOW
(Superseded to 08707900)

$

$

Not available

18

Gravely 040161

CONTROL, CHOKE
(Superseded to 20665700)

$

$

Not available

19

Gravely 020942

ASSEMBLY, THROTTLE CONDUIT
(Superseded to 06921800)

$

$

Not available

20

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

21

Gravely 040830

BRACKET, MUFFLER
(Superseded to 21256200)

$

$

Not available

22

Gravely 040834

STUD, MUFFLER
(Superseded to 21256400)

$

$

Not available

23

Gravely 020941

NUT, PLASTIC CONDUIT
(Superseded to 06921700)

$

$

Not available

24

Gravely 018345

KEY, SQUARE .250X1.250
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 018340

GASKET, ADAPTOR
(Superseded to 08900100)

$8.99

$

In Stock, Qty 9

0

26

Gravely 040776

ADAPTOR, ENGINE
(Superseded to 08936500)

$

$

Not available

27

Gravely 131100

WASHER, LOCK 7/16 SP HEAVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

28

Gravely 180146

BOLT, HEX 7/16-14X1.125
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 018347

O-RING, 2.500X2.750X.125
(Superseded to 20256400)

$5.99

$

In Stock, Qty 11

0

30

Gravely 040758

RACE, BEARING THRUST 1.125X1.750X.123/.126
(Superseded to 06434200)

$20.99

$

Usually ships in 4-12 days

0

31

Gravely 018346

O-RING, 3.000X3.188X.094
(Superseded to 05614900)

$3.49

$

In Stock, Qty 11

0

32

Gravely 018341

BEARING, THRUST 1.127X1.740X.078
(Superseded to 05421000)

$10.99

$

In Stock, only 4 left!

0

33

Gravely 018344

RING, RETAINING 1.125 SHAFT
(Superseded to 05712600)

$1.99

$

Usually ships in 4-12 days

0

34

Gravely 018343

GEAR, SPUR AND BEVEL, INPUT
(Superseded to 08790200)

$323.99

$

Usually ships in 4-12 days

0

35

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

36

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

37

Gravely 421648

SCREW, CAP 7/16-14X1.0 SOCKET HEAD
(Superseded to 05933000)

$

$

Not available

38

Gravely 020559

ENGINE, 16 HP B&S

$

$

Not available

39

Gravely 180120

BOLT, HEX 1/4-20X.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 424215

NUT, LOCK 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 010866

NUT, CONDUIT 1" PIPE

$

$

Not available

42

Gravely 040763

WELDMENT, MUFFLER ADAPTOR
(Superseded to 21255300)

$

$

Not available

43

Gravely 040766

GASKET
(Superseded to 21255600)

$

$

Not available

44

Gravely 040765

MUFFLER
(Superseded to 21255500)

$

$

Not available

45

Gravely 040764

SHIELD, MUFFLER
(Superseded to 21255400)

$

$

Not available

46

Gravely 040762

SCREW, TAPPING
(Superseded to 21255200)

$

$

Not available

47

Gravely 040831

DEFLECTOR, EXHAUST
(Superseded to 21256300)

$

$

Not available

48

Gravely 040767

BOLT, HEX SHOULDER
(Superseded to 21255700)

$

$

Not available

NS

Gravely 411893

NUT, LOCK 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

NS

Gravely 160046

SCREW, MACHINE 10-32X.50 PHD
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0
