401 (990357) - Simplicity Wonderboy Rear-Engine Riding Mower Engine, Seat & Hood Group Parts Diagram

Wonderboy Rear-Engine Riding Mower

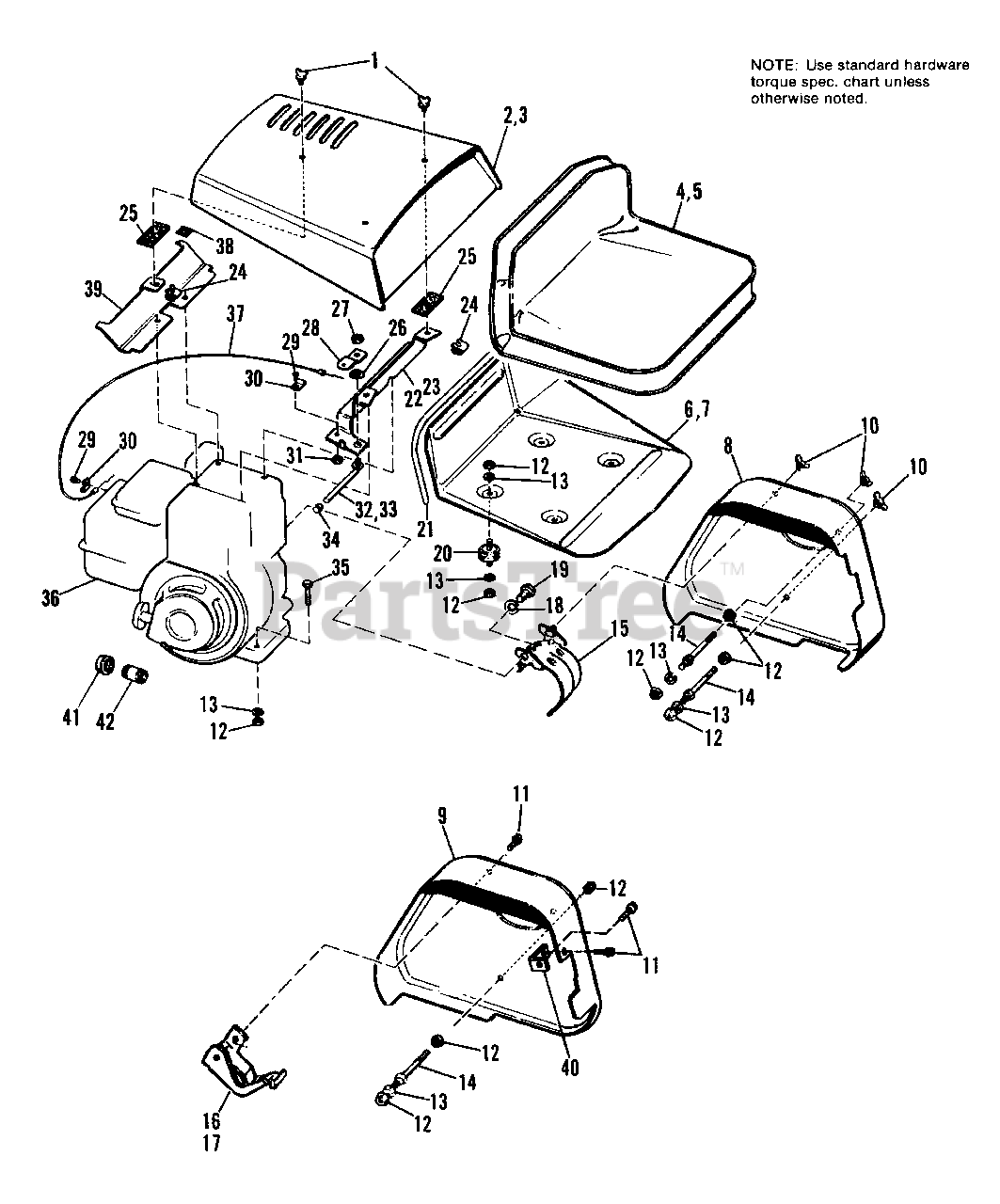

Engine, Seat & Hood Group Parts Diagram

  • Title

1

Simplicity 2828693

SCREW, Thumb, 5/16-18 x 3/4

$

$

Not available

2

Simplicity 158419

HOOD ASSY.

Note: Used on Mfg. No. 990357 & 990391.

$

$

Not available

3

Simplicity 158515

HOOD ASSY.

Note: Used on Mfg. No. 990554, 990614, 990774 & 990775.

$

$

Not available

4

Simplicity 158207

PAD, Seat

Note: Used on Mfg. No. 990357 & 990391.

$

$

Not available

5

Simplicity 162094

PAD, Seat

Note: Used on Mfg. No. 990554, 990614, 990774 & 990775.

$

$

Not available

6

Simplicity 158153

PANEL, Seat

Note: Used on Mfg. No. 990357 & 990391.

$

$

Not available

7

Simplicity 165066

PANEL, Seat

Note: Used on Mfg. No. 990554, 990614, 990774 & 990775.

$

$

Not available

8

Simplicity 158416

GUARD, Pulley

Note: Used on Mfg. No. 990554, 990614, 990774 & 990775.

$

$

Not available

9

Simplicity 158577

GUARD, Pulley

Note: Used on Mfg. No. 990554, 990614, 990774 & 990775.

$

$

Not available

10

Simplicity 918468

NUT, Wing, 5/16-18

Note: Used on Mfg. No. 990357 & 990391.

$

$

Not available

11

Simplicity 2824856

SCREW, Taptite, 5/16- 18 x 1/2

Note: Used on Mfg. No. 990554, 990614, 990774 & 990775.

$

$

Not available

12

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1917356SM

LOCKWASHER, 5/16 (Qty. 13 used on 990554, 990614, 990774, 990775)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 158418

STUD (Qty. 1 on 990554, 990614, 990774, 990775)

$

$

Not available

15

Simplicity 158480

STOP ASSY., Belt

Note: Used on Mfg. No. 990357 & 990391.

$

$

Not available

16

Simplicity 158527

STOP ASSY., Belt (Used on 990554 & 9907714)

$

$

Not available

17

Simplicity 170165

STOP, Belt (Used on 990614 Only)

$

$

Not available

18

Simplicity 2809589

LOCKWASHER, 1/2

$

$

Not available

19

Simplicity 2824086

CAPSCREW, Hex Hd., 1/2-20 x 3/4

$

$

Not available

20

Simplicity 2159085SM

CONNECTOR, Cushion

$10.99

$

In Stock, only 2 left!

0

21

Simplicity 159177

TAPE, 2 ft.

$

$

Not available

22

Simplicity 158423

SUPPORT, Hood, Front

Note: Used on Mfg. No. 990375, 990391, 990554 & 990614.

$

$

Not available

23

Simplicity 174746

SUPPORT, Hood, Front (Used on 990774, 9910775)

$

$

Not available

24

Simplicity 2828701

NUT, Retainer

$

$

Not available

25

Simplicity 121399

FELT

$

$

Not available

26

Simplicity 2159107SM

WASHER, Throttle

$6.99

$

Usually ships in 2-12 days

0

27

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

28

Simplicity 2158424

ARM, Throttle

$

$

Not available

29

Simplicity 922121

SCREW, Machine, Rd. Hd., #10-32 x 3/8

$

$

Not available

30

Simplicity 2158475SM

CLIP

$5.49

$

In Stock, only 4 left!

0

31

Simplicity 2817415

NUT, Hex, Full, #10-32

$

$

Not available

32

Simplicity 158186

HANDLE, Throttle Control

Note: Used on Mfg. No. 990357 & 990391.

$

$

Not available

33

Simplicity 158587

HANDLE, Throttle Control

Note: Used on Mfg. No. 990554, 990614, 990774 & 990775.

$

$

Not available

34

Simplicity 159112

KNOB

$

$

Not available

35

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

36

ENGINE, Briggs & Stratton, Model 100202, Type 0189-01

$

$

Not available

37

Simplicity 158425

CABLE & WIRE ASSY.

$

$

Not available

38

Simplicity 158450

GASKET, Felt

$

$

Not available

39

Simplicity 158449

SUPPORT, Hood, Rear

$

$

Not available

40

Simplicity 2158611

BRACKET, Pulley Guard

$

$

Not available

41

Simplicity 901751

CAP, Pipe, Nipple

Note: Used on Mfg. No. 990554, 990614, 990774 & 990775.

$

$

Not available

42

Simplicity 158610

NIPPLE, Pipe

Note: Used on Mfg. No. 990554, 990614, 990774 & 990775.

$

$

Not available
