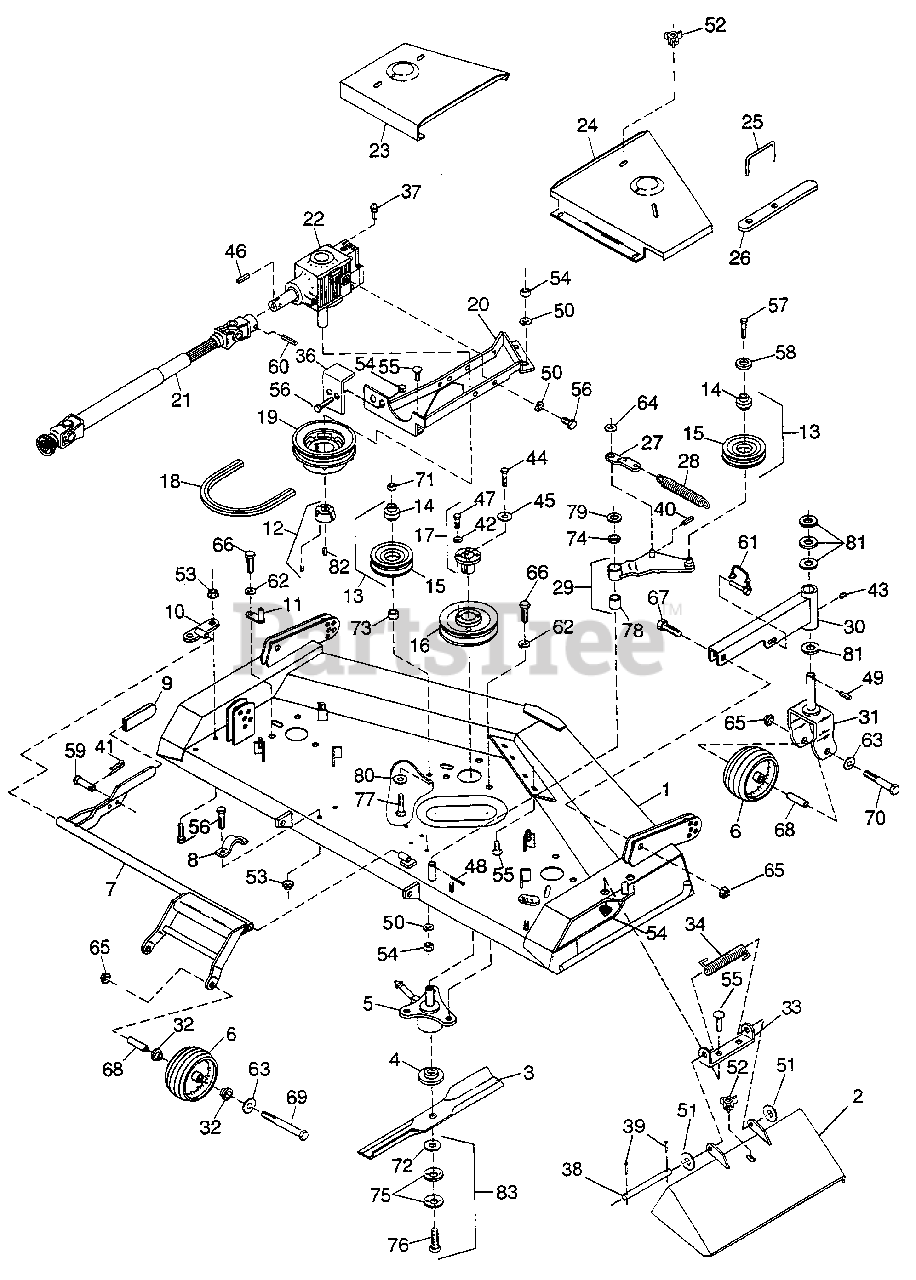

401 (590-401-100) - Cub Cadet 60" Mower Deck, Mid Mount Main Frame Parts Diagram

60" Mower Deck, Mid Mount

Main Frame Parts Diagram

  • Title

1

Frame

Note: (Not sold separately)

$

$

Not available

2

Cub Cadet WM-66866

Discharge chute assembly

$

$

Not available

3

Cub Cadet 759-3779

CW 20-3/4 Flat high-suction blade kit w/Hdwe

$212.99

$

In Stock, only 1 left!

0

4

Cub Cadet WM-33736

5/8 ID x 3 x 7/16 Shoulder washer

$

$

Not available

5

Cub Cadet WM-66562

CW Blade spindle assembly

Note: (See "Blade Spindle" illustration and parts list for breakdown)

$

$

Not available

6

Cub Cadet WM-66508

6.25 x 3.25 x .75 Bore steel wheel

$136.99

$

In Stock, Qty 9

0

7

Cub Cadet WM-34533

Rear gauge wheel shaft asy

$

$

Not available

8

Cub Cadet WM-34581

1.38 Diameter clamp

$

$

Not available

9

Cub Cadet WM-34584

.165 x .97 x 3.5 Grip

$

$

Not available

10

Cub Cadet WM-34561

Gauge wheel shaft anchor asy

$

$

Not available

11

Cub Cadet WM-34531

Belt guide assembly

$

$

Not available

12

Cub Cadet WM-66505

Taper lock bushing, .81 bore

Note: (Includes set screws)

$

$

Not available

13

Cub Cadet WM-4336

V-Groove idler with bearing

$

$

Not available

14

Cub Cadet WM-6095

.626 ID x 1.85 OD Ball bearing
(Superseded to WM-06095)

$77.99

$

In Stock, only 1 left!

0

15

Cub Cadet WM-4335

4.50 OD V-Groove idler
(Superseded to WM-4336)

$

$

Not available

16

Cub Cadet WM-34505

1 BK, 4.6 H Sheave

$

$

Not available

17

Cub Cadet WM-34756

H3/4 Bushing with key and hardware

$72.99

$

Usually ships in 3-6 days

0

18

Cub Cadet WM-66503

V-Belt WW 113 w/Aramid

$257.99

$

Usually ships in 3-6 days

0

19

Cub Cadet WM-66507

Offset sheave, 6.65 1B 1210

$

$

Not available

20

Cub Cadet WM-66868

Gearbox mounting asy, Right

$

$

Not available

21

Cub Cadet WM-67558

Driveshaft assembly complete, 17.5"

Note: (For 7000, 7192, 7194, 7195, 7200 & 7205 tractors) (See "Drive Shaft" illustrations and parts lists for breakdown)

$1119.99

$

Usually ships in 3-6 days

0

21

Cub Cadet WM-66544

Driveshaft assembly complete, 17.5"
(Superseded to WM-67558)

Note: (For 7190 series tractor) (See "Drive Shaft" illustrations and parts lists for breakdown)

$1119.99

$

Usually ships in 3-6 days

0

21

Cub Cadet WM-66543

Driveshaft assembly complete, 22"
(Superseded to WM-1020635)

Note: (For 7232, 7234, 7235, 7260, 7265, 7272, 7274, 7275, 7300 & 7305 tractors) (See "Drive shaft" illustrations and parts lists)

$

$

Not available

22

Cub Cadet WM-66504

Finned 1:1 bevel gearbox
(Superseded to WM-66504P)

Note: (See "Gearbox" illustration and parts list for breakdown)

$

$

Not available

23

Cub Cadet WM-34597

Left belt shield

$

$

Not available

24

Cub Cadet WM-34596

Right belt shield

$

$

Not available

25

Cub Cadet WM-34590

Spindle lock wrench

$

$

Not available

26

Cub Cadet WM-34595

Spindle wrench handle

$

$

Not available

27

Cub Cadet WM-34522

Moving spring support

$

$

Not available

28

Cub Cadet WM-31360

.2 x 1.45 x 8.1 Extension spring

$

$

Not available

29

Cub Cadet WM-34619

Idler arm assembly, 7.75"

$185.99

$

In Stock, only 1 left!

0

30

Cub Cadet WM-32837

Caster arm assembly

$

$

Not available

31

Cub Cadet WM-34625

Wheel yoke assembly, 6" wheel

$150.99

$

Usually ships in 3-6 days

0

32

Cub Cadet WM-65578

.75 x 1.385 Flanged wheel bearing with groove

$27.99

$

In Stock, only 1 left!

0

33

Cub Cadet WM-66865

Deck bracket

$

$

Not available

34

Cub Cadet WM-66815

Torsion spring, .207 x .94 x 4.86

$

$

Not available

36

Cub Cadet WM-66874

Lift stop, .25 x 2.5 x 4.69

Note: (For 7000, 7192, 7194, 7195, 7200 & 7205 tractors)

$

$

Not available

36

Cub Cadet WM-67029

Lift stop, .38 x 2.5 x 3.75

Note: (For 7232, 7234, 7235, 7272, 7274, 7275, 7300 & 7305 tractors with turf tires)

$

$

Not available

36

Cub Cadet WM-66945

Lift stop, 7.5

Note: (For 7260, 7265, 7272, 7275, 7300 & 7305 tractors with Ag tires) - Order lift stop extension kit P/N 19069

$

$

Not available

37

Cub Cadet WM-34576

Plastic gearbox vent plug

$

$

Not available

38

Cub Cadet WM-11760

3/8 x 7-1/4 Pin, 6-chain

$

$

Not available

39

Cub Cadet WM-1256

3/16 x 1 Cotter pin

Note: Obtain Locally

$

$

Currently unavailable

40

Cub Cadet WM-21019

3/16 x 3/4 Spirol pin

$

$

Not available

41

Cub Cadet WM-2688

1/8 Safety pin

Note: Obtain Locally

$

$

Currently unavailable

42

Cub Cadet WM-1985

1/4 Standard lockwasher
(Superseded to 936-0329)

Note: Obtain Locally

$4.49

$

In Stock, Qty 11

0

43

Cub Cadet WM-1972

1/4-28 Taper thread grease fitting
(Superseded to 937-0146)

Note: Obtain Locally

$5.49

$

In Stock, only 2 left!

0

44

Cub Cadet WM-2457

1/4 NC x 3/4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

45

Cub Cadet WM-32806

1/4 x 7/8 x 7 GA Washer

$

$

Not available

46

Cub Cadet WM-62234

1/4 x 1/4 x 7/8 Key

Note: Obtain Locally

$

$

Currently unavailable

47

Cub Cadet WM-10378

1/4 NC x 1 Hex head cap screw GR5

Note: Obtain Locally

$

$

Currently unavailable

48

Cub Cadet WM-1285

1/4 x 1-1/2 Cotter pin

Note: Obtain Locally

$

$

Currently unavailable

49

Cub Cadet WM-5608

1/4 x 1-1/2 Spring pin

Note: Obtain Locally

$

$

Currently unavailable

50

Cub Cadet WM-838

3/8 Standard lockwasher

Note: Obtain Locally

$3.99

$

Usually ships in 3-6 days

0

51

Cub Cadet WM-565

3/8 Standard flat washer

Note: Obtain Locally

$

$

Currently unavailable

52

Cub Cadet WM-66840

3/8 NC 3-Prong knob

$

$

Not available

53

Cub Cadet WM-14350

3/8 NC Flanged hex locknut

$

$

Not available

54

Cub Cadet WM-835

3/8 NC Hex nut, plated
(Superseded to 712-0798)

Note: Obtain Locally

$4.49

$

In Stock, only 2 left!

0

55

Cub Cadet WM-6697

3/8 NC x 1 Carriage bolt GR5

Note: Obtain Locally

$

$

Not available

56

Cub Cadet WM-839

3/8 NC x 1 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

57

Cub Cadet WM-64518

3/8 NF x 1 Hex head cap screw GR5

$

$

Not available

58

Cub Cadet WM-21298

3/8 x 1 x 7 GA Washer

$

$

Not available

59

Cub Cadet WM-16120

3/8 x 1-1/4 Clevis pin

$

$

Not available

60

Cub Cadet WM-11606

Spirol pin 3/8 x 1-1/2

$7.99

$

Usually ships in 3-6 days

0

61

Cub Cadet WM-33000

Lynch pin 3/8 x 2-1/4

$

$

Not available

62

Cub Cadet WM-855

1/2 Extra-heavy lockwasher
(Superseded to 936-0921)

Note: Obtain Locally

$4.49

$

In Stock, Qty 6

0

63

Cub Cadet WM-854

1/2 Standard flat washer

Note: Obtain Locally

$

$

Not available

64

Cub Cadet WM-3598

1/2 SAE Flat washer

Note: Obtain Locally

$

$

Currently unavailable

65

Cub Cadet WM-11900

1/2 NC Flanged hex locknut

Note: Obtain Locally

$5.49

$

In Stock, only 1 left!

0

66

Cub Cadet WM-4119

1/2 NF x 1 Hex head cap screw GR5

$

$

Not available

67

Cub Cadet WM-25474

1/2 NC x 2-1/4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

68

Cub Cadet WM-29368

1/2 x 3/4 x 3-3/8 Sleeve

$18.99

$

In Stock, Qty 7

0

69

Cub Cadet WM-3508

1/2 NC x 4-1/2 Hex head cap screw GR5

$

$

Currently unavailable

70

Cub Cadet WM-23479

1/2 NC x 5 Hex head cap screw GR5

$4.99

$

In Stock, only 3 left!

0

71

Cub Cadet WM-6239

5/8 NC Hex locknut

Note: Obtain Locally

$

$

Currently unavailable

72

Cub Cadet WM-692

5/8 Standard flat washer

Note: Obtain Locally

$

$

Currently unavailable

73

Cub Cadet WM-1791

5/8 x 1 x 9/16 HT Sleeve

$

$

Not available

74

Cub Cadet WM-22060

5/8 x 1 x 1/4 Felt seal

$

$

Not available

75

Cub Cadet WM-10635

5/8 x 1-3/4 x 14 GA Cup washer

$

$

Not available

76

Cub Cadet WM-34582

5/8 NC x 2 Nylok hex head cap screw GR5

$

$

Not available

77

Cub Cadet WM-5836

5/8 NC x 2-1/2 Carriage bolt

Note: Obtain Locally

$

$

Currently unavailable

78

Cub Cadet WM-16162

3/4 ID x 1 OD x 1-1/2 Bronze bushing

$

$

Not available

79

Cub Cadet WM-11036

3/4 x 1-1/2 x 18 GA Shim washer

$

$

Not available

80

Cub Cadet WM-28539

7/8 Standard SAE flat washer

$

$

Not available

81

Cub Cadet WM-31303

1-1/16 x 1-9/16 x 10 GA Washer

$

$

Not available

82

Cub Cadet WM-62233

Woodruff key, 3/16 x 3/4

Note: Obtain Locally

$

$

Currently unavailable

83

Cub Cadet WM-34755

5/8 NC x 2 Right hand blade bolt and washer kit
(Superseded to WM-1015827)

$

$

Not available

?84

Cub Cadet WM-6698

3/8 NC Hex locknut
(Superseded to 912-3000)

Note: Obtain Locally

$4.49

$

In Stock, Qty 9

0

?91

Cub Cadet WM-19020

English safety decal set

$

$

Not available

?92

Cub Cadet WM-59020

French safety decal set

$

$

Not available
