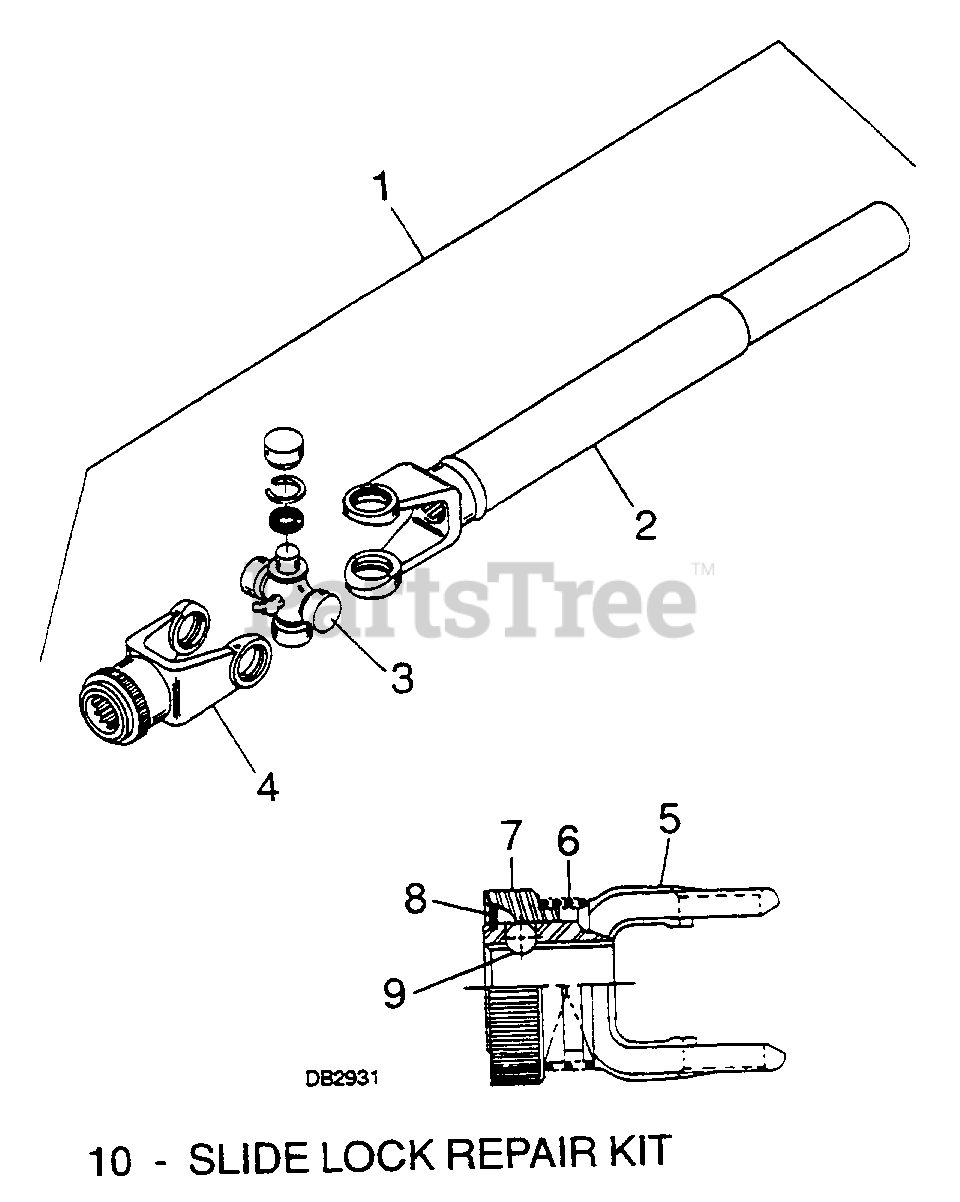

401 (590-401-100) - Cub Cadet 60" Mower Deck, Mid Mount att Drive Shaft - Rear Half Parts Diagram

60" Mower Deck, Mid Mount

Drive Shaft - Rear Half Parts Diagram

  • Title
1

U-Joint drive-rear half assembly

$

$

Not available

2

Cub Cadet WM-34513

Yoke, tube and sleeve assembly 22.5-#0600

Note: (For 7232, 7234, 7235, 7260, 7265, 7272, 7274, 7275, 7300, 7305 tractors)

$

$

Not available

2

Cub Cadet WM-66546

Yoke tube and sleeve 11.25
(Superseded to WM-67558)

Note: (For 7000, 7192, 7194, 7195, 7200 & 7205 tractors)

$1119.99

$

Usually ships in 3-6 days

0

3

Cub Cadet WM-65689

U-Joint repair kit-#0600

$

$

Not available

4

Cub Cadet WM-34508

Slide collar yoke assembly, 15-tooth #0600

Note: (Includes items 5,6,7,8 & 9)

$

$

Not available

5

Slide collar yoke

$

$

Not available

6

Spring

$

$

Not available

7

slide collar

$

$

Not available

8

Snap ring

$

$

Not available

9

Steel ball

$

$

Not available

10

Cub Cadet WM-65690

Slide lock repair kit #0600

Note: (Includes items 6,7,8 & 9)

$259.99

$

Usually ships in 3-6 days

0
