401 (590-401-100) - Cub Cadet 60" Mower Deck, Mid Mount att 401 Front Mounting - 7232,7234,7235,7260,7265,7272,7274,7275,7300,7305 Parts Diagram

60" Mower Deck, Mid Mount

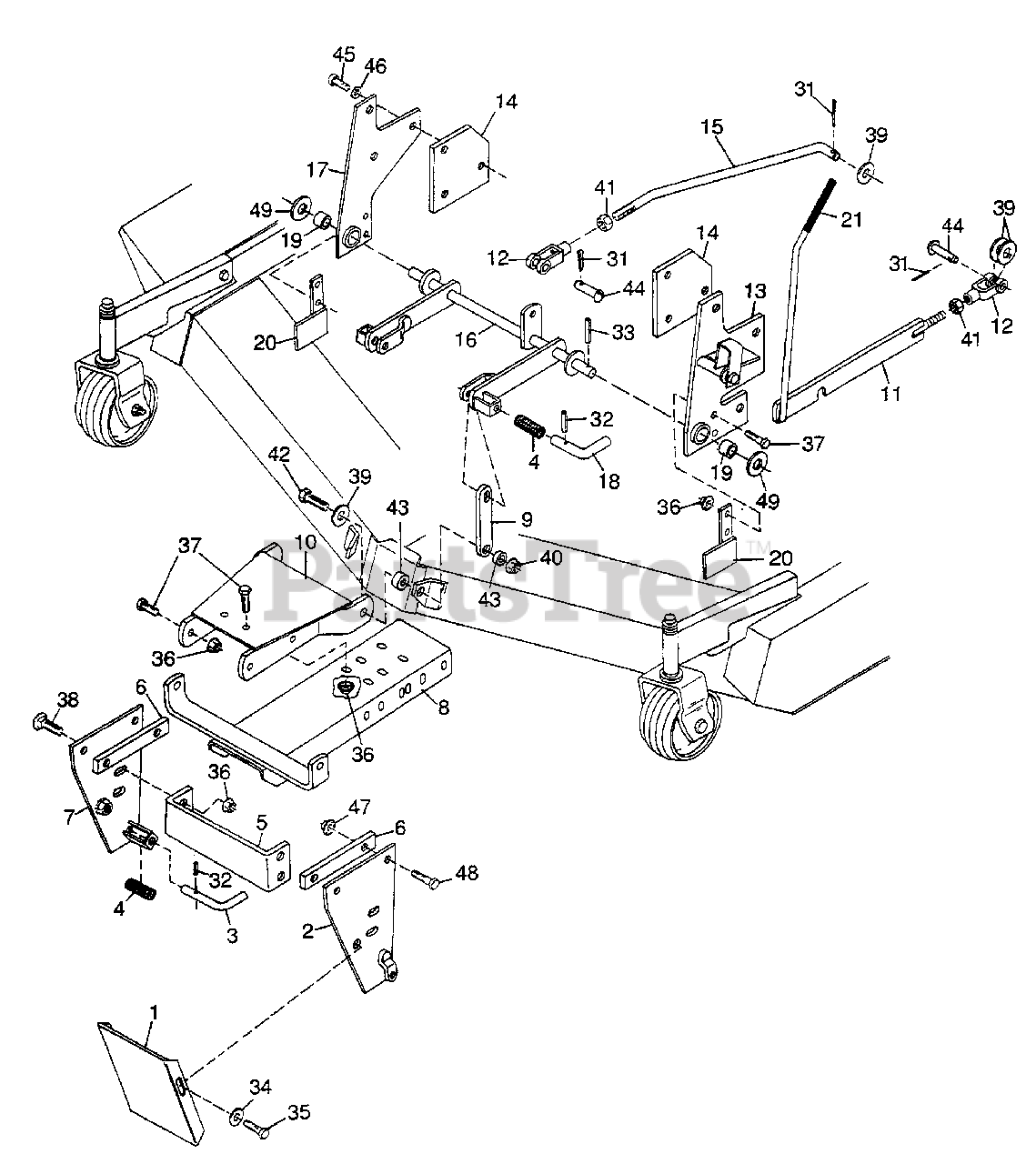

401 Front Mounting - 7232,7234,7235,7260,7265,7272,7274,7275,7300,7305 Parts Diagram

  • Title

1

Cub Cadet WM-66881

Front mounting plate cover

$

$

Not available

2

Cub Cadet WM-66939

Left front mounting bracket

$

$

Not available

3

Cub Cadet WM-66836

Pin, Bent .5 dia. x 1.96

$

$

Not available

4

Cub Cadet WM-66510

Compression spring, .06 x .66 x 2.5

$

$

Not available

5

Cub Cadet WM-66884

Mounting plate brace bar, 11.69

$

$

Not available

6

Cub Cadet WM-66873

Link, .62 x 1.75 x 7.31

$

$

Not available

7

Cub Cadet WM-66938

Right front mounting bracket

$

$

Not available

8

Cub Cadet WM-67010

Front adjustable channel

$

$

Not available

9

Cub Cadet WM-66906

Link, .38 x 1.5 x 7.88

$

$

Not available

10

Cub Cadet WM-15619

Rear adjustable channel

$

$

Not available

11

Cub Cadet WM-66339

Lock-up bar

$

$

Not available

12

Cub Cadet WM-33835

Adjustable clevis yoke, .50-13 x 3.0

$54.99

$

In Stock, only 1 left!

0

13

Cub Cadet WM-66323

Left front lift stop

Note: (Includes bushing #19)

$

$

Not available

14

Cub Cadet WM-66329

Loader plate, .38 x 5.5 x 6.5

$

$

Not available

15

Cub Cadet WM-66916

Bent pin, .5 x 19.3 x 1/2-13 NC

$

$

Not available

16

Cub Cadet WM-66887

Front rockshaft assembly

$

$

Not available

17

Cub Cadet WM-66322

Right front lift stop

Note: (Includes bushing #19)

$

$

Not available

18

Cub Cadet WM-66923

Bent pin, .5 x 1.62

$

$

Not available

19

Cub Cadet WM-33545

1.015 x 1.25 x 1 Oilite bushing

$

$

Not available

20

Cub Cadet WM-66326

Lift stop extension

$

$

Not available

21

Cub Cadet WM-35917

Handle grip

$

$

Not available

31

Cub Cadet WM-1256

3/16 x 1 Cotter pin

Note: Obtain Locally

$

$

Currently unavailable

32

Cub Cadet WM-4115

3/16 x 1-1/8 spring pin
(Superseded to 715-0150)

Note: Obtain Locally

$4.49

$

In Stock, Qty 17

0

33

Cub Cadet WM-21022

1/4 x 2 Spirol pin

$

$

Not available

34

Cub Cadet WM-4378

5/16 Standard flat washer

Note: Obtain Locally

$

$

Currently unavailable

35

Cub Cadet WM-6096

5/16 NC x 3/4 Hex head cap screw GR5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet WM-14350

3/8 NC Flanged hex locknut

$

$

Not available

37

Cub Cadet WM-839

3/8 NC x 1 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

38

Cub Cadet WM-24890

3/8 NC x 1-1/4 Carriage bolt

Note: Obtain Locally

$

$

Currently unavailable

39

Cub Cadet WM-854

1/2 Standard flat washer

Note: Obtain Locally

$

$

Not available

40

Cub Cadet WM-11900

1/2 NC Flanged hex locknut

Note: Obtain Locally

$5.49

$

In Stock, only 1 left!

0

41

Cub Cadet WM-13859

1/2 NC Hex jam nut
(Superseded to 912-3048)

Note: Obtain Locally

$4.99

$

In Stock, Qty 20+

0

42

Cub Cadet WM-3699

1/2 NC x 2 Hex hex head cap screw GR5

Note: Obtain Locally

$

$

Currently unavailable

43

Cub Cadet WM-22086

1/2 x 3/4 x 1/2 Sleeve

$

$

Not available

44

Cub Cadet WM-33817

1/2 x 1-3/4 Clevis pin

$

$

Not available

45

Cub Cadet WM-34635

14mm x 2.0 P x 40mm Hex head cap screw

$

$

Not available

46

Cub Cadet WM-62580

9/16 Standard lockwasher

Note: Obtain Locally

$

$

Not available

47

Cub Cadet WM-6239

5/8 NC Hex locknut

Note: Obtain Locally

$

$

Currently unavailable

48

Cub Cadet WM-902

5/8 NC x 2 Hex head cap screw GR5

Note: Obtain Locally

$

$

Currently unavailable

49

Cub Cadet WM-1863

1" SAE Flat washer

$

$

Not available
