401 (190-401-100) - Cub Cadet 54" Snow Blade Blade And "A" Frame Assembly Parts Diagram

54" Snow Blade

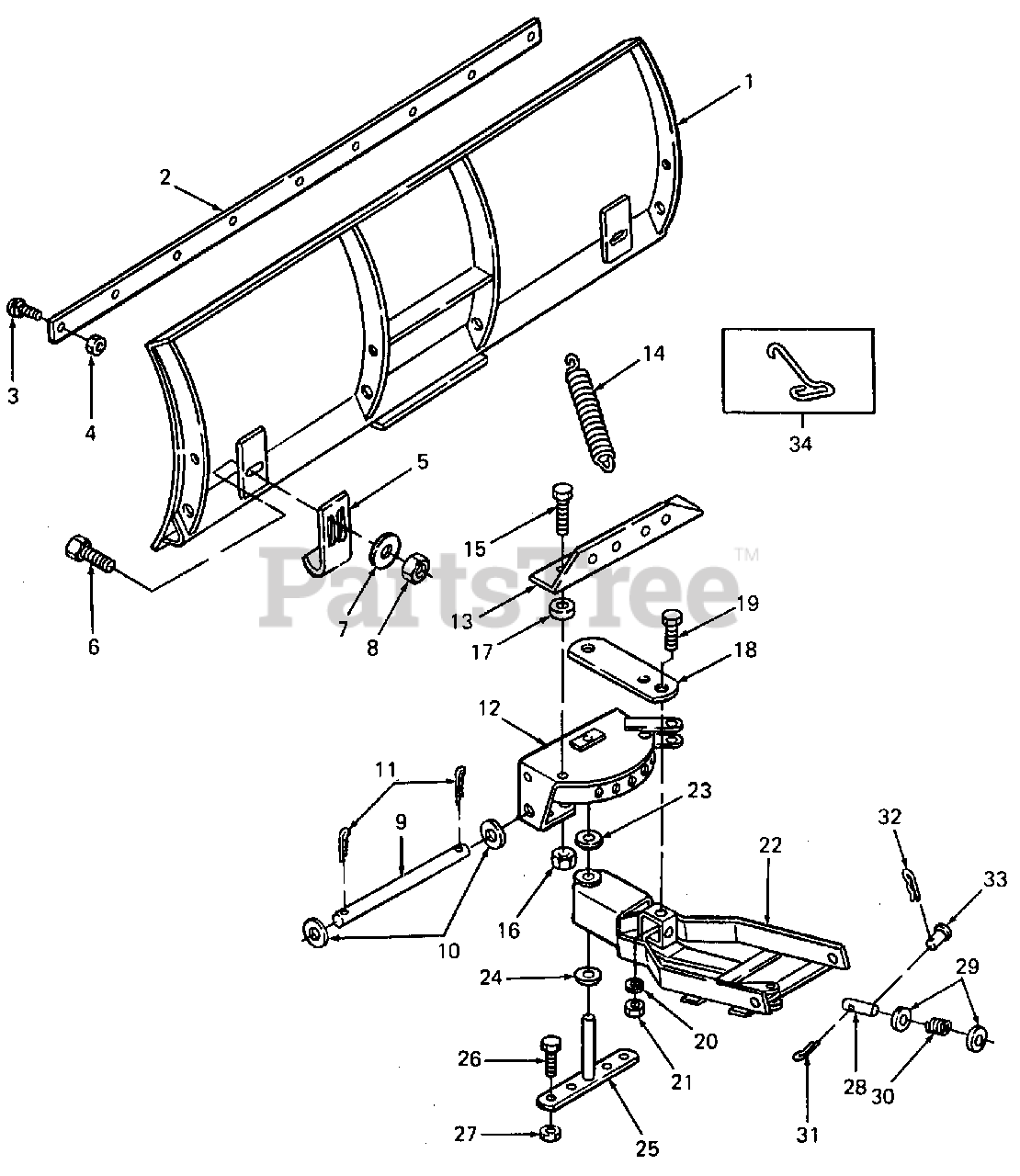

Blade And "A" Frame Assembly Parts Diagram

  • Title

1

Cub Cadet HA-12329

Snowblade - 54 Inch

$

$

Not available

2

Cub Cadet HA-12355

Edge, Blade Cutting
(Superseded to HA-19385-0637)

$

$

Not available

3

Cub Cadet 710-0276

Bolt, Sq Neck Carriage, 5/16-18 X 1.0 Lg

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 712-3004

Nut, Hex Flange Lock, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet HA-12356

Shoe, Skid

$

$

Not available

6

Cub Cadet 710-3097

Bolt, Sq Neck Carriage, 3/8-16 X 1.0 Lg

$6.99

$

In Stock, Qty 5

0

7

Cub Cadet 736-3054

Washer, Flat, 7/16 X 1.0 X .08 Thk
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

8

Cub Cadet 712-3005

Nut, Hex Flange, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet HA-12359

Pin, Locating

$

$

Not available

10

Cub Cadet 736-3023

Washer, Flat, .812 X 1.46 X .108 Thk
(Superseded to 736-0134)

$4.49

$

In Stock, Qty 10

0

11

Cub Cadet 714-0470

Pin, Cotter, 1/8 Dia X 1.25 Lg

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet HA-13387

Pivot Assembly

Variations

Cub Cadet HA-13387-0637

PIVOT ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet HA-13385

Angle, Pivot Stop

$

$

Not available

14

Cub Cadet HA-12383

Spring, Brakeover

$

$

Currently unavailable

15

Cub Cadet HA-GM180177

Screw, Hex Cap, 1/2-13 X 1.5 Lg GR5

$

$

Currently unavailable

16

Cub Cadet 712-3022

Nut, Hex Center Lock, 1/2-13

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet HA-13382

Spacer, Pivot Stop

$

$

Not available

18

Cub Cadet HA-13384

Strap

$

$

Not available

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 X 1.25 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 712-3034

Nut, Hex Jam, 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 X 1.25 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 6

0

21

Cub Cadet 712-0206

Nut, Hex, 1/2-13

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet HA-13386

"A" Frame Assembly

$

$

Not available

23

Cub Cadet HA-3396

Washer
(Superseded to 936-0445)

$

$

Not available

24

Cub Cadet 736-3023

Washer, Flat, .812 X 1.46 X .108 Thk
(Superseded to 736-0134)

$4.49

$

In Stock, Qty 10

0

25

Cub Cadet HA-12716

Pin, Pivot

$

$

Not available

26

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 X 1.25 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-3022

Nut, Hex Center Lock, 1/2-13

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet HA-12797

Pin, Lock

$

$

Not available

29

Cub Cadet HA-GM110962

Washer, Flat, 21/32 X 1-5/16 X .095 Thk
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet HA-5681

Spring

$9.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 714-0470

Pin, Cotter, 1/8 Dia X 1.25 Lg

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet HA-3090

Pin, Quick Attach

$

$

Not available

33

Cub Cadet HA-3694

Pin, Clevis

$

$

Not available

34

Cub Cadet HA-12846

Hook, Spring Mounting

$

$

Not available
