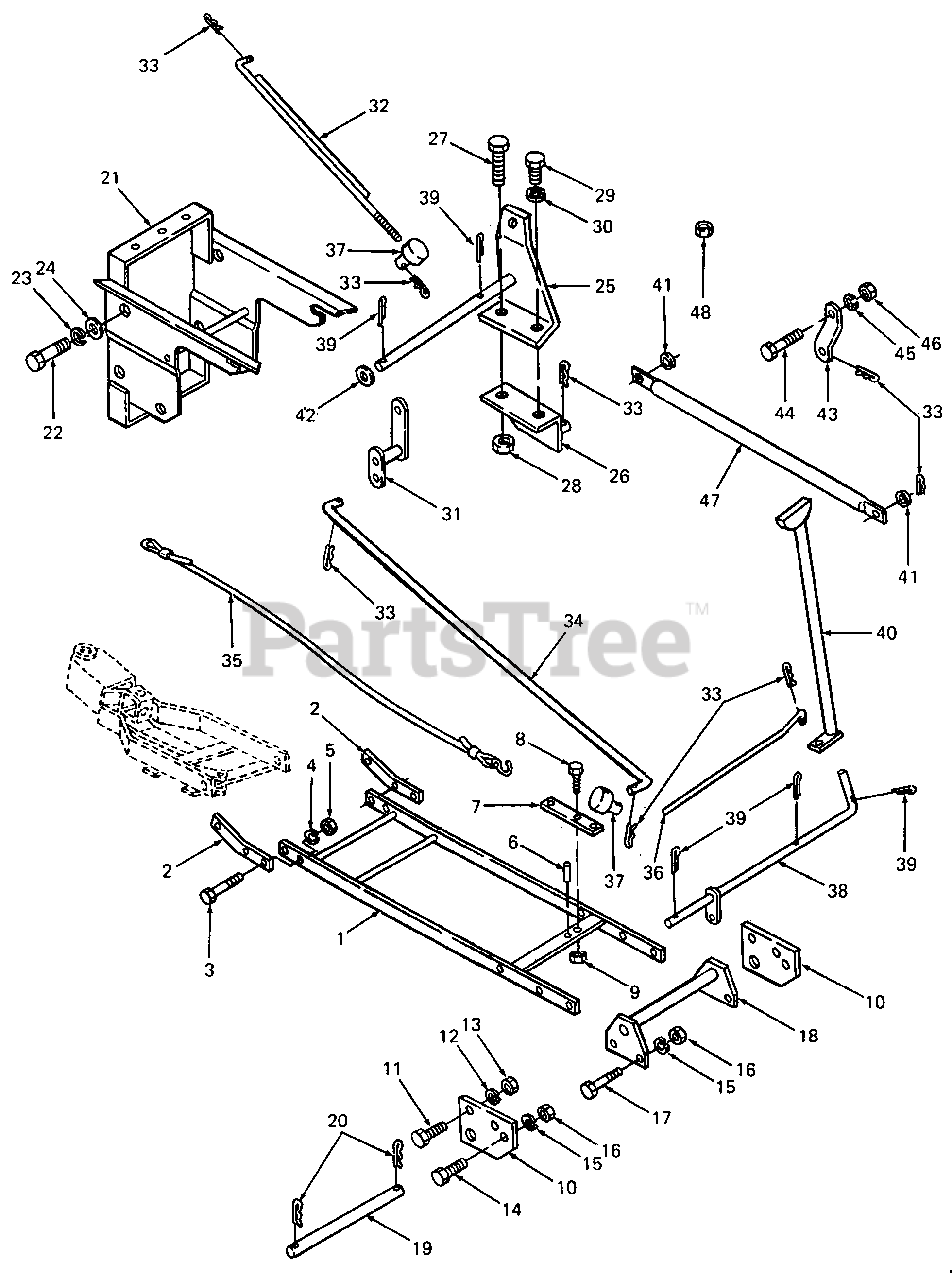

401 (190-401-100) - Cub Cadet 54" Snow Blade att Mounting Frame & Pivot Control Parts Diagram

54" Snow Blade

Mounting Frame & Pivot Control Parts Diagram

  • Title

1

Cub Cadet HA-12754

Frame, Mounting

$

$

Currently unavailable

2

Cub Cadet HA-12758

Strap, Front Mounting

$

$

Not available

3

Cub Cadet HA-GM180177

Screw, Hex Cap, 1/2-13 X 1.5 Lg GR5

$

$

Currently unavailable

4

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 712-0206

Nut, Hex, 1/2-13

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet HA-GM455481

Pin, Roll

$

$

Not available

7

Cub Cadet HA-12770

Strap, Pivot Control

$

$

Not available

8

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 9

0

10

Cub Cadet HA-14300

Plate, Anchor

$

$

Not available

11

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3017

Nut, Hex, 3/8-16

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 X 1.25 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 712-0206

Nut, Hex, 1/2-13

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet HA-GM180177

Screw, Hex Cap, 1/2-13 X 1.5 Lg GR5

$

$

Currently unavailable

18

Cub Cadet HA-14294

Frame, Rear Mounting

$

$

Not available

19

Cub Cadet HA-12359

Pin, Locating

$

$

Not available

20

Cub Cadet HA-3341

Pin, Quick Attach

$

$

Not available

21

Cub Cadet HA-12751

Frame, Front Mounting

$

$

Not available

22

Cub Cadet HA-GM180177

Screw, Hex Cap, 1/2-13 X 1.5 Lg GR5

$

$

Currently unavailable

23

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, only 2 left!

0

24

Cub Cadet 736-0179

Washer, Flat, .531 X 1.25 X .100 Thk

$4.99

$

In Stock, only 2 left!

0

25

Cub Cadet HA-19321

Arm Assembly, Lift

$

$

Currently unavailable

26

Cub Cadet HA-12782

Extension, Lift

$

$

Not available

27

Cub Cadet HA-4570

Screw, Hex Cap

$

$

Not available

28

Cub Cadet 712-3034

Nut, Hex Jam, 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 710-3126

Screw, Hex Patch Cap, 1/2-13 X 1.0 Lg GR5

$6.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet HA-12776

Crank Assembly, Bell

$

$

Not available

32

Cub Cadet HA-12869

Rod Assembly, Control

$

$

Not available

33

Cub Cadet HA-3430

Pin, Quick Attach
(Superseded to AF-47134)

$6.99

$

In Stock, only 1 left!

0

34

Cub Cadet HA-12769

Rod, Pivot

$

$

Not available

35

Cub Cadet HA-12774

Cable, Pivot Control

$

$

Not available

36

Cub Cadet HA-12771

Rod, Pivot Control

$

$

Not available

37

Cub Cadet HA-9492

Anchor

$

$

Not available

38

Cub Cadet HA-12766

Arm Assembly, Pivot

$

$

Not available

39

Cub Cadet HA-GM137258

Pin, Cotter, 3/6 Dia X 1.75 Lg

$

$

Not available

40

Cub Cadet HA-12772

Handle Assy, Pivot Control

$

$

Not available

41

Cub Cadet 736-0272

Washer, Flat, .500 X 1.0 X .060 Thk

$4.99

$

In Stock, Qty 20+

0

42

Cub Cadet HA-GM456151

Washer, Flat, .812 X 1.5 X .134 Thk

$

$

Not available

43

Cub Cadet HA-14297

Strap, Cross Shaft Support

$

$

Not available

44

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 X 1.25 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, only 2 left!

0

46

Cub Cadet 712-0206

Nut, Hex, 1/2-13

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet HA-14287

Tube, Lift

Variations

Cub Cadet HA-14287-0637

TUBE-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

48

Cub Cadet HA-11018

Spacer, Lift Knob

$

$

Not available
