401 (190-401-100) - Cub Cadet 54" Snow Blade att Blade Assembly 1991 & After Parts Diagram

54" Snow Blade

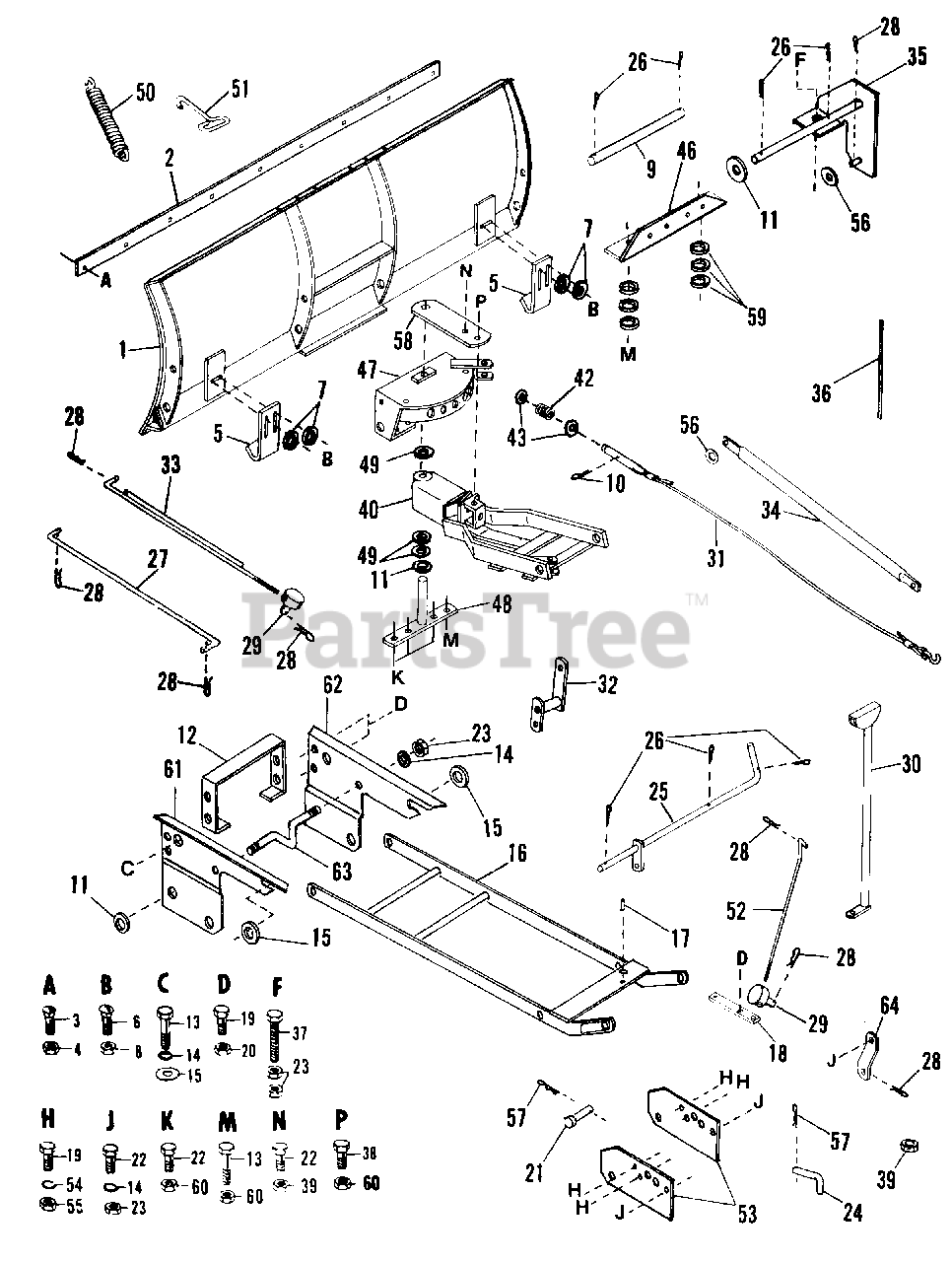

Blade Assembly 1991 & After Parts Diagram

  • Title

1

Cub Cadet 12329

Blade Assembly

$

$

Currently unavailable

2

Cub Cadet 12355

Cutting Edge Blade

$

$

Currently unavailable

3

Cub Cadet GM-126358

Bolt-5/16-18 x 1" Carriage

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

4

Cub Cadet GM-271184

Nut & Lock Washer Assembly-5/16-18

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

5

Cub Cadet 12356

Skid Shoe

$

$

Currently unavailable

6

Cub Cadet GM-126402

Bolt-3/8-16 x 1 1/4 Carriage

$

$

Currently unavailable

7

Cub Cadet GM-120388

Washer - 7/16" x 1" x .083 Flat

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

8

Cub Cadet GM-271190

Nut 4 Lock Washer Assembly-3/8-16 Hex

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

9

Cub Cadet 12359

Locating Pin

$

$

Currently unavailable

10

Cub Cadet GM-120123

Cotter Pin

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

11

Cub Cadet GM-456151

Washer-13/16" x 1-1/2" x .134 Flat

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

12

Cub Cadet 19637

Front Mounting Frame Assembly

$

$

Currently unavailable

13

Cub Cadet GM-180177

Bolt - 1/2-13 x 1-1/2" Hex Head

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

14

Cub Cadet GM-120384

Washer -1/2" Med Lock

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

15

Cub Cadet GM-120389

Washer - 1/2" x 1-1/4" x .083 Flat

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

16

Cub Cadet 19639

Mounting Frame Assembly

$

$

Currently unavailable

17

Cub Cadet GM-455481

Roll Pin

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

18

Cub Cadet 12770

Pivot Control Strap

$

$

Currently unavailable

19

Cub Cadet GM-180122

Bolt - 3/8-16 x 1" Hex Head

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

20

Cub Cadet GM9413534

Nut - 3/8-16 Hex Lock

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

21

Cub Cadet 12183

Clevis Pin

$

$

Currently unavailable

22

Cub Cadet GM-180175

Bolt - 1/2-13 x 1-1/4" Hex Head

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

23

Cub Cadet GM-120378

Nut - 1/2-13 Light Hex

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

24

Cub Cadet 9415

Locating Pin

$

$

Currently unavailable

25

Cub Cadet 19643

Pivot Arm Assembly

$

$

Currently unavailable

26

Cub Cadet GM-137258

Cotter Pin - 3/16" x 1-3/4"

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

27

Cub Cadet 12769

Pivot Rod

$

$

Currently unavailable

28

Cub Cadet 3430

Hair Cotter Pin

$

$

Currently unavailable

29

Cub Cadet 9492

Anchor

$

$

Currently unavailable

30

Cub Cadet 12772

Pivot Control Handle Assembly

$

$

Currently unavailable

31

Cub Cadet 18857

Pivot Control Cable & Lock Pin Assembly

$

$

Currently unavailable

32

Cub Cadet 12776

Bell Crank Assembly

$

$

Currently unavailable

33

Cub Cadet 12869

Pivot Control Rod Assembly

$

$

Currently unavailable

34

Cub Cadet 14287

Lift Tube

$

$

Currently unavailable

35

Cub Cadet 19322

Lift Are Assembly

$

$

Currently unavailable

36

Cub Cadet 10352

Plastic Cable
(Superseded to 690-202-0016)

$

$

Not available

37

Cub Cadet 4570

Bolt - 1/2-13 x 2" Full Thread

$

$

Currently unavailable

38

Cub Cadet GM-180173

Bolt - 1/2-13 x 1" Hex Head

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

39

Cub Cadet GM-120238

Nut - 1/2-13 Half Hex

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

40

Cub Cadet 18238

"A" Frame Assy

$

$

Currently unavailable

42

Cub Cadet 5681

Spring

$

$

Currently unavailable

43

Cub Cadet GM-110962

Washer - 21/32" x 1-5/16" x .095 Flat

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

46

Cub Cadet 13385

Pivot Stop Angle

$

$

Currently unavailable

47

Cub Cadet 13387

Pivot Box Assembly

$

$

Currently unavailable

48

Cub Cadet 12716

Pivot Pin Assembly

$

$

Currently unavailable

49

Cub Cadet 3396

Washer

$

$

Currently unavailable

50

Cub Cadet 12383

Breakover Spring

$

$

Currently unavailable

51

Cub Cadet 12846

Spring Mounting Hook

$

$

Currently unavailable

52

Cub Cadet 12771

Pivot Control Rod

$

$

Currently unavailable

53

Cub Cadet 20277

Anchor Plate

$

$

Currently unavailable

54

Cub Cadet GM-120382

Washer - 3/8" Medium Lock

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

55

Cub Cadet GM-120377

Nut - 3/8-16 Light Hex

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

56

Cub Cadet GM-120396

Washer - 17/32" x 1-1/16" x .095 Flat

Note: Standard Hardware - Purchase Locally

$

$

Currently unavailable

57

Cub Cadet 3341

Hair Cotter Pin

$

$

Currently unavailable

58

Cub Cadet 13384

Strap

$

$

Currently unavailable

59

Cub Cadet 14232

Washer

$

$

Currently unavailable

60

Cub Cadet GM-9414074

Nut - 1/2-13 Hex Lock

$

$

Currently unavailable

61

Cub Cadet 12542

Side Mounting Plate LH

$

$

Currently unavailable

62

Cub Cadet 12541

Side Mounting Plate RH

$

$

Currently unavailable

63

Cub Cadet 19636

Front Mounting Frame Rod

$

$

Currently unavailable

64

Cub Cadet 14297

Cross Shaft Support Strap

$

$

Currently unavailable

?NP

Cub Cadet 12893

Bag of Parts

Note: (For Hydraulic Angle Kit)

$

$

Currently unavailable

?NP

Cub Cadet 19647

Manual

$

$

Currently unavailable
