400Z (B 2748) (5900528) - Snapper 48" Zero-Turn Mower, 27hp Wheel & Tire Group Parts Diagram

48" Zero-Turn Mower, 27hp

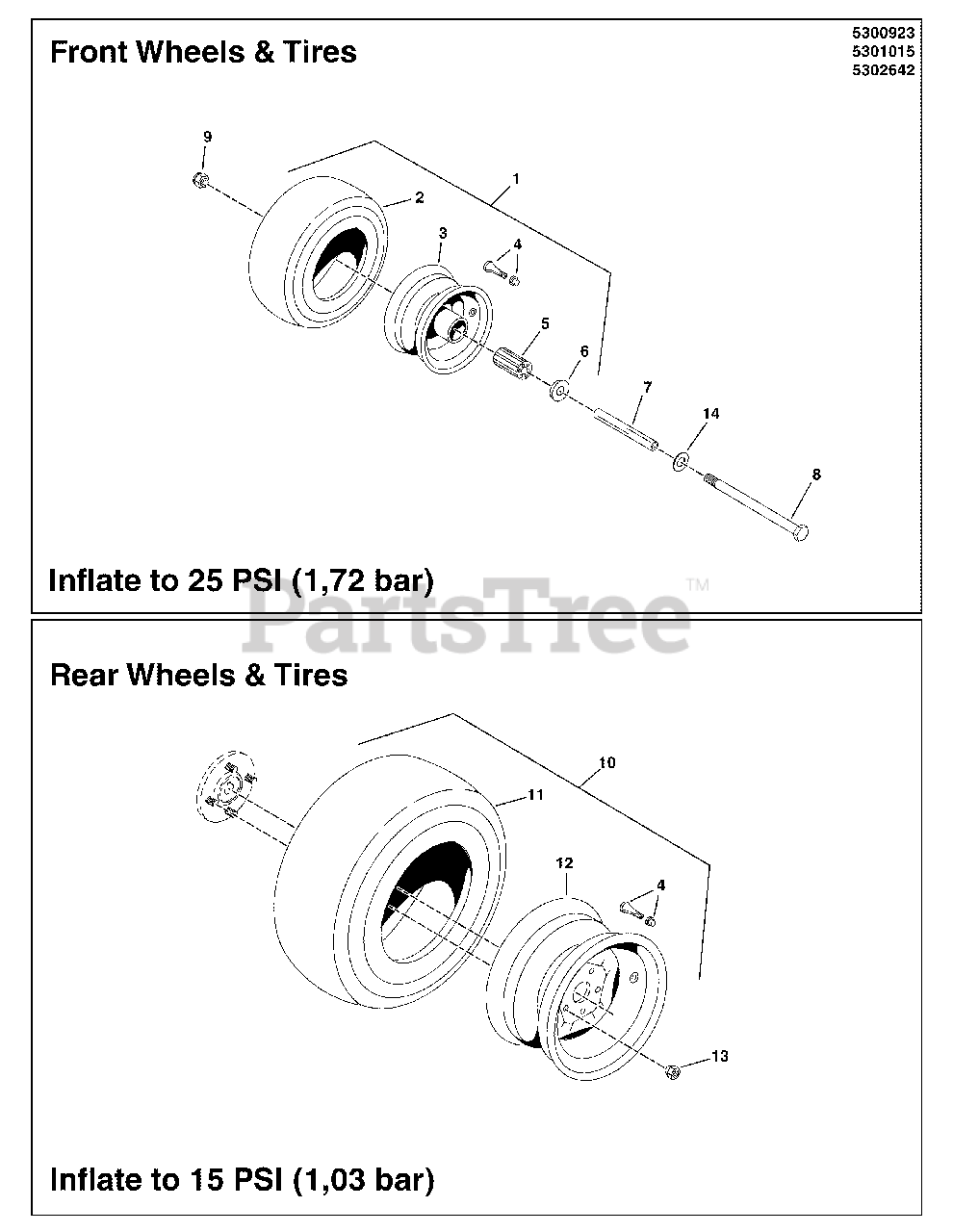

Wheel & Tire Group Parts Diagram

  • Title

1

Snapper 5101418

WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO
(Superseded to 5101418YP)

$127.99

$

In Stock, Qty 11

0

2

Snapper 5022433X1

TIRE, FRONT, 11 X 4.0 - 5 (SV)

Note: (SV)

$70.99

$

Usually ships in 2-12 days

0

3

Snapper 5101418X2

WHEEL ASSEMBLY, 11 X 4.0 - 5 TIRE CMP (SV)

Note: (SV)

$

$

Currently unavailable

4

Snapper 2172353

VALVE STEM & CAP-AIR .453DIA 0.88LG (SV)
(Superseded to 7012234SM)

Note: (SV)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 5101418X1

BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV)
(Superseded to 5101418X1YP)

Note: (SV)

$28.99

$

In Stock, Qty 14

0

6

Snapper 5021043

RETAINER, BEARING (TWO PER TIRE)(SV)

Note: (SV)

$6.99

$

Usually ships in 2-12 days

0

7

Snapper 5045996

AXLE, Front Caster
(Superseded to 5045996SM)

$15.99

$

In Stock, Qty 18

0

8

Snapper 5025017X56

BOLT, HEX, 1/2-13 X 7, GD 8, YZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, Qty 8

0

9

Snapper 5025396

NUT, 1/2-13 HEX NYLOCK FLANGE
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 5101068

TIRE ASSM, 20 X 7 - 10, TURF, 4 BOLT
(Superseded to 5101068FS)

Note: (36" Models)

$284.99

$

Usually ships in 2-12 days

0

10

Snapper 5103019

TIRE ASM, REAR, 20 X 10.0 X 10
(Superseded to 5103019YP)

Note: (48" Models S/N: 2014755821 & Above)

$373.99

$

Usually ships in 2-12 days

0

10

Snapper 5101375

TIRE ASM, REAR, 20 X 10.0 X 10
(Superseded to 5103019)

Note: (48" Models S/N: 2014755820 & Below)

$373.99

$

Usually ships in 2-12 days

0

11

Snapper 5101068X1

TIRE, 20 X 7 -10 NHS, TURF MASTER

Note: (SV - 36" Models)

$225.99

$

Usually ships in 2-12 days

0

11

Snapper 5101345X1

TIRE, REAR, 20 X 10.0 X 10
(Superseded to 5101345X1YP)

Note: (SV - 48" Models)

$262.99

$

Usually ships in 2-12 days

0

12

Snapper 5101068X2

WHEEL, 10 X 6.00 4/4 SOLID, F237

Note: (SV - 36" Models)

$228.99

$

Usually ships in 2-12 days

0

12

Snapper 5102329X2

WHEEL, 10X7.00 4/4 SOLID F237 2.625 OS (SV)

Note: (SV - 48" Models)

$

$

Currently unavailable

13

Snapper 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0
