400Z (B 2748) (5900528) - Snapper 48" Zero-Turn Mower, 27hp Parking Brake Group Parts Diagram

48" Zero-Turn Mower, 27hp

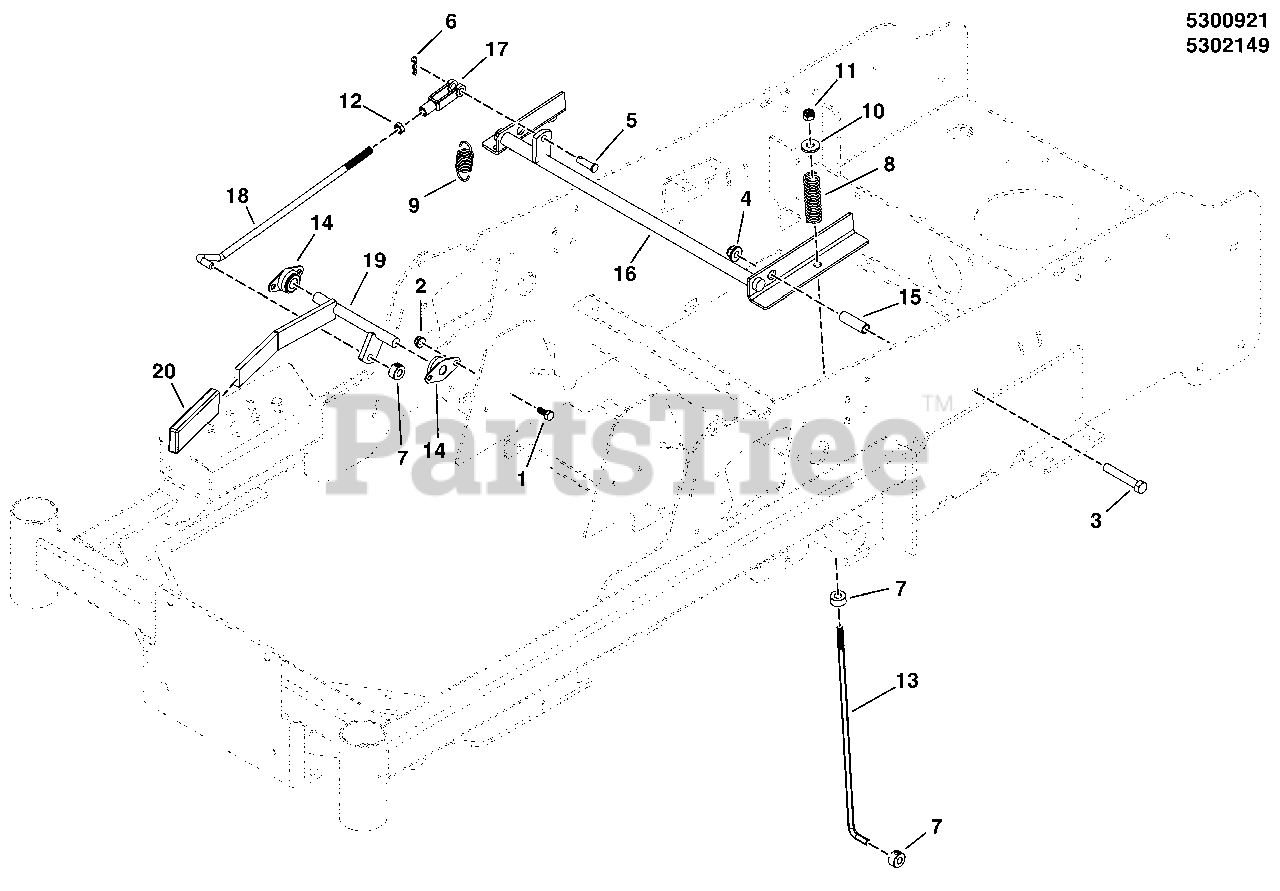

Parking Brake Group Parts Diagram

  • Title

1

Snapper 80002437

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

2

Snapper 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

3

Snapper 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 5025213X8

PIN, CLEVIS, 5/16 X 1, PLATED
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

6

Snapper 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

7

Snapper 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

8

Snapper 5021102

SPRING-COMP, .594ID X 2.68LG X .080WR
(Superseded to 5021102SM)

$7.49

$

Usually ships in 2-12 days

0

9

Snapper 5010213

SPRING-EXT, .740 ODX2.025LGX.072WR, BLK
(Superseded to 5010213YP)

$14.99

$

Usually ships in 2-12 days

0

10

Snapper 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 5025045

NUT, Hex, Nylon Lock, 5/16-24
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

12

Snapper 5023216

NUT, Hex Jam, 5/16-24
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

13

Snapper 5101058

ROD, BRAKE CTRL, LOWER - CONZ
(Superseded to 5101058SM)

$5.49

$

Usually ships in 2-12 days

0

14

Snapper 5101123

BEARING, 1/2 FLANGED, PLASTIC BALL
(Superseded to 5101123SM)

$5.99

$

Usually ships in 2-12 days

0

15

Snapper 5044992

SPACER, .38 x .50 x 1.56
(Superseded to 5044992SM)

$5.99

$

In Stock, only 2 left!

0

16

Snapper 5402914A

WELD, BRAKE SHAFT - BLK
(Superseded to 5402914AYP)

$107.99

$

Usually ships in 2-12 days

0

17

Snapper 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

18

Snapper 5101116

ROD, PULLER ROD
(Superseded to 5101116SM)

$16.99

$

Usually ships in 2-12 days

0

19

Snapper 5406620A

WELD, BRAKE SHAFT, HANDLE - BLK
(Superseded to 5406620AYP)

Note: (S/N: 2014755821 & Above)

$51.99

$

Usually ships in 2-12 days

0

19

Snapper 5402903D

WELD, BRAKE SHAFT, HANDLE - RED
(Superseded to 5402903DYP)

Note: (S/N: 2014755820 & Below)

$60.99

$

Usually ships in 2-12 days

0

20

Snapper 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0
