400Z (B 2748) (5900528) - Snapper 48" Zero-Turn Mower, 27hp Electrical Group S/N: 2016499706 & Below Parts Diagram

48" Zero-Turn Mower, 27hp

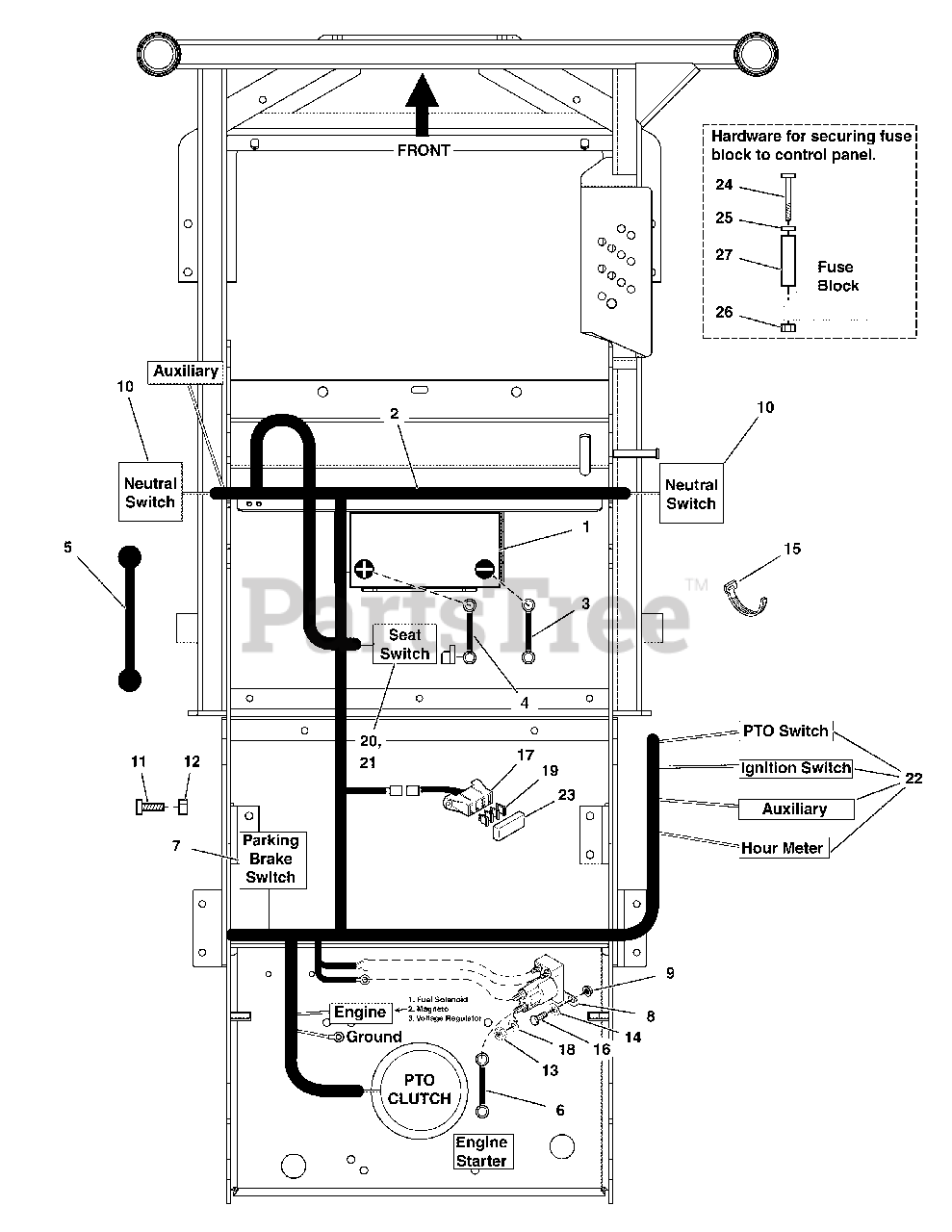

Electrical Group S/N: 2016499706 & Below Parts Diagram

  • Title

1

BATTERY

Note: (Refer to Note: *)

$

$

Not available

2

Snapper 5406666YP

WIRE HARNESS

$495.99

$

Usually ships in 2-12 days

0

3

Snapper 5101396YP

BATTERY CABLE, NEG, 30, 1/4-5/16

$35.99

$

Usually ships in 2-12 days

0

4

Snapper 5021542SM

CABLE, #6 X 30" LONG, Ring Terminal

$29.99

$

Usually ships in 2-12 days

0

5

Snapper 1722009SM

STRAP, Rubber, 13"

$10.99

$

In Stock, only 1 left!

0

6

Snapper 5044732YP

BATTERY CABLE, POSITIVE, 8

$10.99

$

Usually ships in 2-12 days

0

7

Snapper 1717050SM

SWITCH, Push Button, N.O . N.C, Double Pole, Grey

$17.99

$

In Stock, Qty 20+

0

8

Snapper 1724815SM

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

9

Snapper 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 6

0

10

Snapper 5101280YP

SWITCH, LOW PROF, NC/NO

$30.99

$

In Stock, Qty 9

0

11

Snapper 5025179X4YP

SCREW- #10-24 X 1/2 ROUND PHILLIPS
(Superseded to 5025179X4SM)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 5025029SM

NUT, Hex, #10-24

$2.99

$

Usually ships in 2-12 days

0

13

Snapper 5023216SM

NUT, HEX JAM, 5/16-24 (SV)

$2.99

$

Usually ships in 2-12 days

0

14

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

15

Snapper 5021029SM

TIE, SELF-LOCKING, 12"

$

$

Not available

16

Snapper 703338

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR5

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 5401328SM

WIRE HARNESS FUSE BL

$73.99

$

In Stock, only 1 left!

0

18

Snapper 5023217SM

WASHER, LIGHT LOCK, 5/16 (SV)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 5021603SM

FUSE, ATO, 20 AMP (SV)

$4.99

$

In Stock, only 2 left!

0

20

Snapper 5100540YP

SWITCH, NC, W/ BOLT-IN BASE

$32.99

$

In Stock, only 1 left!

0

21

Snapper 5100541YP

SWITCH, NC, W/ TWIST-IN BASE

$20.99

$

In Stock, only 1 left!

0

22

Refer to: Instrument Control Panel Group

$

$

Not available

23

Snapper 5022805SM

COVER, VINYL FUSEBLOCK

$6.49

$

Usually ships in 2-12 days

0

24

Snapper 5025270X16YP

SCREW, #10-24 X 2 ROUND PHILLIPS

$

$

Not available

25

Snapper 5023499SM

WASHER, #10 SAE

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 5025271YP

NUT, #10-24 HEX NYLON LOCK
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

27

Snapper 5061763YP

SPACER, .20 X .38 X 1.25

$

$

Not available
