400Z (B 2448) (5901275) - Snapper 48" Zero-Turn Mower, 24hp Fuel Tank & Mount Group - Single Tank Parts Diagram

48" Zero-Turn Mower, 24hp

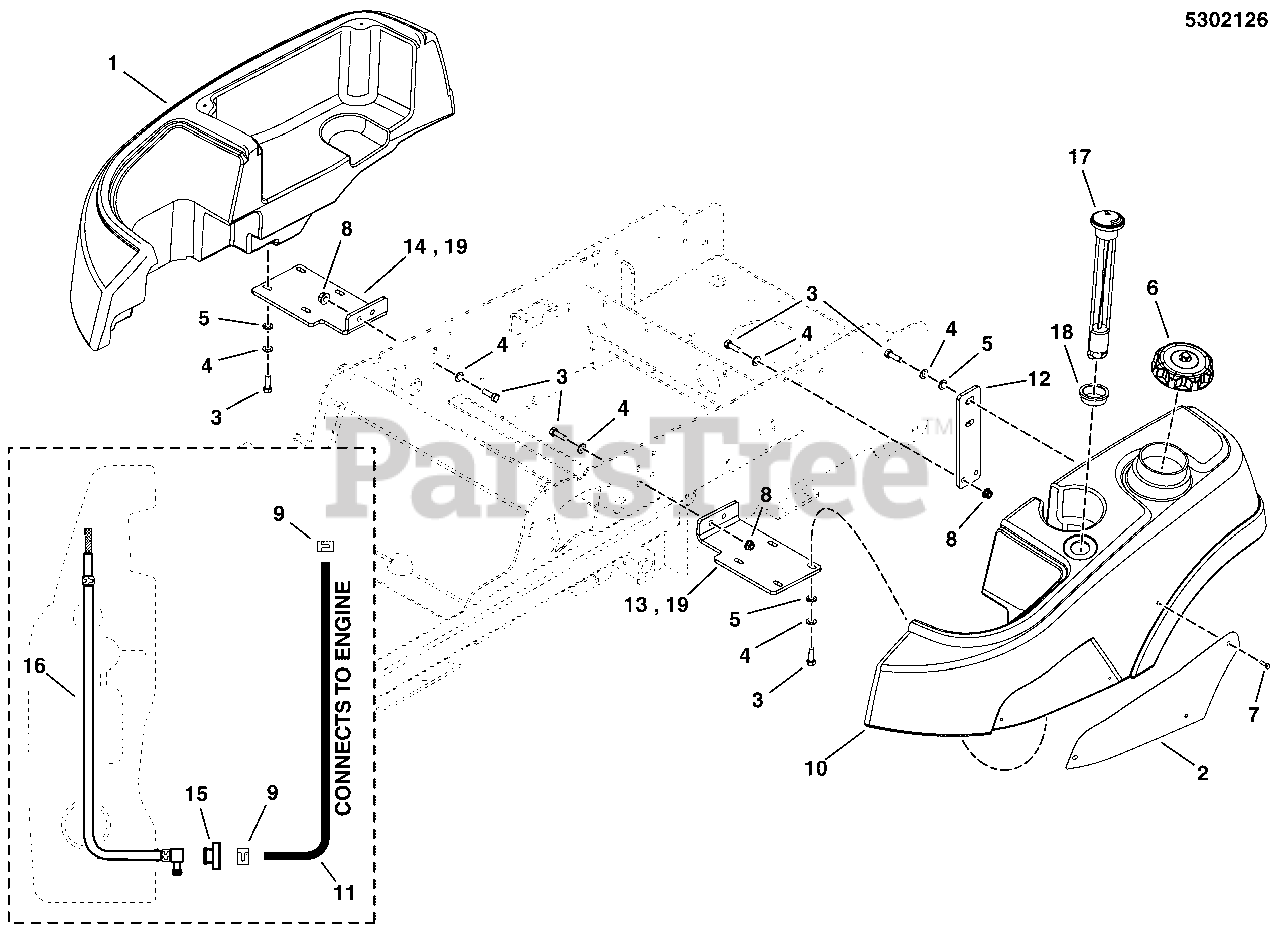

Fuel Tank & Mount Group - Single Tank Parts Diagram

  • Title
1

Snapper 5048752

TANK, FENDER, CONZ, RH
(Superseded to 5048752SM)

$279.99

$

Usually ships in 2-12 days

0

2

Snapper 5048909D

PLATE, FUEL TANK BADGE
(Superseded to 5048909DYP)

$29.99

$

In Stock, only 2 left!

0

3

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

4

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Snapper 5025170

WASHER, 5/16 LOCK YZ
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

6

Snapper 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

7

Snapper 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

8

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

10

Snapper 5103167

TANK, FUEL, LH
(Superseded to 5103167YP)

$557.99

$

Usually ships in 2-12 days

0

11

Snapper 5050831X20

HOSE, 1/4" FUEL, 20.00"
(Superseded to 5050831X20YP)

Note: (Briggs & Stratton Models)

$7.99

$

Usually ships in 2-12 days

0

11

Snapper 5050831X2P5

HOSE, 1/4" FUEL, 2.50"

Note: (Kawasaki Models)

$

$

Currently unavailable

12

Snapper 5406626A

MOUNT, FUEL TANK, REAR - BLK
(Superseded to 5406626AYP)

$11.99

$

Usually ships in 2-12 days

0

13

Snapper 5406627A

MOUNT, FUEL TANK, FRONT - BLK
(Superseded to 5406627AYP)

Note: (S/N: 2016656401 & Below)

$40.99

$

Usually ships in 2-12 days

0

14

Snapper 5406628A

MOUNT, FENDER, FRONT - BLK
(Superseded to 5406628AYP)

Note: (S/N: 2016656401 & Below)

$40.99

$

Usually ships in 2-12 days

0

15

Snapper 5600050

KIT, BUSHING FUEL
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

16

Snapper 5101144

PICKUP TUBE ASM, FUEL TANK

$33.99

$

Usually ships in 2-12 days

0

17

Snapper 5023197SM

GAUGE, FUEL

$57.99

$

In Stock, only 4 left!

0

18

Snapper 5022917X1

GROMMET, FUEL GAUGE
(Superseded to 5022917X1SM)

$6.99

$

In Stock, only 2 left!

0

19

Snapper 5411923A

MOUNT, FENDER, FRONT - BLK

Note: (S/N: 2016656402 & Above)

$

$

Not available
